a) Remove the screws securing the NIC to the enclosure board.

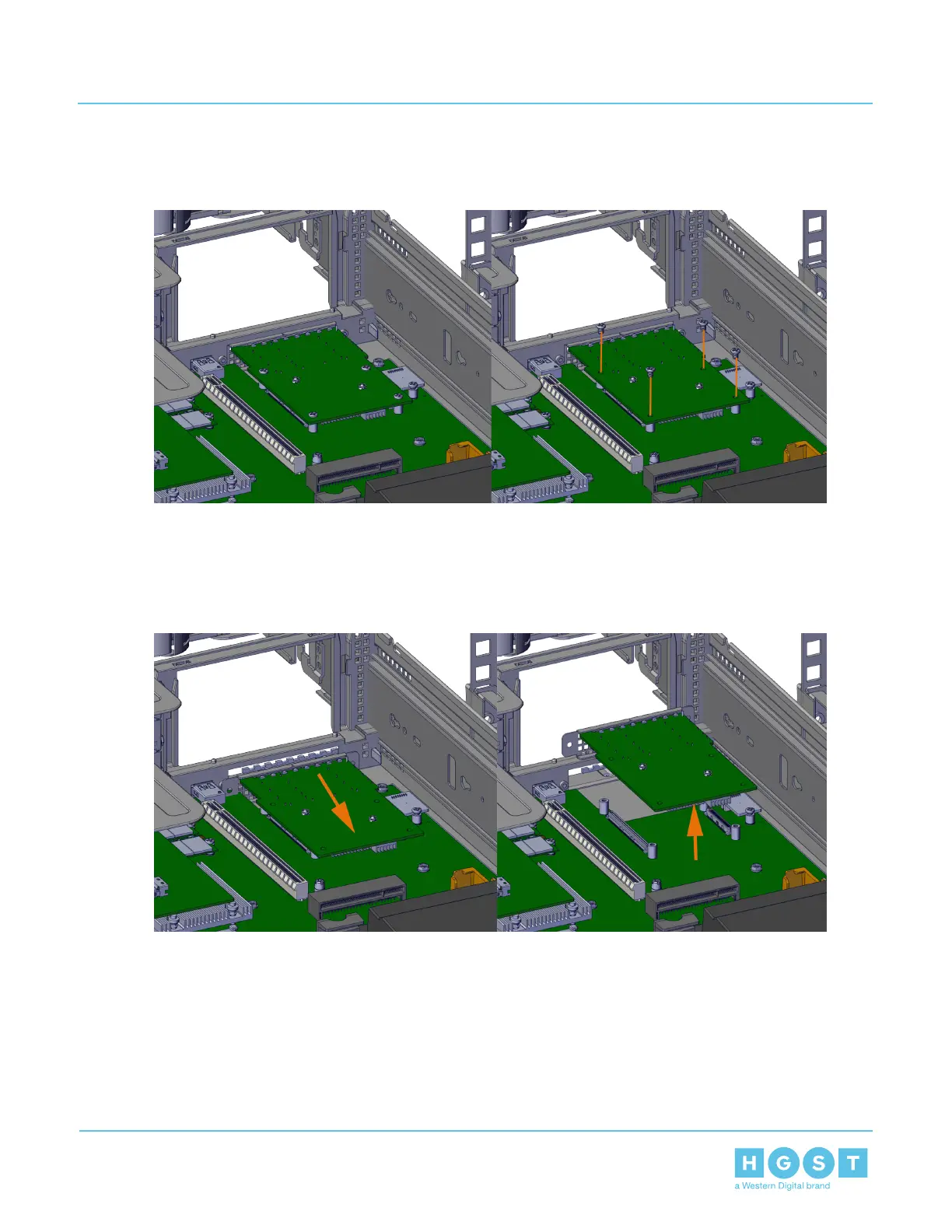

Figure 87: Remove Screws from the NIC
b) From the rear of the enclosure, remove the screws that secure the NIC plate in place and remove the
NIC plate.
c) From inside the enclosure, lift the NIC up and out of the enclosure.
Figure 88: Remove the NIC
6. Install the NIC.
69
3 Part Replacement
User Guide 3.7 NIC Replacement
