a) From the rear of the enclosure, line up the Compute canister with the empty canister slot. Ensure that
the Compute Canister is oriented correctly.
Note: The top Compute Canister is installed with the top cover facing toward the bottom of the
enclosure. The bottom Compute Canister is installed with the top cover facing the top of the
enclosure.
b) Carefully slide the Compute Canister into the slot with both latch handles in the open position until
the latch handles begin to engage.

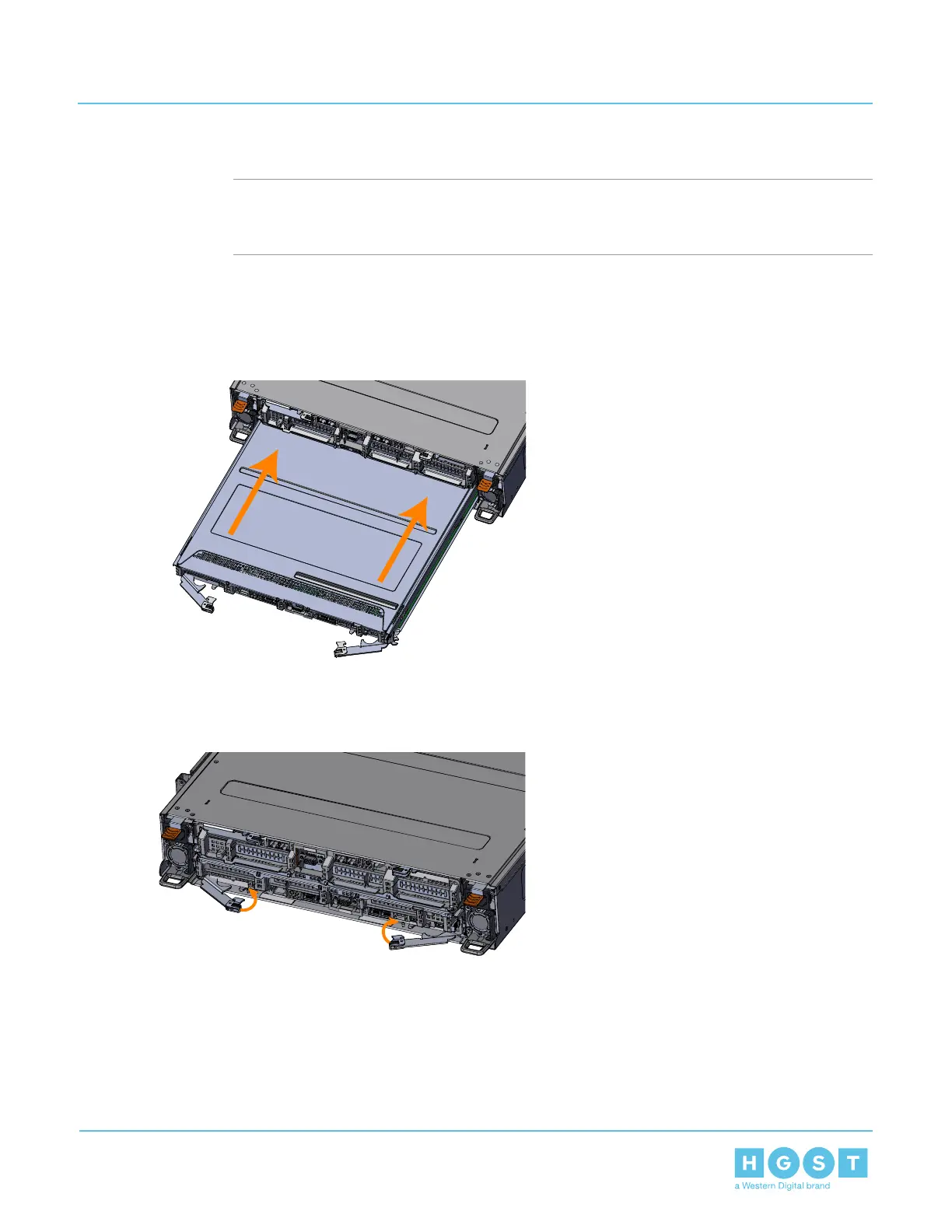

Figure 91: Installing the Compute Canister
c) Rotate the latch handles into the enclosure until the are fully engaged.
Figure 92: Latching the Compute Canister
10. Power On the enclosure and verify it is functioning properly.
a) The enclosure will power itself on about 20 seconds after it is connected to power.
b) Once the enclosure is physically powered-on, from a laptop, log into the Web UI.
c) In the Web UI, click Dashboard.
71
3 Part Replacement
User Guide 3.7 NIC Replacement
