e) Grasp the sheet metal brackets on either side of the front of the enclosure and pull the enclosure until
it is free of the rack mounted rails.

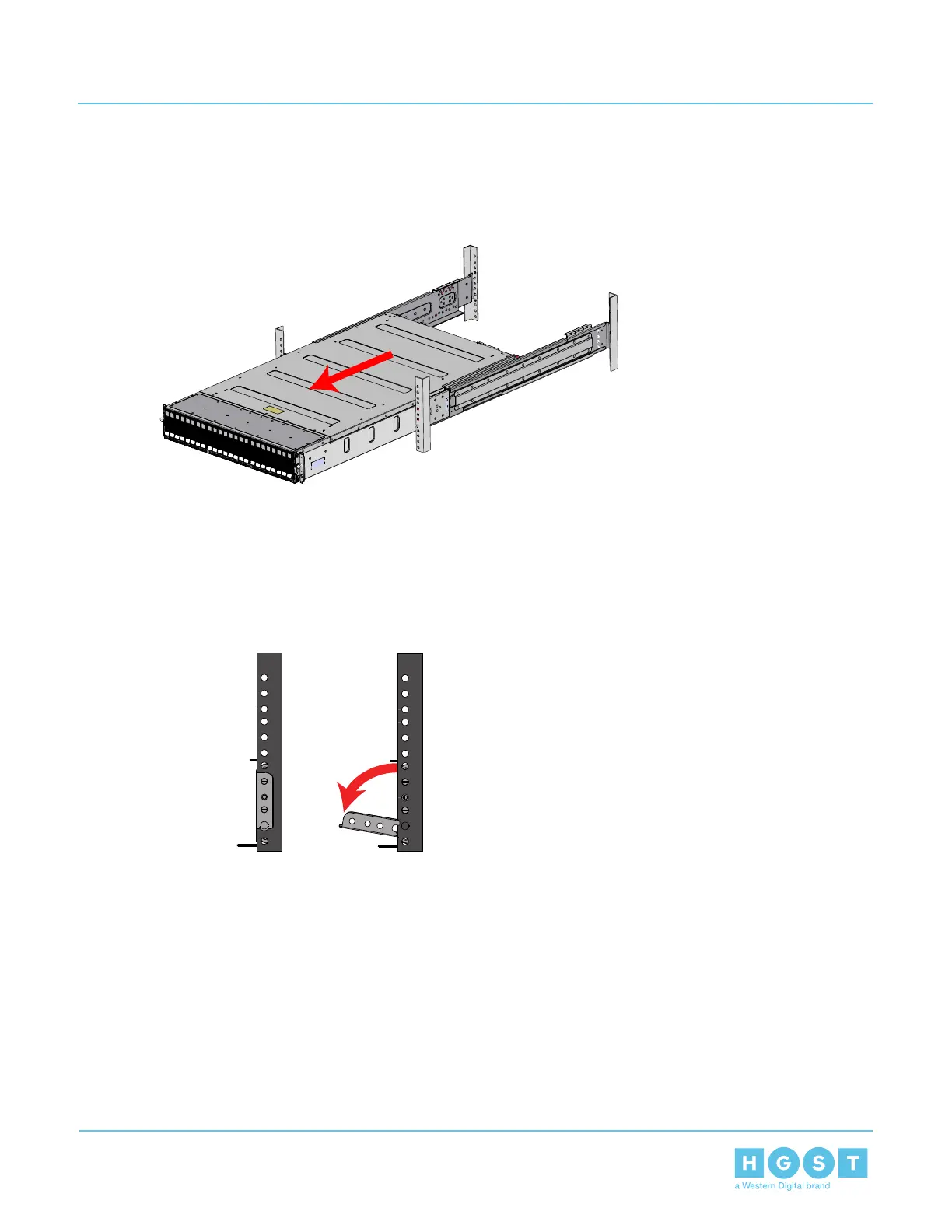

Figure 113: Uninstalling the Enclosure
6. Uninstall the Rails from the rack.
a) Locate the shipping screws that are installed on the rear rail connections.
b) Remove screws from rails using a #1 Philips screwdriver.
c) Open the front latch by pulling the tab and rotating the latch open until it is at 90 degrees.
Figure 114: Rail Unlatched (Right Side)
82
3 Part Replacement
User Guide 3.10 Rails Replacement
