d) Push the front rail connection out of the rack post.

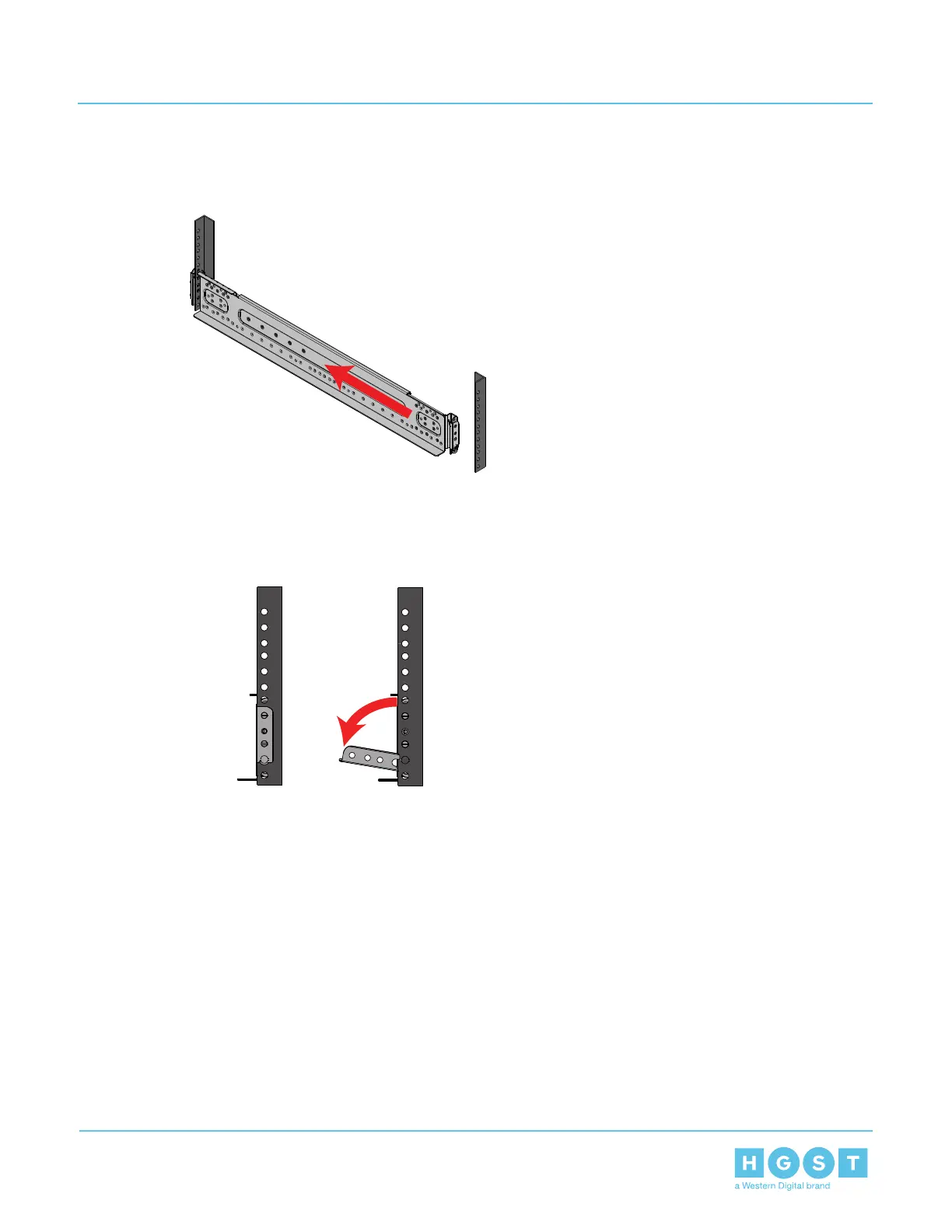

Figure 115: Rail Retracted (Right Side)
e) Carefully grasp the rail and open the rear latch by pulling the tab and rotating the latch open until it is
at 90 degrees.
Figure 116: Rail Unlatched (Right Side)
f) Pull the rear rail connection free of the rack posts.
g) Repeat the previous procedure to uninstall the remaining rail.
7. Install the Rails into the rack.
83
3 Part Replacement
User Guide 3.10 Rails Replacement
