a) Open the front and rear latches by pulling the tab and rotating the latch open until it is at 90 degrees
or greater.

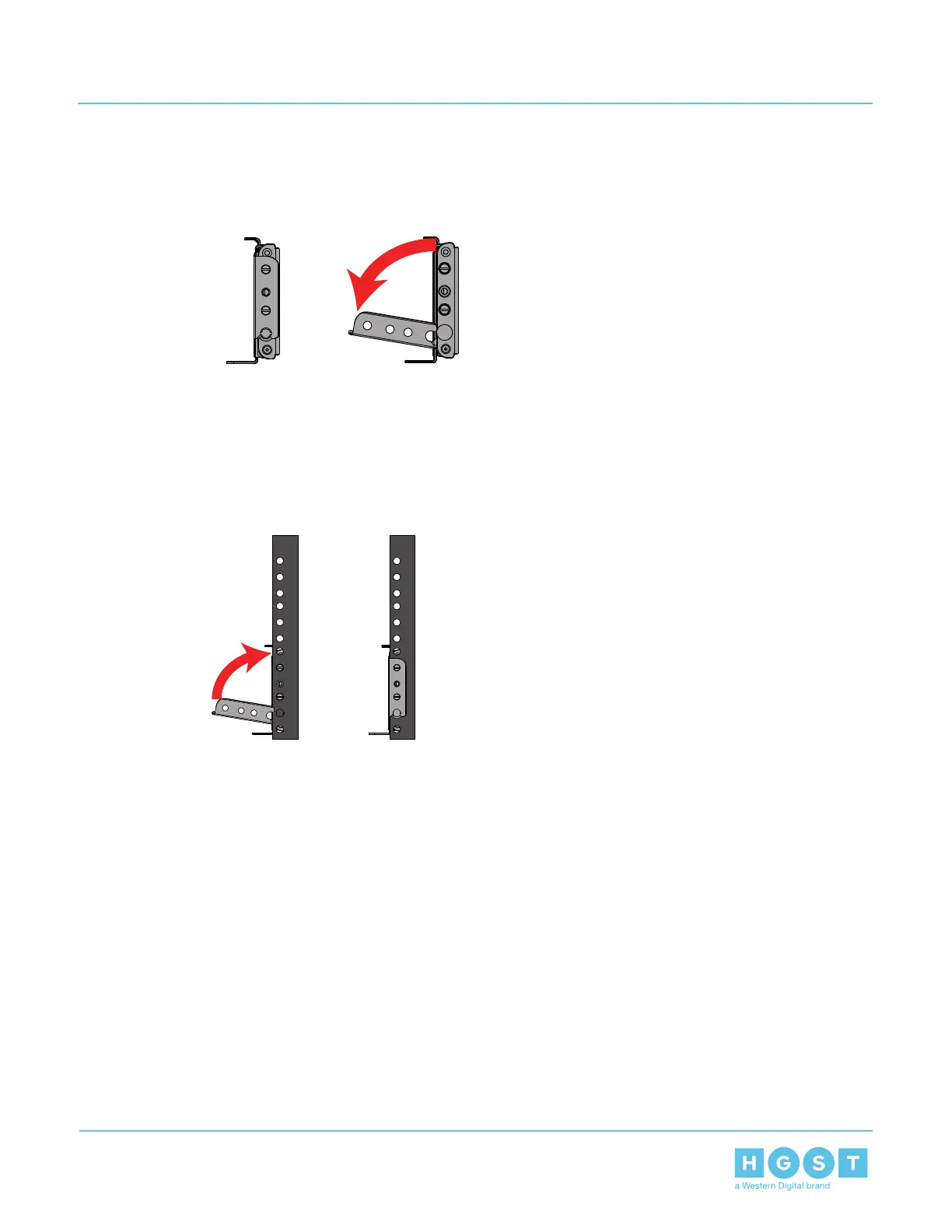

Figure 117: Rail Unlatched (Right Side)
b) Line up the rail on the bottom 1U of the installation location.
c) Place rear pins of the rail into rear rack post.
d) Secure the rear rail attachment to the rear rack post by rotating the rear latch until it clips over the
rear rack post.
Figure 118: Rail Latched (Right Side)
e) Align the front rail attachment with the same 1U space as the rear rail attachment.
84
3 Part Replacement
User Guide 3.10 Rails Replacement
