a) Line up the enclosure with the rack mounted rails and slide it in until the enclosure is seated against
the rack mounted rails.

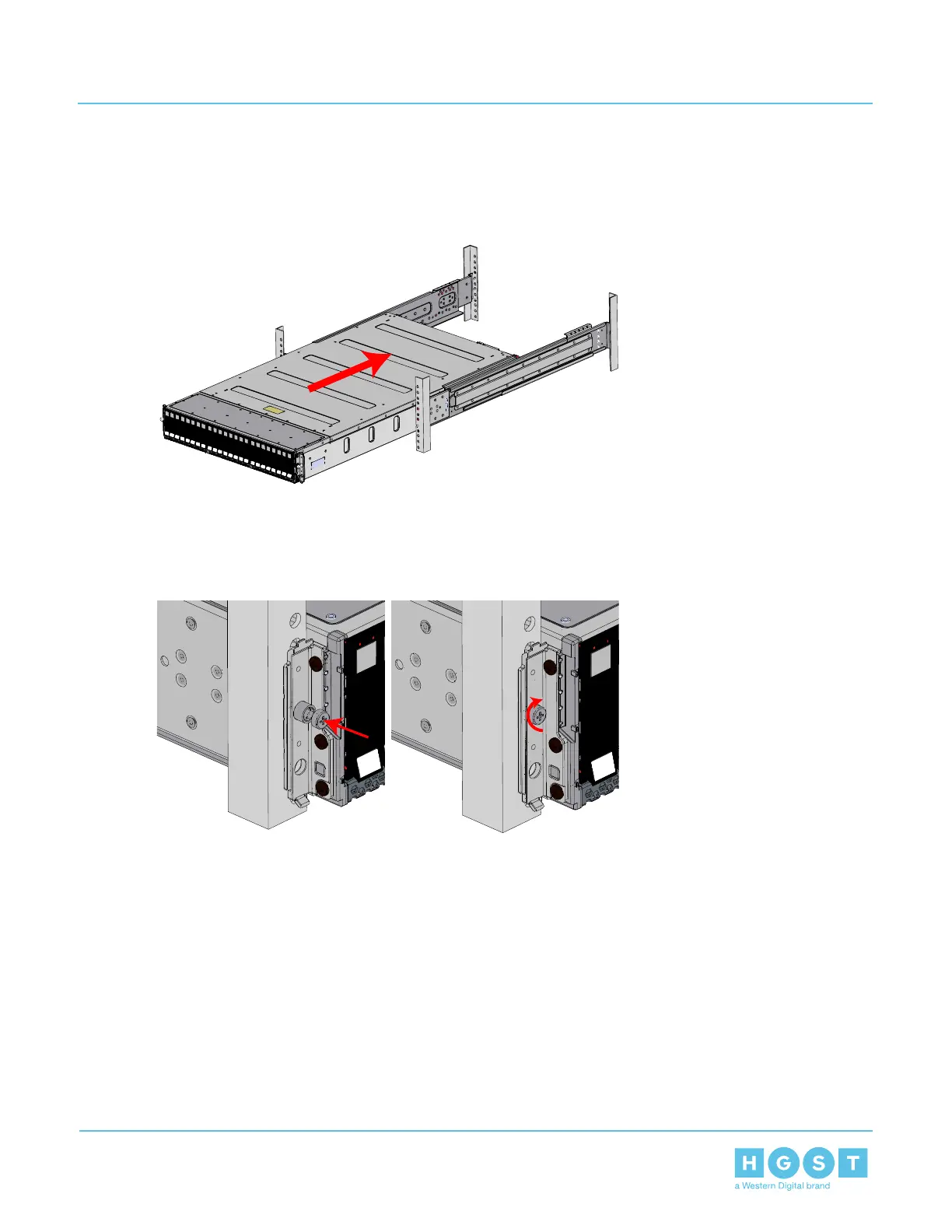

Figure 122: Installing the Enclosure
b) Locate the thumbscrews on either side of the enclosure.
c) Press and tighten the thumbscrews by turning them clockwise until snug.
Figure 123: Tightening the Thumbscrews
86
3 Part Replacement
User Guide 3.10 Rails Replacement
