b) Slowly slide the PIB Canister into the enclosure until the card edge touches the midplane connector.

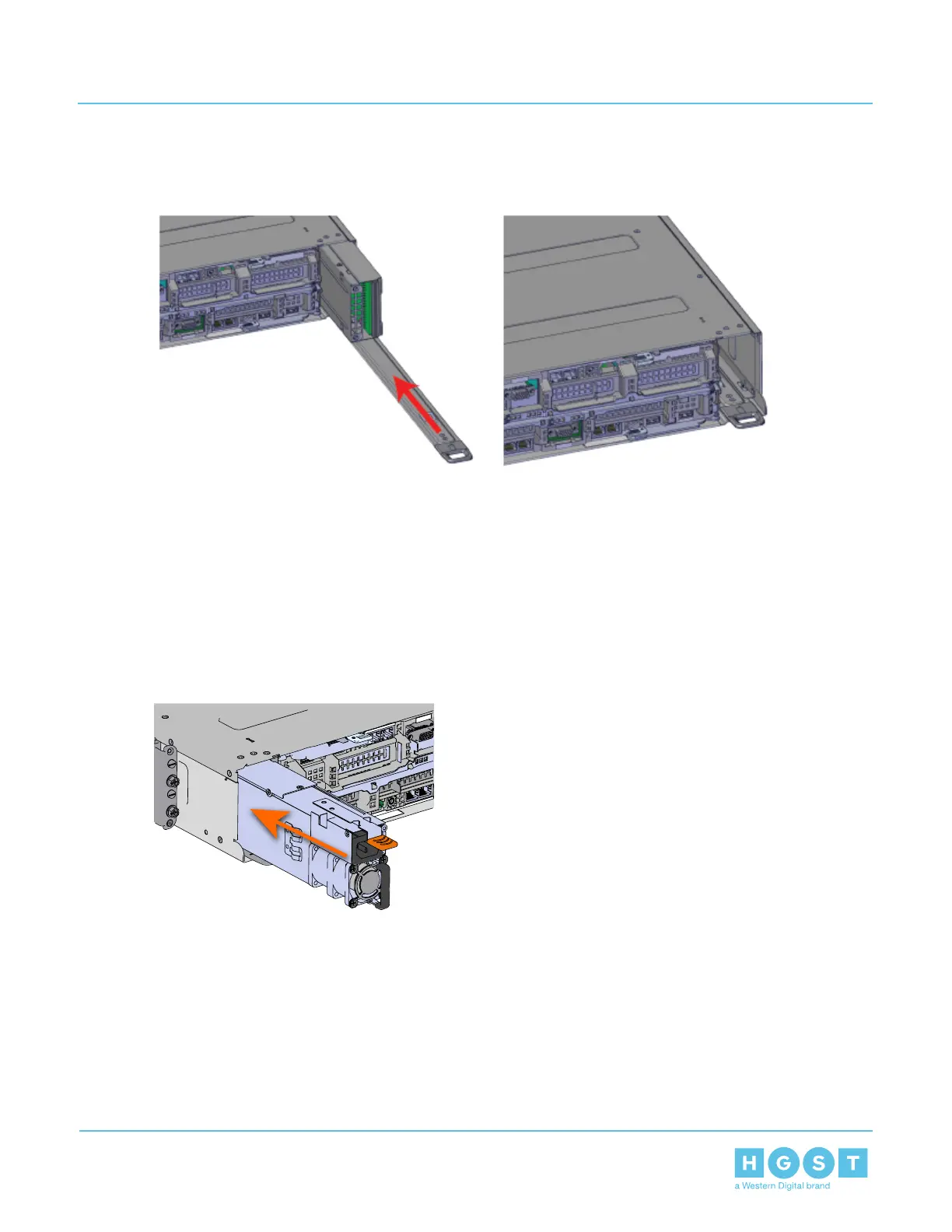

Figure 142: Installing the PIB Canister
c) Press the PIB Canister into the midplane connector.
d) Verify that the PIB Canister is seated snugly.
10. Repeat the previous step to uninstall the remaining PSU.
11. Locate the PSU slots on the rear of the new enclosure chassis.
12. Install the PSU into the chassis.
a) Align the PSU in the orientation shown in the following image.
b) Slide the PSU into the slot until it seats properly into the chassis.
Figure 143: Installing the PSU
c) Plug the power cable into the receptacle at the back of the PSU.
97
3 Part Replacement
User Guide 3.11 Chassis Replacement
