d) Loop the retention clip around the cable and pinch it until the clip catches and locks in place.

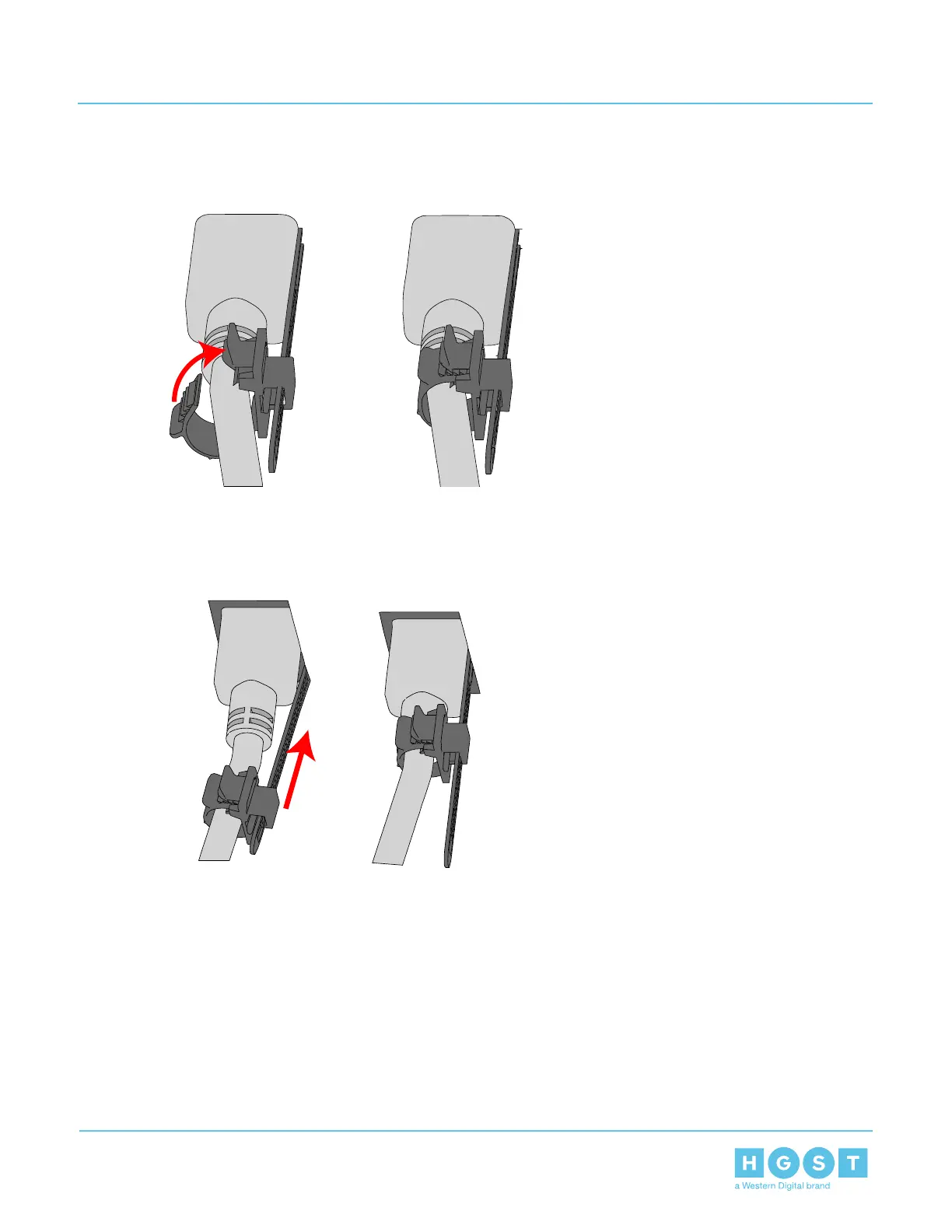

Figure 144: Cable Retention Mechanism
e) Slide the retention clip forward until it stops near the cable connector. Doing this will ensure that the
retention clip functions properly in the event the cable is yanked on for some reason.
Figure 145: Cinching Cable Retention Clip
13. Uninstall the drive assembly.
98
3 Part Replacement
User Guide 3.11 Chassis Replacement
