a) Release the drive assembly by pressing the button on the drive carrier and lower the carrier release
until it stops.

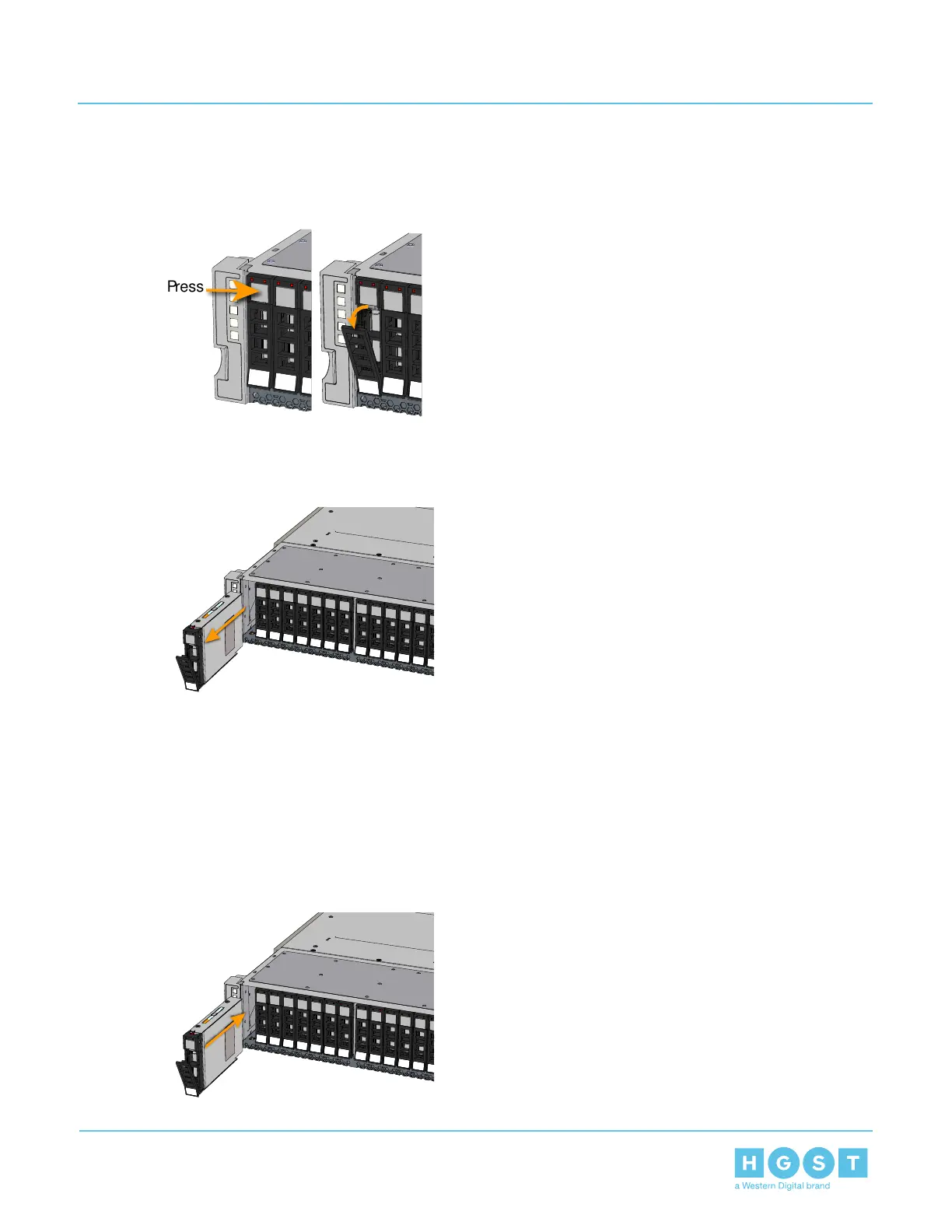

Figure 146: Drive Carrier Release
b) Pull the drive assembly out of the drive slot using the drive carrier release.
Figure 147: Uninstall Drive Assembly
14. Repeat the previous step to uninstall the remaining drives.
15. Locate the drive slots on the front of the new enclosure chassis.
16. Install the drive assembly.
a) Open the drive carrier release by pressing the button on the drive carrier.
b) With the drive carrier button on top, slowly slide the drive into the open drive slot using the drive carrier
release until the drive release engages.
Figure 148: Drive Assembly Installation
99
3 Part Replacement
User Guide 3.11 Chassis Replacement
To Next Page
