1.3 Measurement Overview
1
2
3
4
5
6
7
8
9
10
11
付録
索引
19
3.
Connect the test leads into the
"+" and "-" terminals of the tester
and to the object to be tested.
 2.4 (page 50)
3.2.1 (page 58)
4.
Press the key and set
the test voltage.
 3.2.1 (page 58)
GUARD
terminal

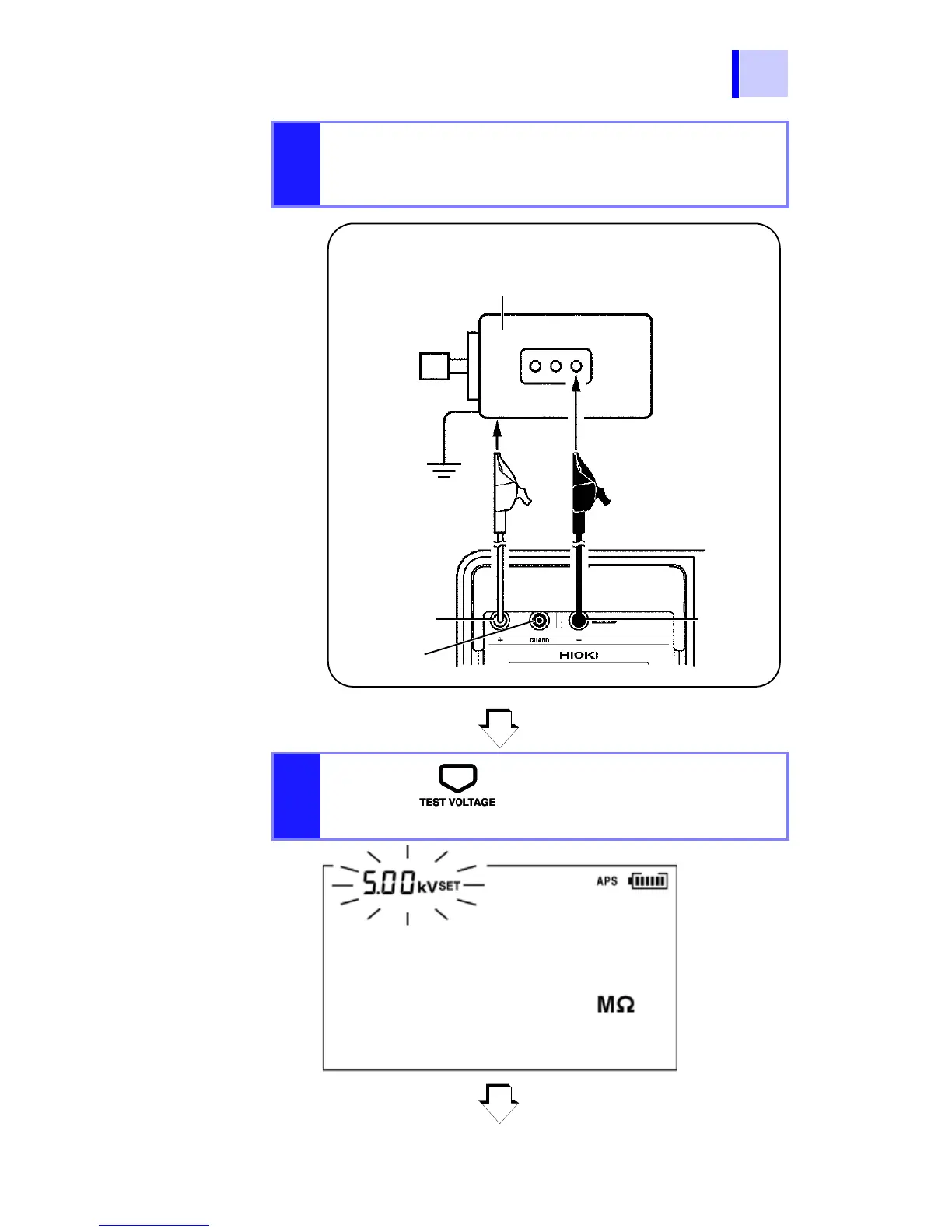

Warning: Confirm that the power supply to the
object under test has been turned off.
Object to be measured (Ex.: Motor)
+ terminal
- terminal
Test lead (Red)
Attach to a metal
chassis or a ground
terminal.
Test lead (Black)
Attach to a metal part
of the power supply
terminal.
