Hioki 3455 - Switching to Leakage Current Indication

3.2 Measuring Insulation Resistance
68
3.2.5 Switching to Leakage Current Indi-
cation
Insulation resistance indication may be
switched to leakage current indication.
Every time the key is pressed, the
indication changes in the order: resistance
 current  PI  resistance  etc.
Every time key is pressed, the indi-
cation changes in the order: resistance

current  resistance  current  etc.

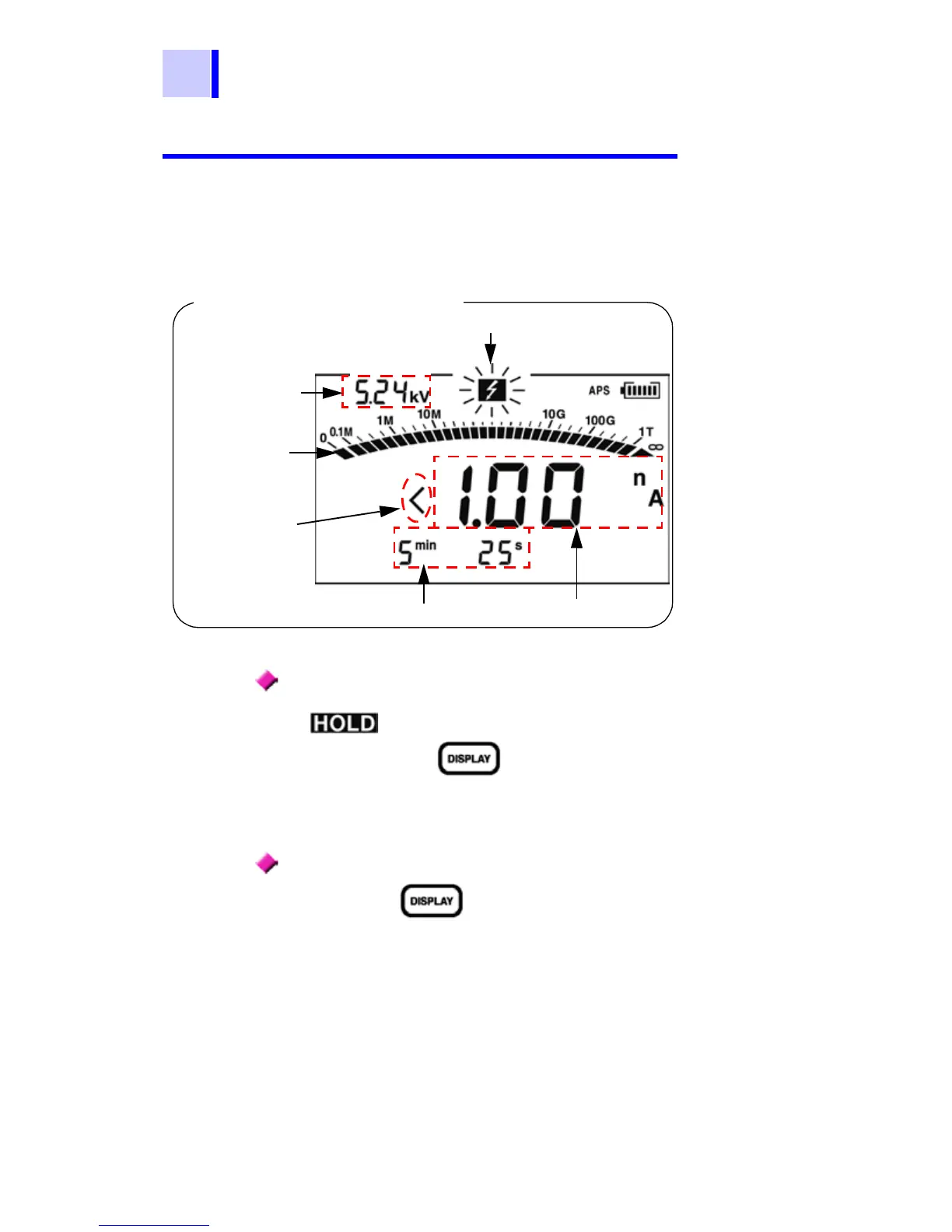

During measurement
Blinking
Elapsed time
Actual output
voltage
The bar graph
shows the
resistance
measurement.
< blinks at
below 1 nA.
Current measurement
Before measuring insulation resistance
and after setting test voltage
( indicator is off.)
Measuring insulation resistance
