3.3 Measuring Voltage
74

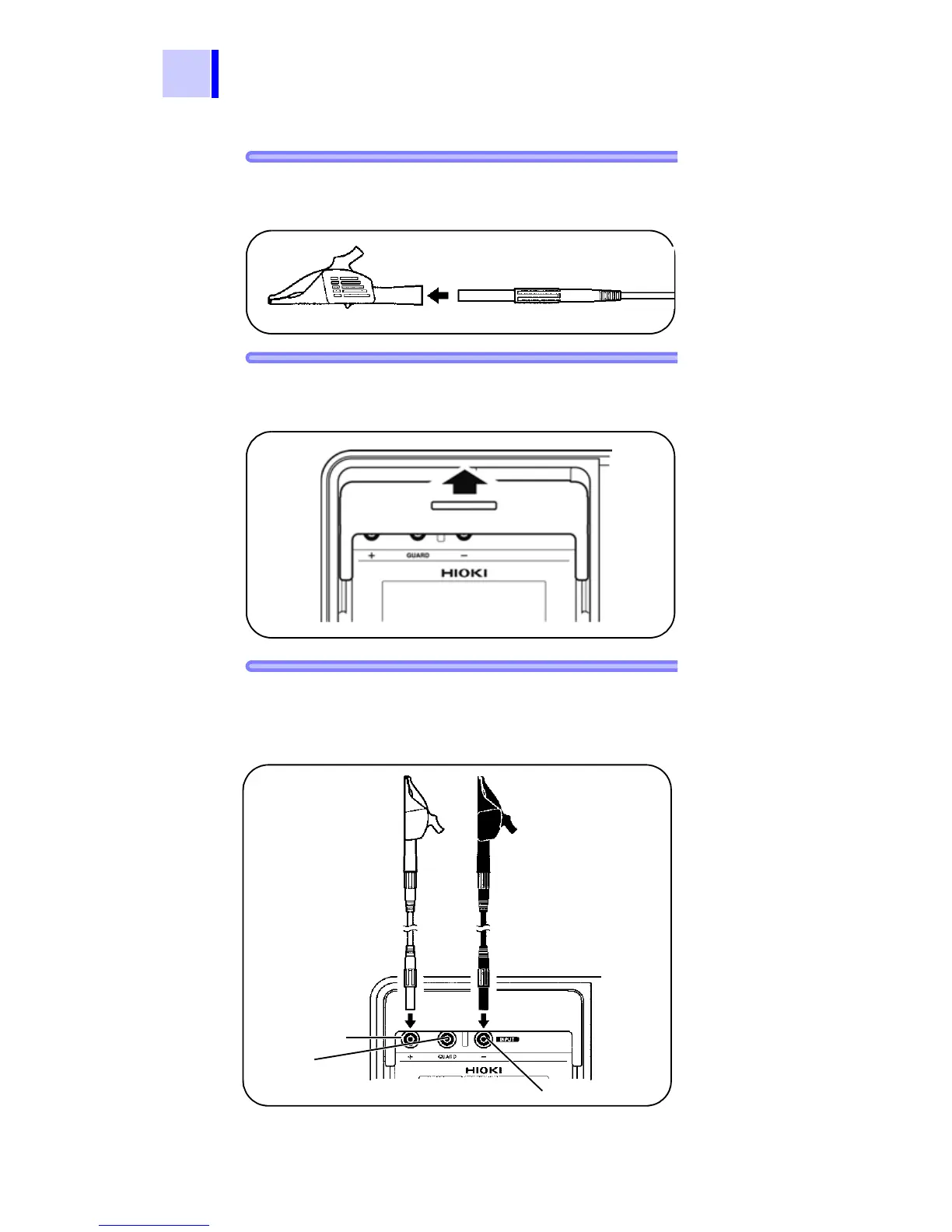

Procedure
1. Connect alligator clips to the ends of test
leads. Insert it fully.
2. Move the shutter to reveal the + and -
terminals.
3. Connect the red test lead to the + termi-
nal and the black test lead to the - termi-
nal. Fully insert the test leads.
+ terminal
- terminal
GUARD
terminal
Test lead (Red) Test lead (Black)
