8.5 Viewing High-order Harmonic Waveforms
131
Chapter 8 Checking Events (EVENT screen)
8
You can read the value and time at the cursor position on waveform graphs.
During recording, the X-axis is automatically scaled so that the full waveform graph fits on the screen.
Once recording has stopped and the X-axis scale has been changed so that the waveforms do not fit on
the screen, you can scroll through the waveform graph by moving left, right, up, and down.

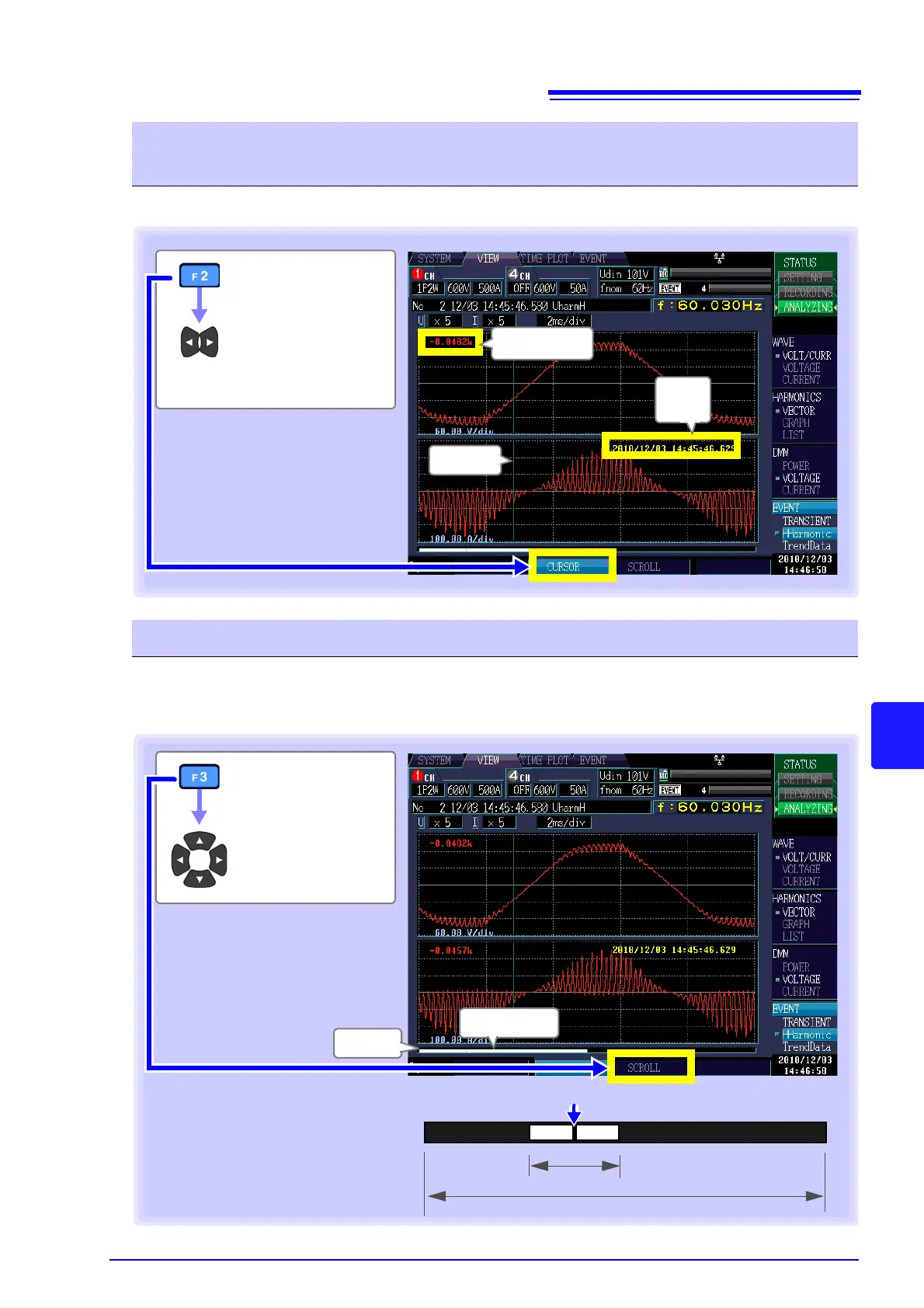

Viewing the value and time at the cursor position (Cursor measure-
ments)
[CURSOR]
Move the vertical
cursor left and
right to read the
display value.
Cursor color
Red: CH1
Yellow: CH2
Blue: CH3
Gray: CH4
Cursor
Cursor
time
Cursor value
Scrolling the waveform
[SCROLL]
Scroll through the
graph
Scroll bar
Display scope
• The display scope on the scroll bar
(shown in white) illustrates which
range of all measurement data is
being shown on the screen.
• The cursor on the scroll bar indi-
cates where the cursor is located
relative to all waveform data.
Scroll bar
Display scope
All waveform data
Cursor position
