4.8 Verifying Settings and Starting Recording
53
Chapter 4 Configuring the Instrument before Measurement (SYSTEM - SYSTEM screen)
4
Once you have determined that the settings are appropriate, start recording by pressing the START/
STOP key. Verify that the event icon ( ) is not orange (indicating that the event is occurring fre-
quently) and that measured values and waveforms on the
[VIEW] screen are normal.
 If the event icon is appearing frequently
Verify which event is occurring with the event list on the
[EVENT] screen and change the problematic
event threshold on the
[SYSTEM] screen.
 If measured values or waveforms are abnormal
Change the measurement condition settings on the
[SYSTEM] screen and verify measured values
again.
Repeat these steps until there are no other problems.

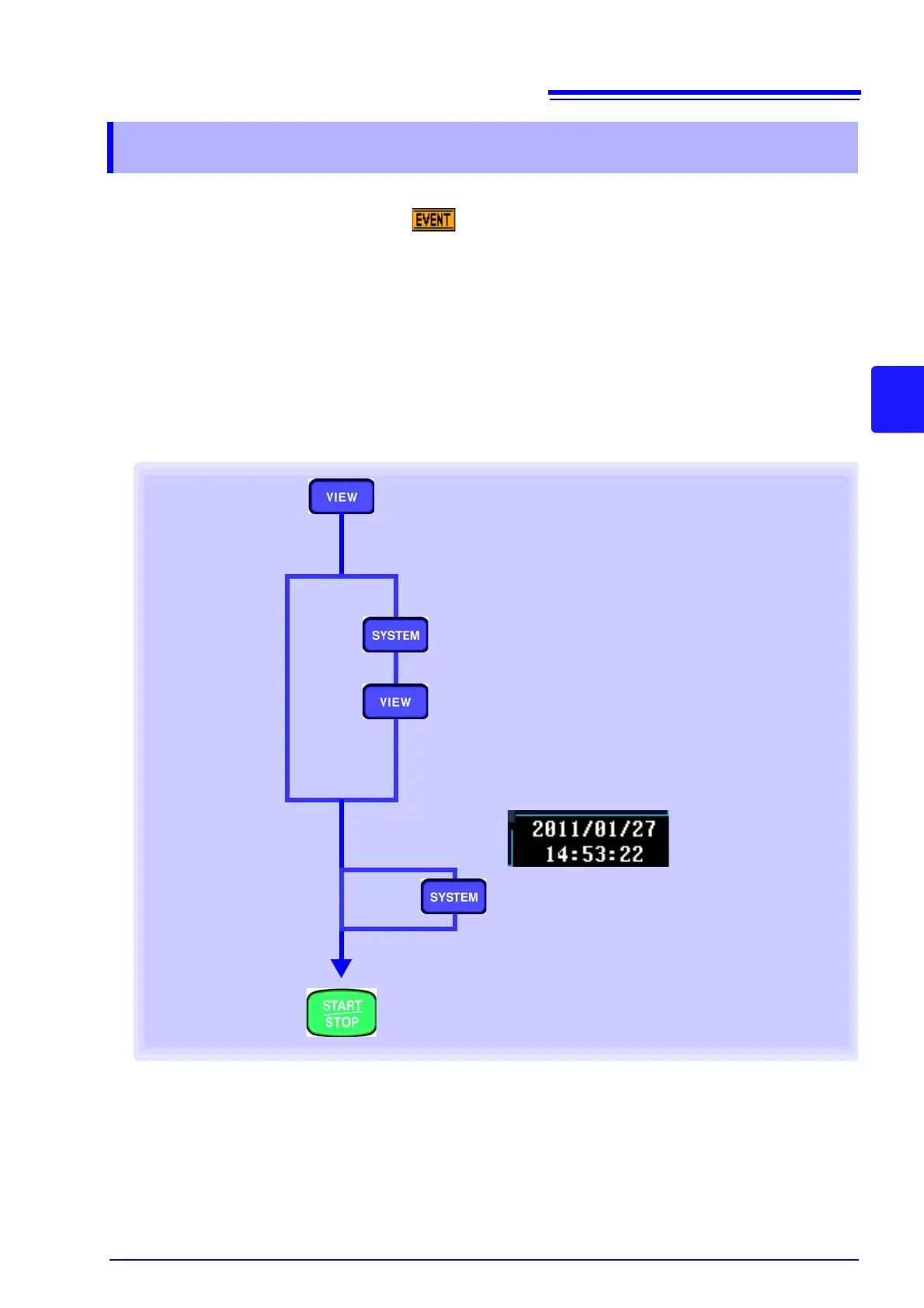

4.8 Verifying Settings and Starting Recording
Verify
 Check how frequently the event icon is appearing.
 Select the [VIEW] screen and check measured values and
waveforms.
See: Chapter 6 (p.75)
No problem
Start recording.
See: "Starting and Stopping Recording" (p.14)
Problem
Change settings
 Change the settings on the [SYSTEM] screen.
See: Chapter 5 (p.55)
Check again
 Check how frequently the event icon is appearing.
 Select the [VIEW] screen and check measured values
and waveforms.
No problem
Change settings
 Change the settings on the [SYSTEM] screen.
See: "4.2 Setting the Clock" (p.38)
Problem
Check the clock
No problem
