6.4 Displaying Harmonics
86
The 1st to 50th harmonic orders and 0.5 to 49.5 inter-harmonic
orders are displayed in a list for the selected item.

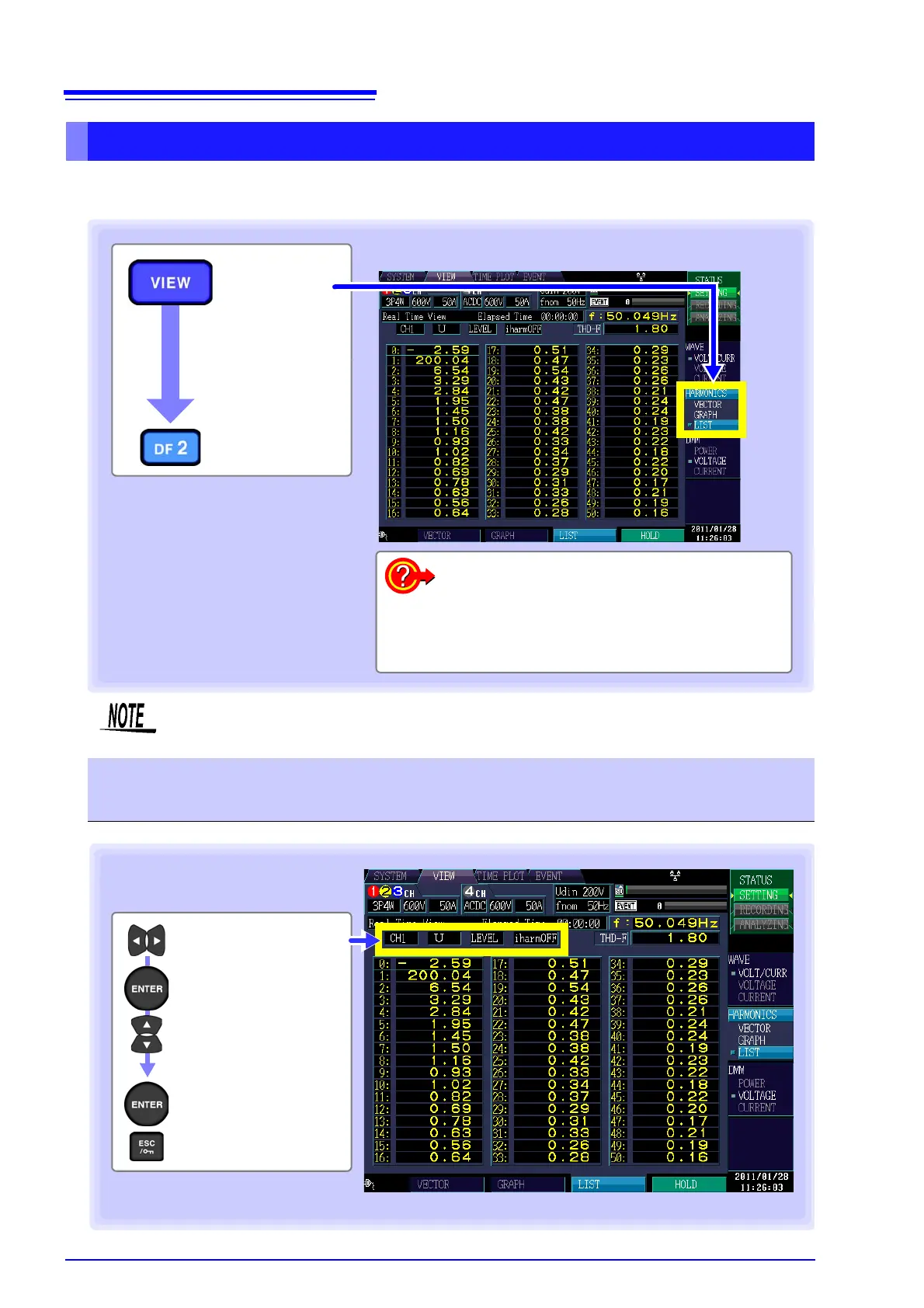

Displaying harmonics as a list
[VIEW]
screen
[HARMONICS]
[LIST]
To change the displayed channels (p.84)
To change the displayed items (p.84)
To change the RMS value/phase angle display
(p.84)
To display inter-harmonics (p.85)
Example: 3P3W3M Wiring
When the 400 Hz measurement frequency is selected, harmonic analysis is performed up
to the 10th order, and inter-harmonic analysis is not available.
Changing the display channels, items, RMS value, phase angle, inter-
harmonics
Display the
pull-down menu
Select the setting
Accept setting
Cancel
Select the setting
