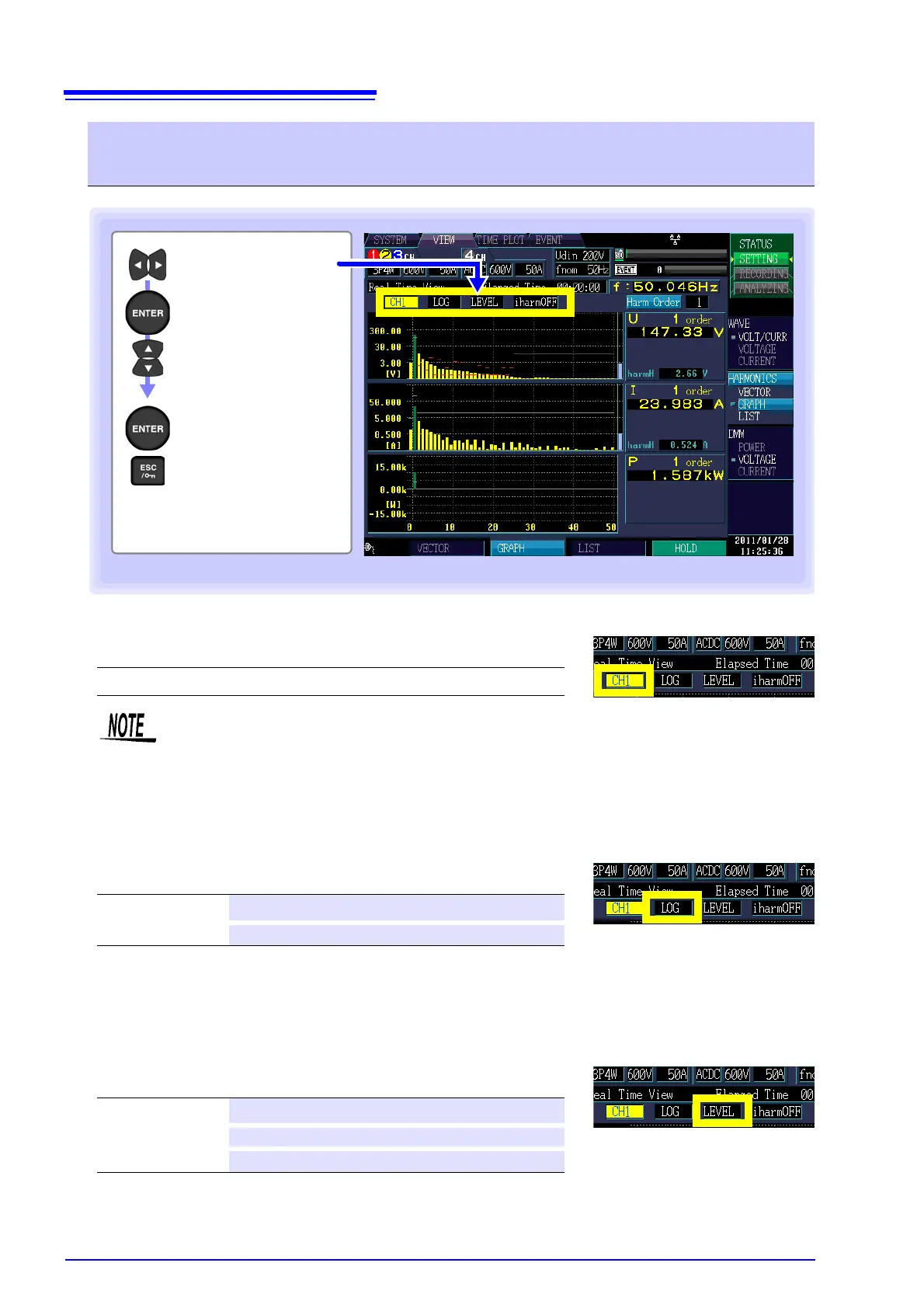

6.4 Displaying Harmonics
84
Displayed channel
Axis display
If you select the logarithmic display method, the vector is
easy to see even at low levels.
RMS/phase angle/content percentage display
Select the harmonic bar graph display (RMS value display, phase angle display, or content percentage).
The harmonic power phase angle indicates the harmonic voltage-
current phase difference.
In the level display, the high-order harmonic component bar graph and measured value (harmH) are dis-
played next to the U and I bar graphs.
Changing the display channel, axis display, RMS/phase angle dis-
play, and inter-harmonics
Settings:( : Default)
CH1/ CH2/ CH3/ CH4/sum
Display the
pull-down menu
Select the setting
Accept setting
Cancel
Select the setting
When the 400 Hz measurement frequency is selected, harmonic
analysis is performed up to the 10th order, and inter-harmonic analysis
is not available.
Settings:( : Default)
LINER
Linear display
LOG
Log Logarithmic display
Settings:( : Default)
LEVEL
RMS
Phase
Phase angle
Content
Content percentage
