119

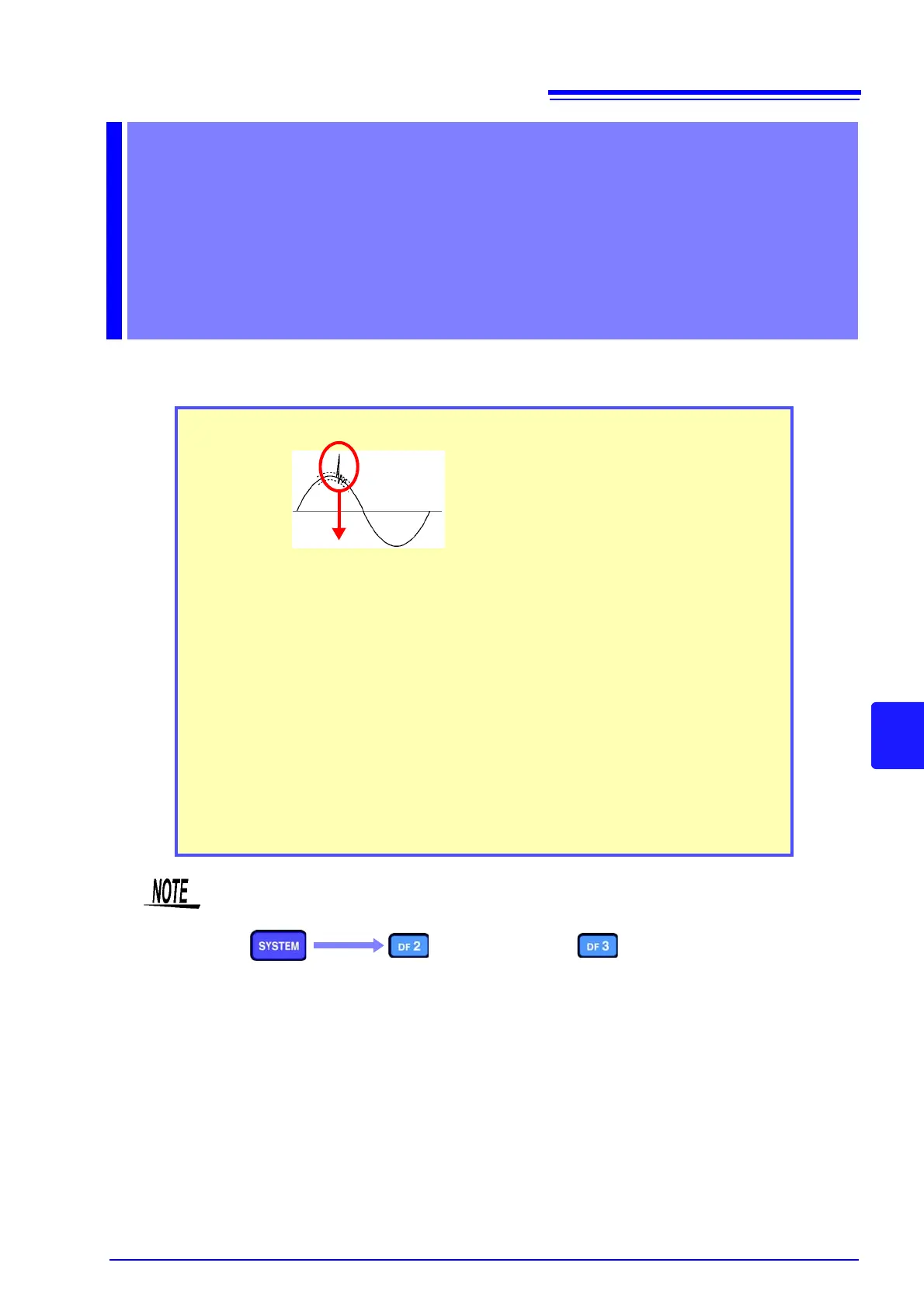

Chapter 8 Checking Events (EVENT screen)
8
Data is analyzed on the [EVENT] screen. For more information about events, see "Appendix 2 Explana-
tion of Power Supply Quality Parameters and Events" (p.A4).
Checking Events
(EVENT
screen) Chapter 8
Display the event list. (p.121)
You can check events that have occurred on the [EVENT LIST] screen.
Analyze events. (p.124 to p.132)
You can display the screen at the time the selected event occurred.
Events displayed by the PW3198
• Start recording events
• Stop recording events
• Calculation events (events for which one or more thresholds can be set)
• Event waveforms (transient waveforms, high-order harmonic data, fluctua-
tion data)
Event occurrence
Each time an event occurs, an event is
added to the [EVENT LIST] screen.
• When making measurements using events, be sure to set the event setting on the [SYS-
TEM] screen to ON.
See: "5.5 Changing Event Settings" (p.66)
• The maximum number of events that can be displayed is 1,000. Depending on the
repeated recording and repeat count settings, up to 55,000 events can be recorded.
(Event data should be analyzed using the 9624-50 PQA Hi-View Pro software.)
To Next Page
