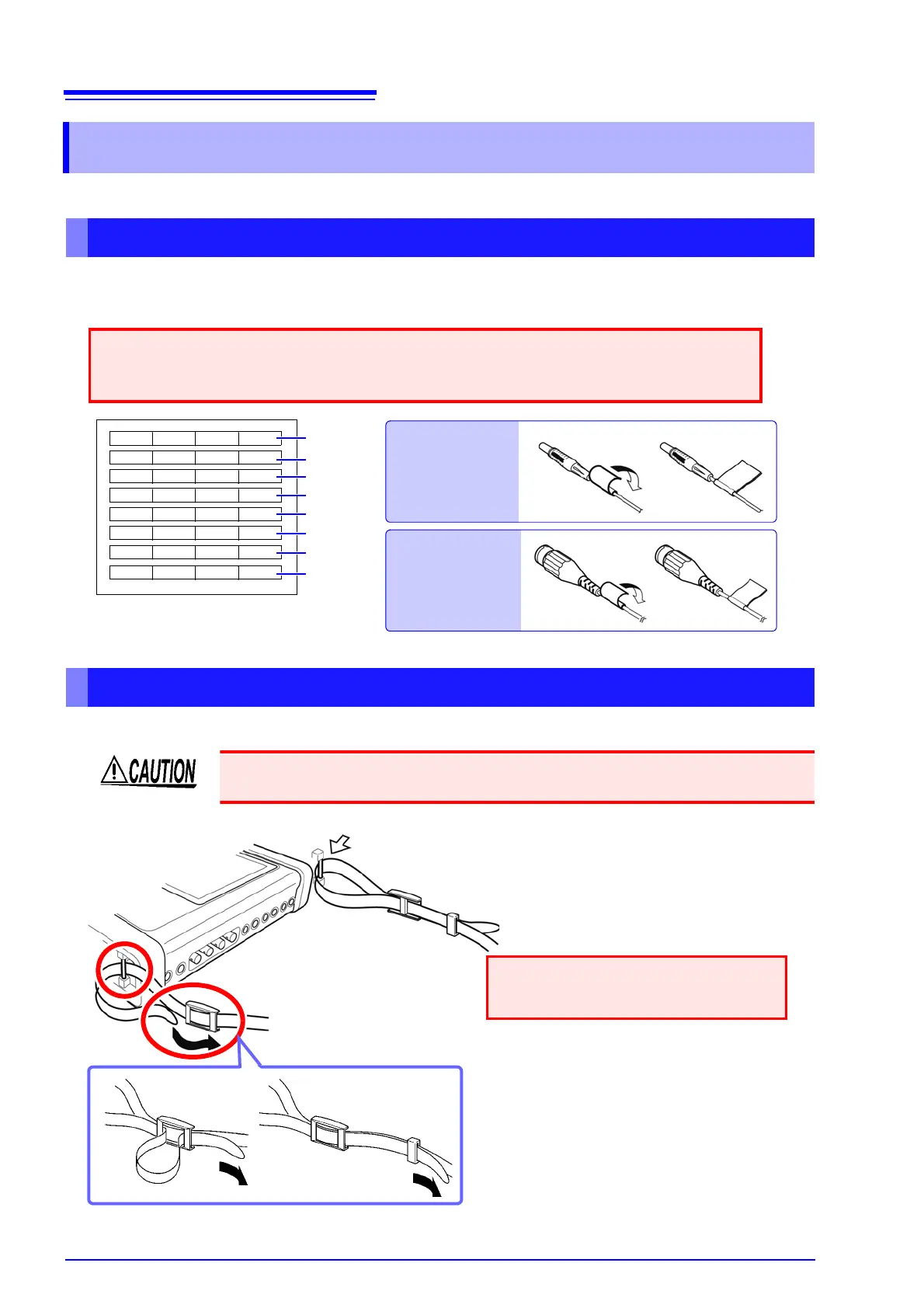

3.2 Initial Instrument Preparations
28
Perform the following before starting measurement the first time.
Attach input cable labels to the voltage cords and clamp sensors as needed to allow identification of indi-
vidual channels.
Use the strap when carrying the instrument or suspending it from a hook during use.
3.2 Initial Instrument Preparations
Attaching input cable labels to the voltage cords and clamp sensors
Red
Yellow
Blue
Brown
Black
Grey
Green
White
Before applying the input cable labels
Wipe any dust from the surface of the voltage cords and clamp sensors, and ensure that it is
dry.
Input Cable Labels
Apply labels
to both ends
of the voltage
cords
Apply labels
to both ends
of the clamp
sensor leads.
Attaching the strap
Attach both ends of the strap securely to the instrument. If insecurely attached, the
instrument may fall and be damaged when carrying.
1. Feed each end of the strap
through the corresponding eye-
let on the instrument.
2. Feed each end of the strap
through its buckle.
3. Feed each end of the strap
through its loop.
Tighten securely to keep straps from
loosening or twisting.
1
1
2
3
To Next Page
