9.3 Save Operation and File Structure
140

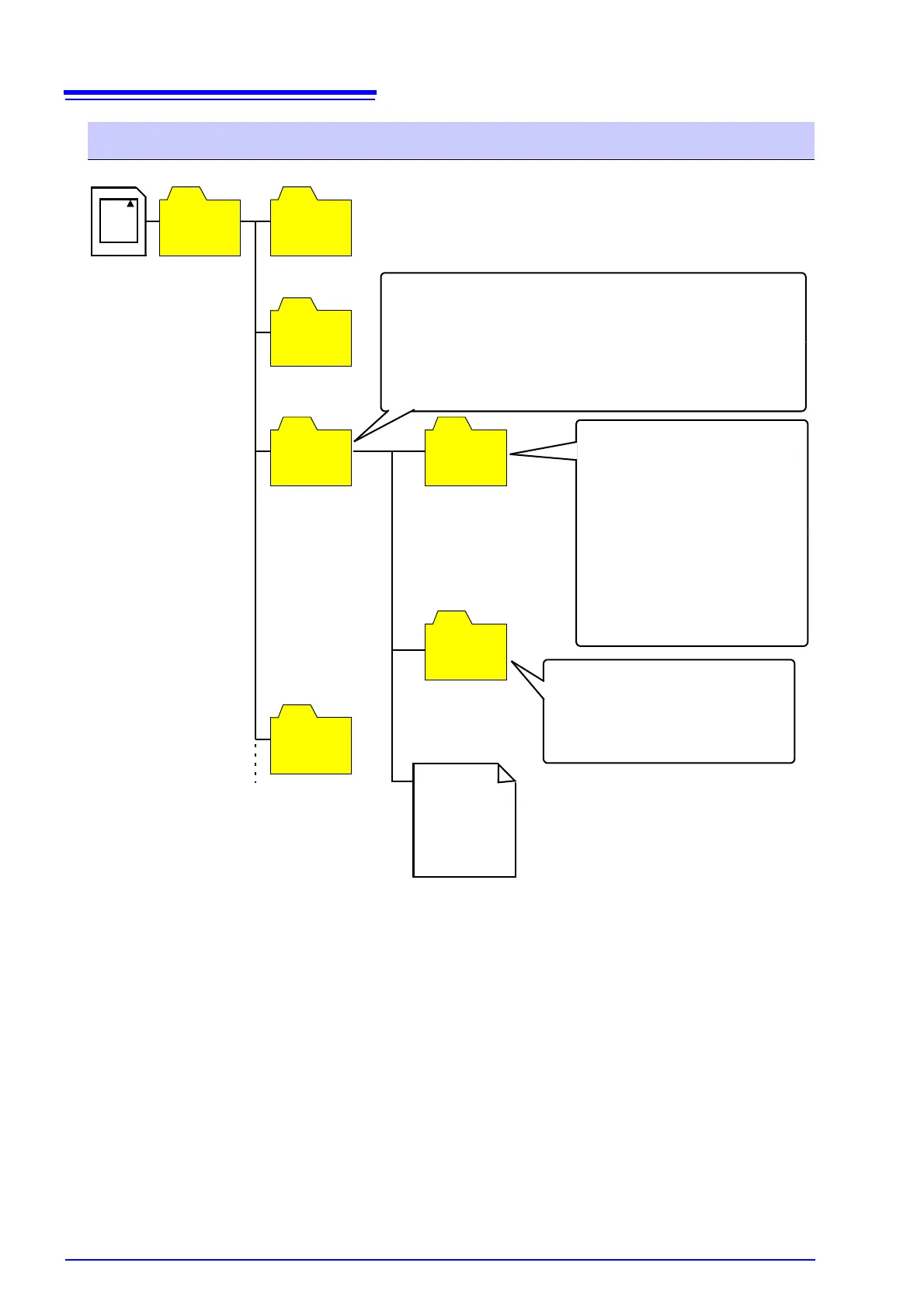

File structure (overall)
PW3198
HARD
COPY
SETTING
B0052500
B0052501
Folder for
saving data
Folder for
saving events
Folder for
automatically
saving screen data
Folder naming conventions
(Example: The first set of binary data recorded on May 25, 2010)
B: “B” for “binary”
0: Last digit of year
05: Month
25: Day
00: Consecutive data number for that day
EV000001.EVT
(Event data)
TR000001.TRN
(Transient waveform file)
HH000001.HHC
(High-order harmonic waveform file)
000001.WDU
(Fluctuation data file)
EV000002.EVT
HH000002.HHC
000002.WDU
.
.
.
.
.
.
EVENT
AUTO
COPY
PW3198.SET
TP000.ITV
FL000.FLC
.
.
.
Settings data file at the start of time series
measurement
Time series measurement normal binary data*
Time series measurement flicker data*
*: When the file size exceeds 100 MB, the in-
strument will create a new file and continue
saving data to it. Numbers are assigned au-
tomatically, as for TP0001.ITV.
Time series
data files
This folder is not
created if the
screen copy in-
terval is set to
OFF.
File for saving
settings data files
Folder for saving
screen copy data
files
Folder for
saving data
SD
