12.2 Control and Measurement via Ethernet ("LAN") Interface
161
8
Chapter 12 Operation with a Computer
12

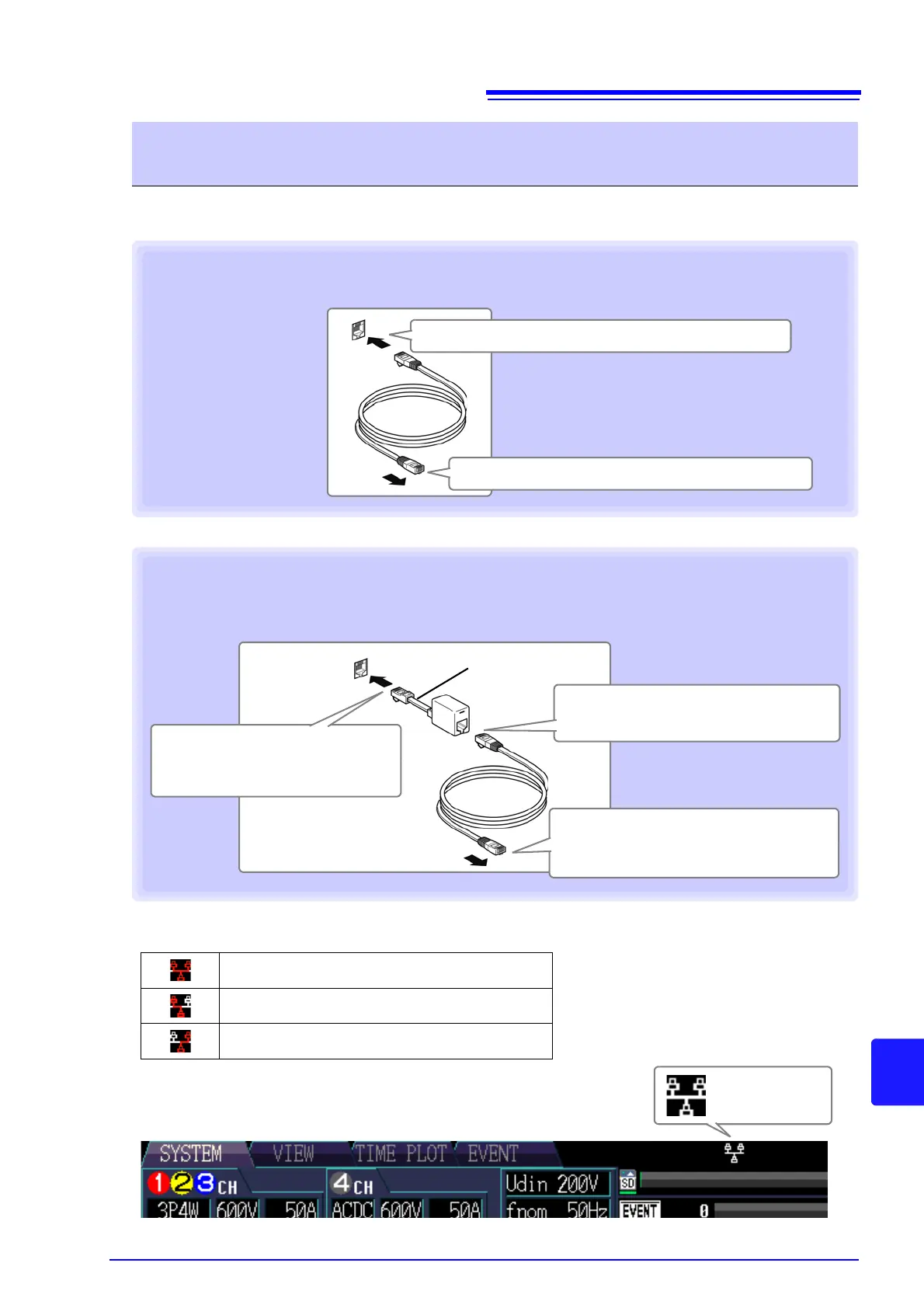

Connect by the following procedure.
The icon display varies with the state of the LAN connection as follows:
Connecting the Instrument to a Computer with an Ethernet ("LAN")
Cable
Connect to the Ethernet jack on the instrument.
Connect to a 100BASE-TX hub.
1
2
When connecting the instrument to an existing network
(connect the instrument to a hub)
When connecting the instrument to a single computer
(connect the instrument to the computer)
Ethernet
Interface Jack
Cross-conversion
cable
Use the Hioki 9642 LAN Cable and cross-over adapter (9642 accessory)
1
Connect the LAN cable to the cross-
conversion cable’s connector.
Connect the cross-conversion
connector to the instrument’s
LAN interface.
2
Connect the other end of the Ether-
net cable to the 100BASE-TX Ether-
net jack on the computer.
3
HTTP server and data download connection
Data download connection
HTTP server connection
To Next Page
