3.2 Initial Instrument Preparations
30
ｃ
Be sure to read the "About the battery pack" (p.9) before connecting power.
The battery pack is used to power the instrument during power outages and as a backup power supply.
When fully charged, it can provide backup power for approximately 180 minutes in the event of a power
outage. The battery pack is designed to charge during normal use of the instrument. The CHARGE LED
will turn red while the battery pack is charging.
Note that if a power outage occurs while the battery pack is not being used, displayed measurement data
will be erased. (Data that has been recorded on the SD memory card is retained.)

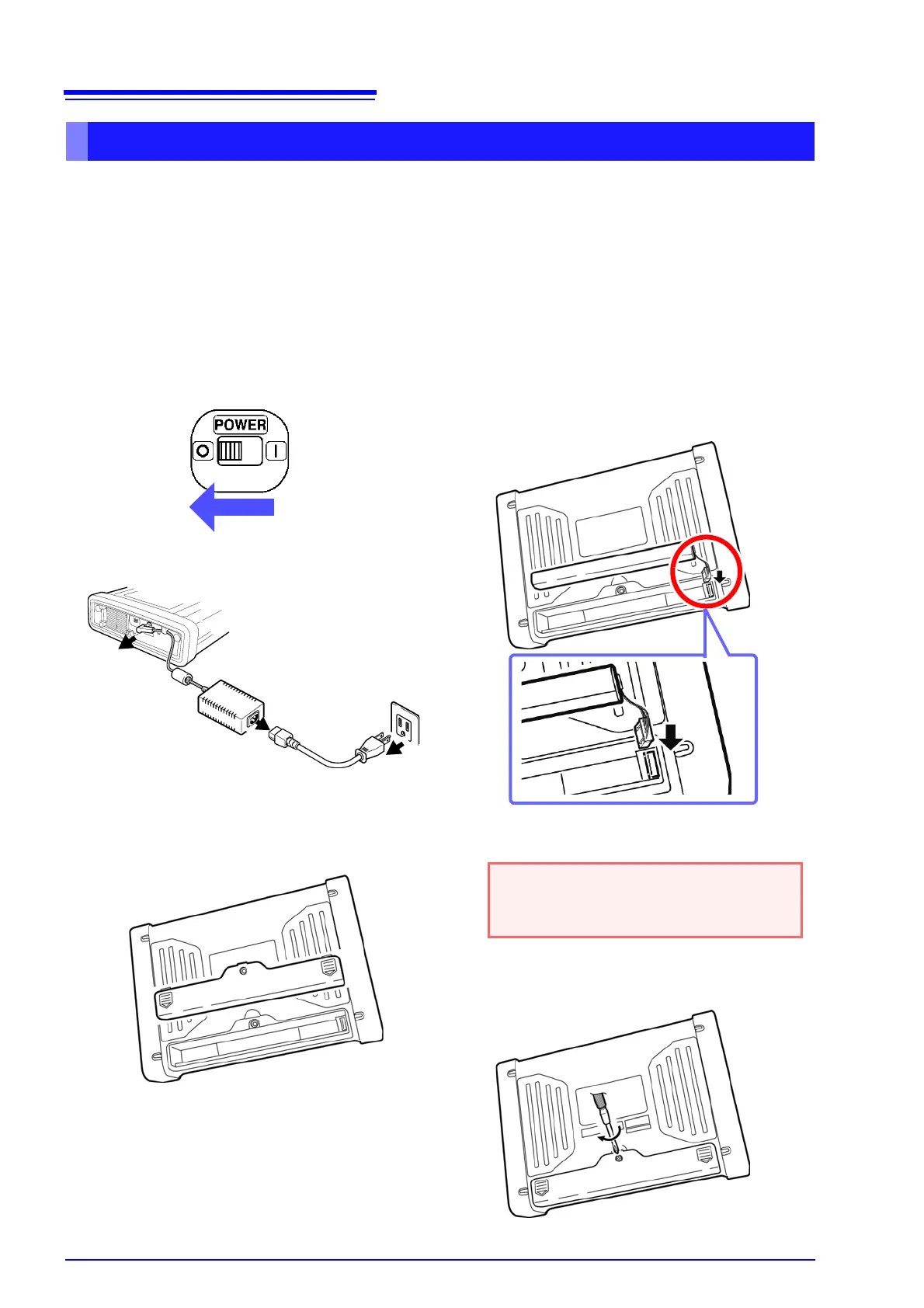

Installing the battery pack
4. Connect the battery pack's plug to the connec-
tor (orient the connector so that the two pro-
truding pieces are on the left).
5. Insert the battery pack as indicated by
the labeling on the battery pack.
6. Reattach the battery pack cover to the
instrument and tighten the screws
securely.
1. Turn off the instrument.
2. Disconnect the AC ADAPTER
Z1002.
3. Turn the instrument upside down
and remove the screws that hold
the battery pack cover in place.
Remove the cover.
2
1
Tools needed to install the battery pack: 1 Phillips head screwdriver
Exercise care not to pinch the battery
pack wires between the batter pack and
the instrument.
3
