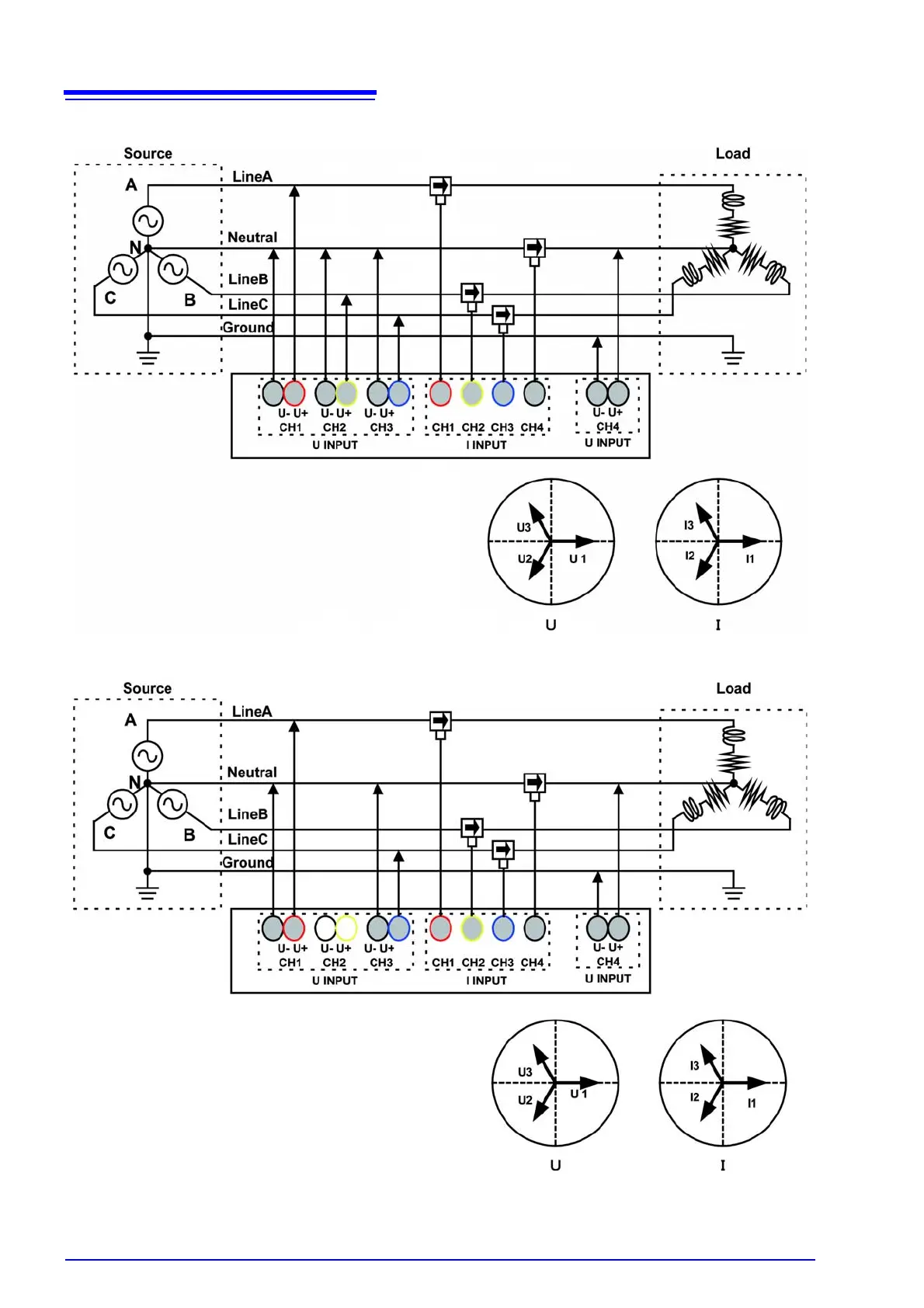

4.3 Configuring the Connection Mode and Clamp Sensors

3P4W (CH4:ACDC)

3P4W2.5E (CH4:ACDC)

The vector diagram shows the measure-

ment line in its ideal (balanced) state.

The vector diagram shows the measure-

ment line in its ideal (balanced) state.
