9.2 Preparations before Use (Connections and Settings)
127
9
Some transmission speed (baud rate) settings may not be usable with some computers due
to a large error component. In this case, switch to a slower setting.
Configure the controller (PC or PLC).
Be sure to make set up the controller as shown below.
• Asynchronous communication
• Transfer rate: 9600bps/ 19200bps/ 38400bps/ 115200bps
(set to match the instrument setting)
• Stop bit: 1
• Data length: 8
• Parity check: None
• Flow control: None
4

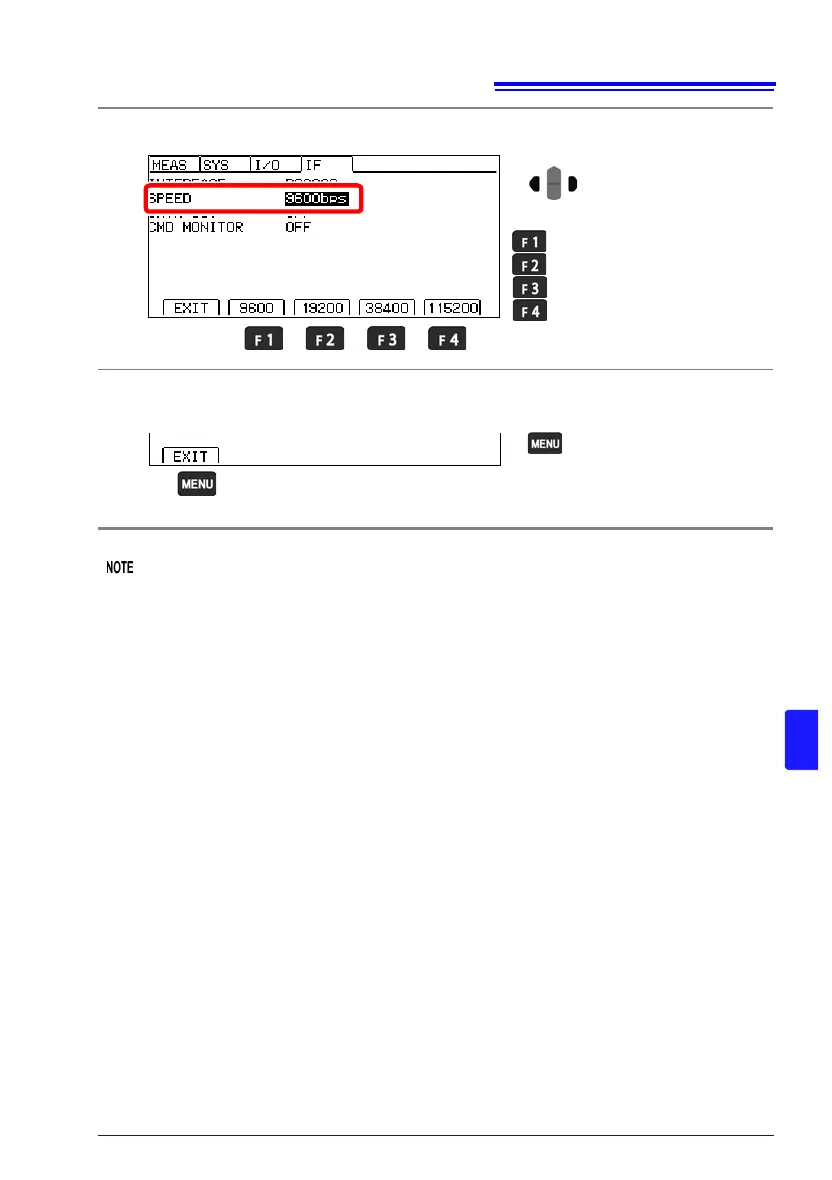

Select the interface transfer rate (baud rate).
5
Return to the Measurement screen.
2
9600 (bps) (default)
19200 (bps)
38400 (bps)
115200 (bps)
Selection
1
Return to the Measure-
ment screen, and enable
the communications inter-
face.
