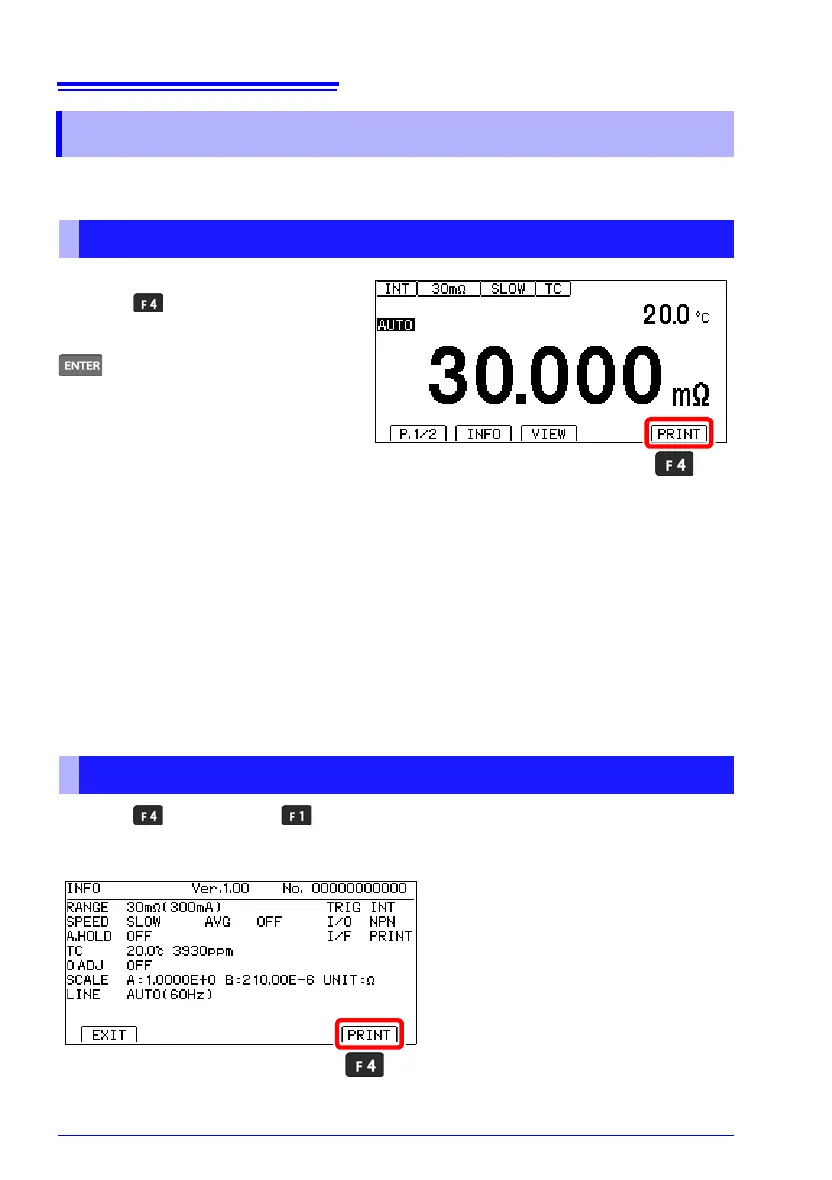

10.2 Printing
140
Before Printing
Verify that the instrument settings (p.139) are correct.
Printing by key operation
Pressing [PRINT] on Measurement
screen P.1/2 causes the current mea-
sured value to be printed. When the
is used as the trigger, one mea-
surement will be performed and the
results printed. When the temperature is
not being displayed, only the resistance
value will be printed. When the tempera-
ture is being displayed, both the resis-
tance value and the temperature will be
printed.
See: "Switching the Display" (p.35)
Printing by external control
When the instrument’s EXT I/O connector’s PRINT signal is turned ON (by shorting it with
the EXT I/O connector’s ISO_COM pin), you can print measured values and judgment
results.
• To print continuously for each measurement, connect the EOM signal to the PRINT signal
and set the instrument to use the internal trigger.
• To print after the completion of trigger-based measurement using an external trigger, con-
nect the external I/O EOM signal to the PRINT signal.
Pressing after pressing
[INFO] on Measurement screen P.1/2 to display a list of
settings prints a list of measurement conditions and settings.
See: "Displaying a list of measurement conditions and settings" (p.37)
10.2 Printing
Printing Measured Values and Comparator Judgments
Printing List of Measurement Conditions and Settings
To Next Page
