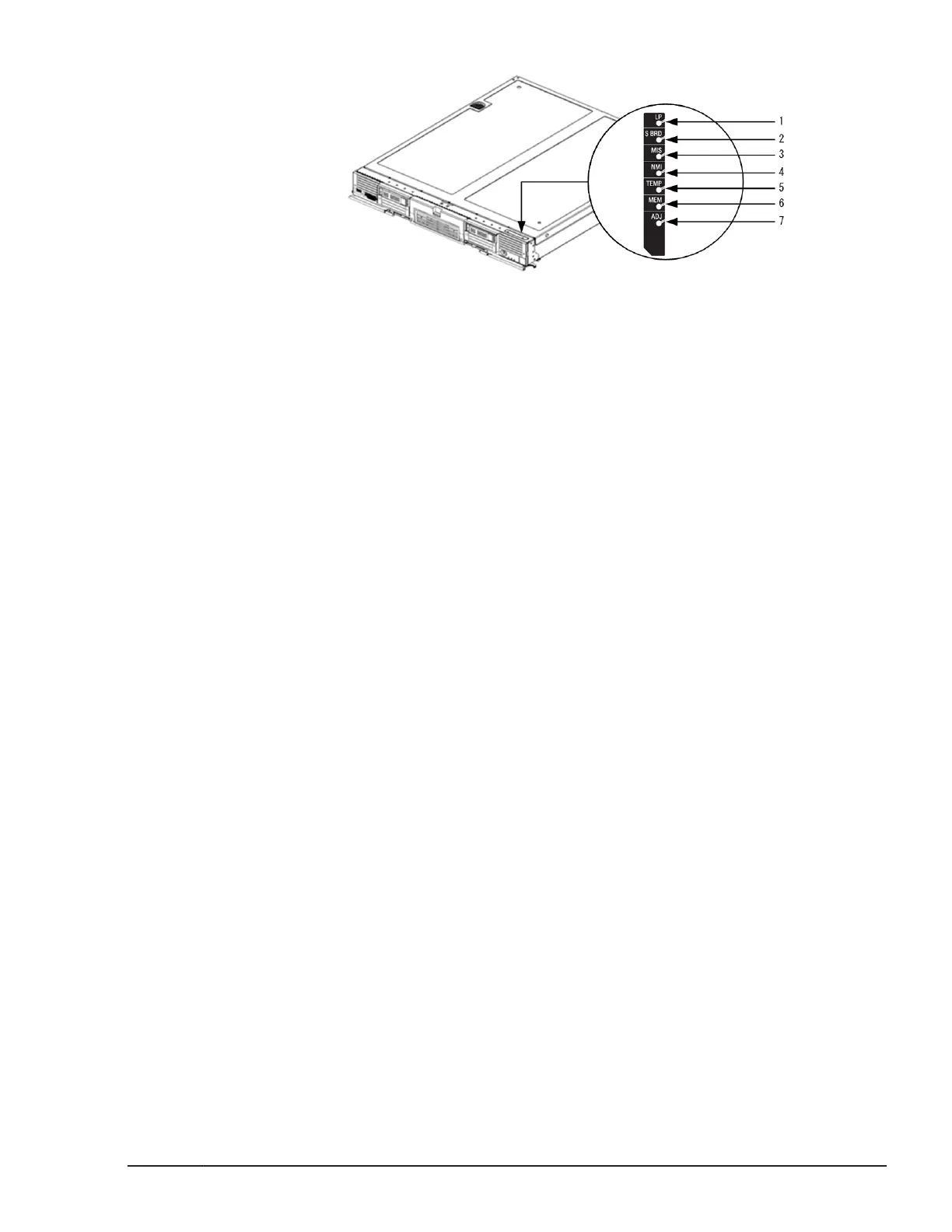

Figure 2-12 Indicators on a full-wide blade (top)
These LEDs are the Diagnostic Panel, which provides notification of failures on
the server blade.
1. LP LED (green LED)
This LED lights up when the Diagnostic Panel is enabled.
2. S BRD LED (orange LED)
This LED lights up when the motherboard needs to be replaced.
3. MIS LED (orange LED)
This LED lights up when an unsupported combination is detected among
the mounted CPU, DIMM, and HDD.
4. NMI LED (orange LED)
This LED lights up when an NMI is issued.
5. TEMP LED (orange LED)
This LED turns up when the temperature of the server blade exceeds the
limit.
6. MEM LED (orange LED)
This LED lights up when a memory failure is detected.
7. ADJ LED (orange LED)
This LED lights up when a failure is detected on the server blade.
Appearance of a half-wide blade
A half-wide blade has slots for installing HDDs and SSDs, as well as
connectors for connecting external devices. It also has indicators to show the
operational status of the server blade. The appearance of a half-wide blade is
shown below.
CB 2500 Appearance
2-9
Hitachi Compute Blade 2500 Series Getting Started Guide
