Hitachi Compute Blade 2500 User Manual

Full-wide blade
slot number
Installation number of
mezzanine cards
Corresponding I/O board module
slot number
4 08A, 08B
9 2 09A, 09B
4 10A, 10B
11 2 11A, 11B
4 12A, 12B
13 2 13A, 13B
4 14A, 14B
15 This slot location cannot be connected to an I/O board module.
• A PCI Express path-through mezzanine card installed in mezzanine card
slot 2 of a half-wide blade corresponds to the PCI Express adapters
mounted on slot numbers xxA and xxB of an I/O board module. xx in xxA
and xxB corresponds to the slot number on which the half-wide blade is
mounted.

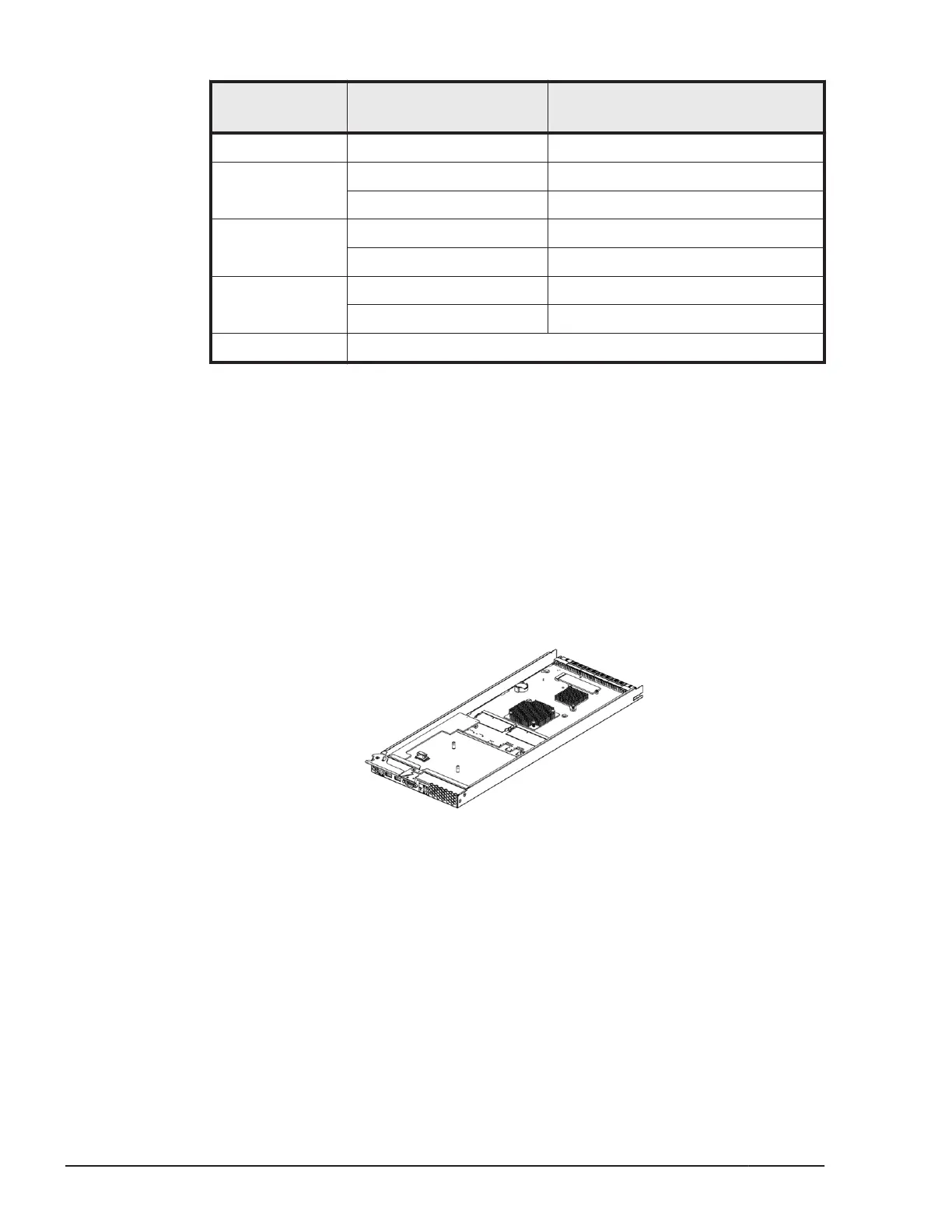

Appearance of the management module
The management module has a serial connector for directly connecting it to
the system console, as well as USB ports for connecting USB devices. The
management module also has an indicator to show its operational status. The
appearance of the management module is shown below.
Figure 2-21 Management module
The switches, indicators, and connectors of the management module are
described below.
2-18
CB 2500 Appearance
Hitachi Compute Blade 2500 Series Getting Started Guide
