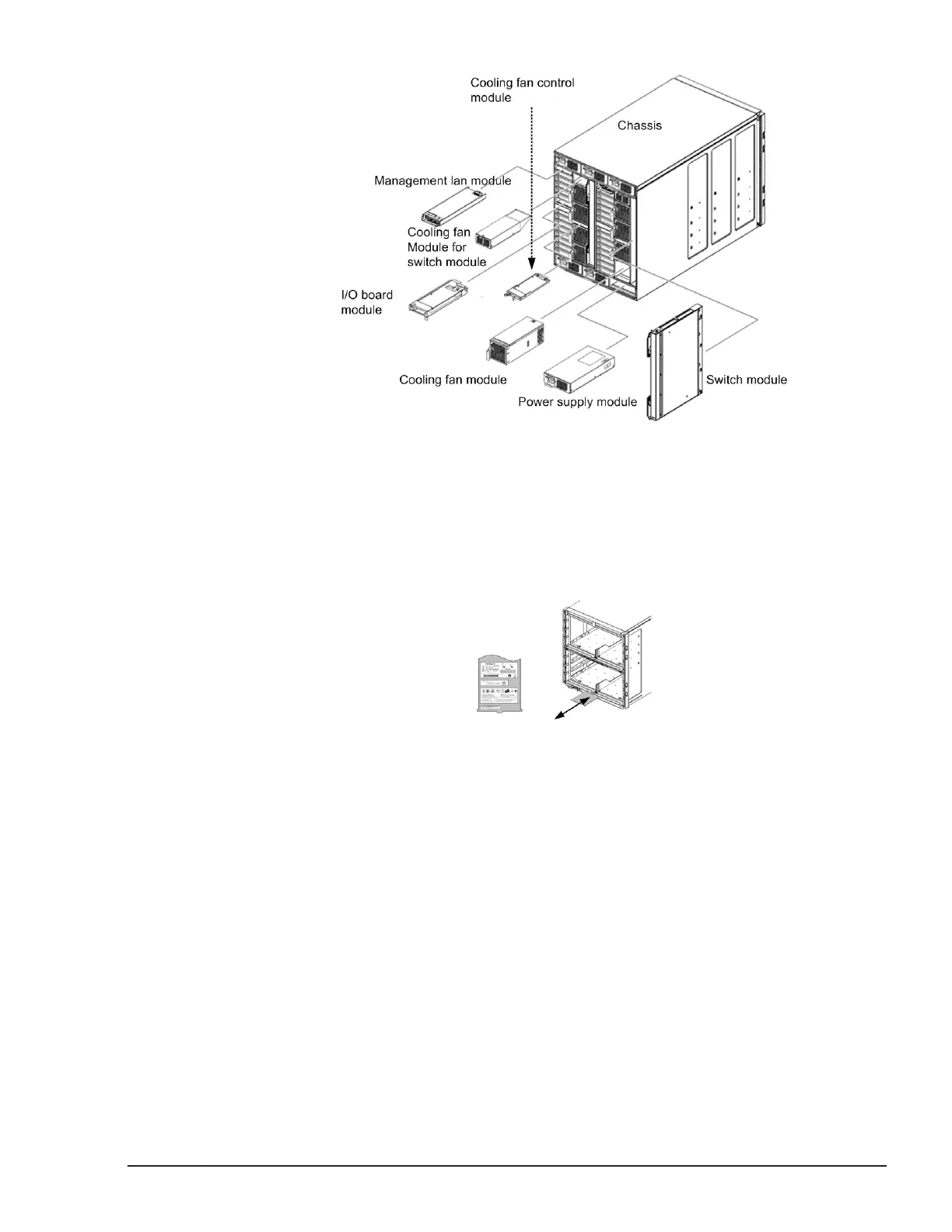

Figure 2-2 Server chassis (rear side) and modules
ID tag of the server chassis
The server chassis has an ID tag for identifying the unit. The ID tag shows
the model name, serial number, relevant version, and C13 PDU support
feature information.
Figure 2-3 ID tag of the server chassis
Slots and location tags of the server chassis
Install server blades and management modules in appropriate slots on the
front of the server chassis. Install I/O board modules, switch modules, power
supply modules, fan modules, and management LAN modules in appropriate
slots on the rear of the server chassis. The server blade chassis has location
tags for identifying slots and slot numbers. This section describes the slots in
which server blades and modules are installed and the location tags.
The following figure shows slots and their slot numbers on the front of the
server chassis.
