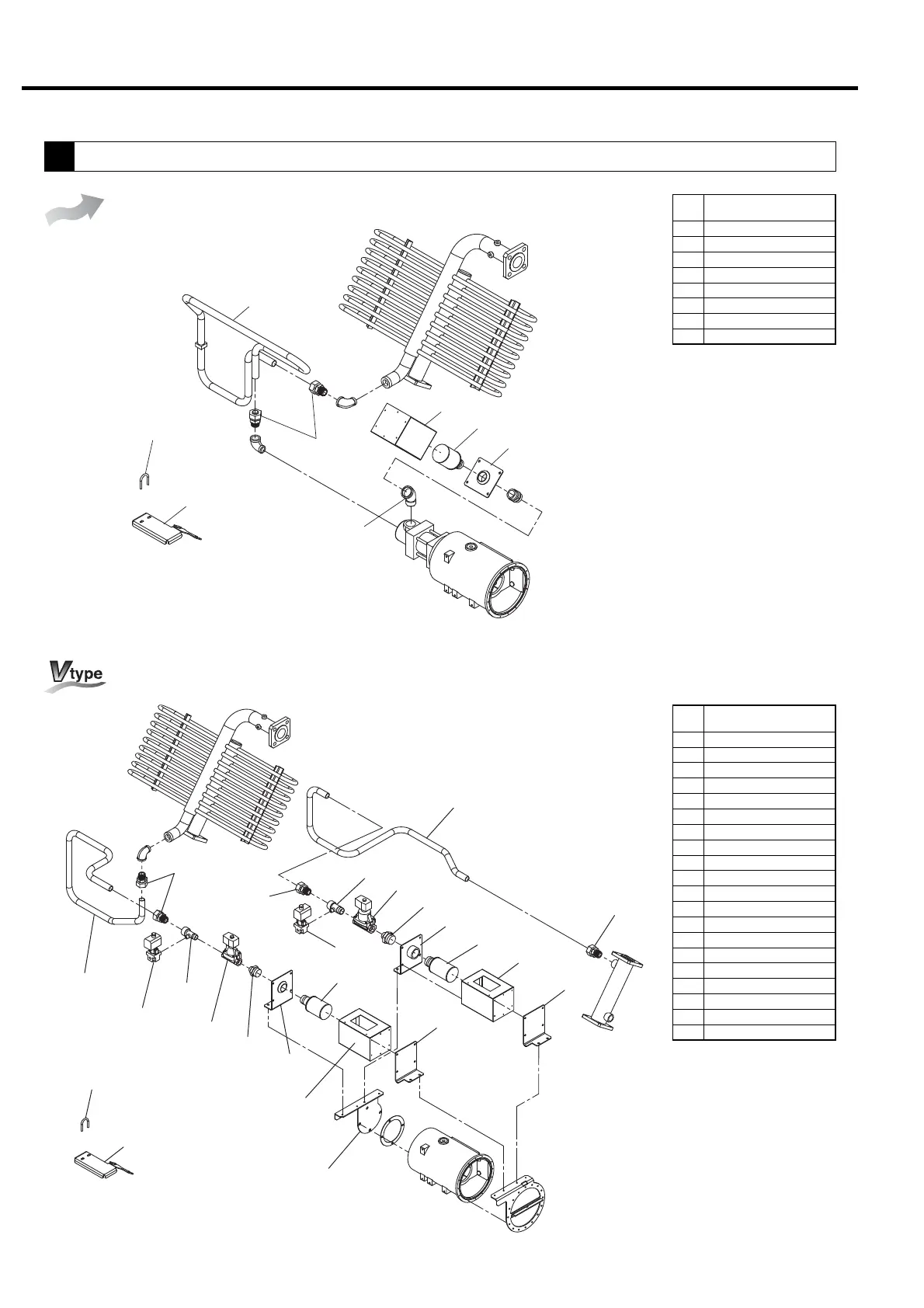

11. PARTS LIST
902
900
901
E94
A86
A84
A85
E32
Ref.
No.
Description
900 Blowoff Silencer
901 Seat, blowoff silencer
902 Cover, blowoff silencer
A84 Elbow
A85 U-Bolt
A86 Piping Fitting (φ35)
E32 Support, blowoff piping
E94 Blowoff Air Piping (H)
Ref.
No.
Description
900 Blowoff Silencer (H)
901 Seat, blowoff silencer (H)
902
Cover, blowoff silencer (H)
A85 U-Bolt
A87 Nipple (H)
A89 Nipple (L)
D29 Seat (1L), blowoff piping
E21
Blowoff Solenoid Valve (1H)
E22 Blowoff Solenoid Valve (2)
E23 Seat (1H), blowoff piping
E32
Support, blowoff solenoid valve
E34 Closure Cover
E68
Blowoff Solenoid Valve (1L)
E69 Seat, blowoff silencer (L)
E70
Cover, blowoff silencer (L)
E79 Blowoff Silencer (L)
E80 Support, silencer cover
E94 Blowoff Air Piping (H)
E96 Blowoff Air Piping (L)
G62 Piping fitting (φ28)
Air-Cooled
[Fixed speed type]
E79
E34
E22
E94
E96
E21
E70
E22
902
D29
900
E23
G62
E68
G62
901
G62
E69
E80
E80
A85
E32
A87
A89
13
Blowoff Piping
