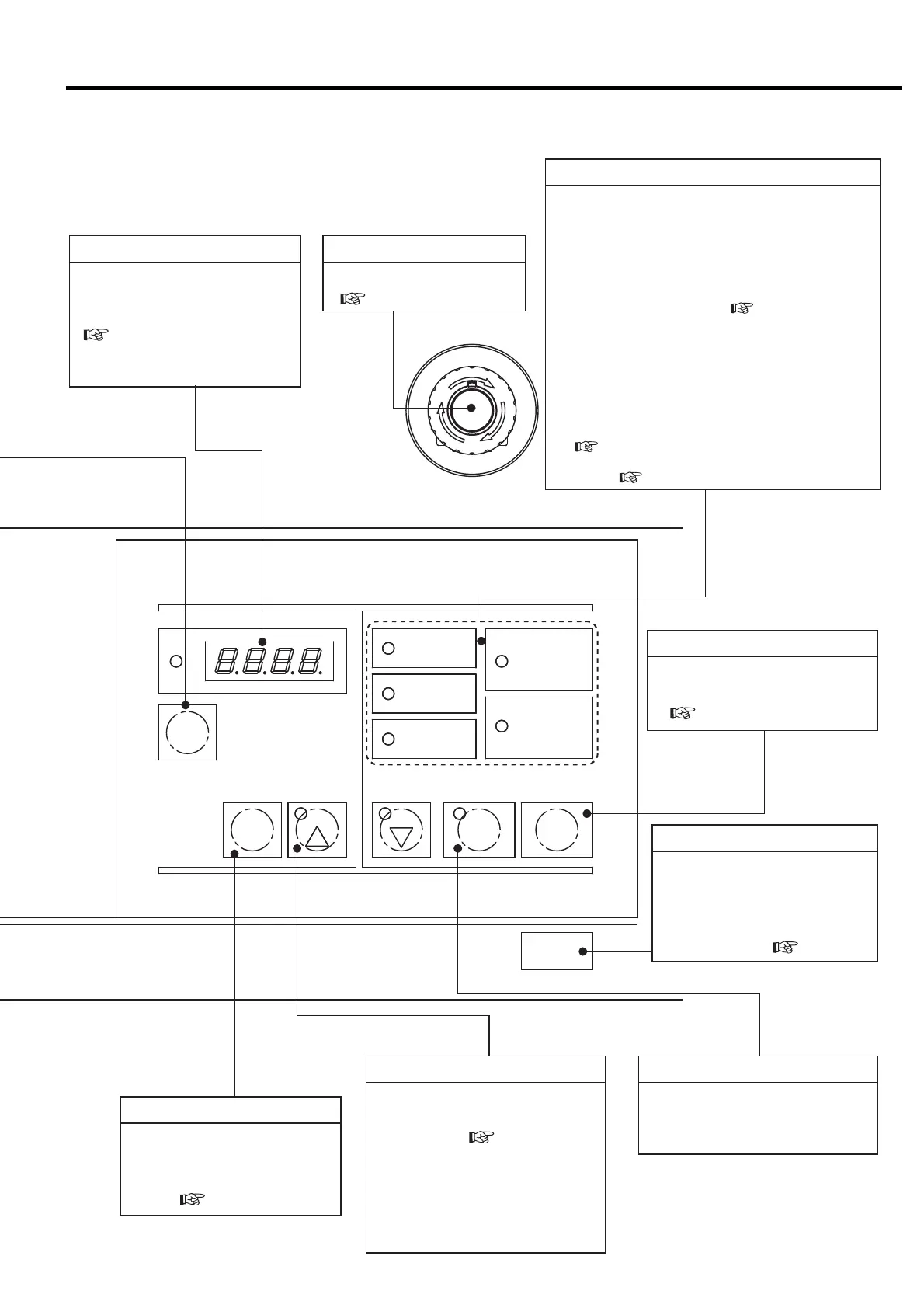

3. OPERATING PROCEDURE [Instrument Panel]
SELECT/WIDE
2
RUNNINGCONTROL
START
REMOTE
1
FUNC
［×10h］
ALARM
STR
REMOTE
RUNNINGMODE
AUTOSTART
POWER
LOAD
RESET
SHUTDOWN
STOP
Digital Monitor
Used for basic settings as well
as other various settings in
combination with the LCD monitor.
( 3.3.6)
● ALARM light (green): Blinks if
an alarm failure occurs.
SELECT/WIDE Button/Light (Yellow) START Button
Starts the air compressor.
The START light turns ON while
air compressor is running.
STOP Button
Stops the compressor
immediately without unloading.
( 3.2.2)
UNLOAD STOP Button
Stops the compressor in normal
state.
The compressor stops running
after removing the condensate
from the air end. ( 3.2.2)
REMOTE Button
Activates or deactivates a
remote start/stop operation
locally or on the instrument
panel. ( 3.4.6).
UNLOAD STOP
Press this button to stop the air compressor.
The air compressor will stop after removing the
condensate from the air end.
※This stop button is effective while a stand alone operation.
EMERGENCY STOP button
Stops for emergency.
( 3.2.3)
● POWER light (yellow): Lights up when the main power
is turned on.
● REMOTE light (green):
ON (glowing) when the REMOTE button is pressed in
order to activate a remote operation.
ON (blinking) when an external remote-operation-
activation switch has been turned on in order to
activate a remote operation. ( 3.4.6)
● LOAD light (yellow): ON (glowing) when the air
compressor is loading.
● AUTO START light (green):
ON (glowing) while the air compressor is in a stop due
to an AUTO operation,lead/lag operation, or
scheduling operation.
ON (blinking) while the air compressor is in a stop due
to a restartable instantaneous power interruption.
( 3.3.3)
● SHUTDOWN light (red): Blinks if a shutdown failure
occurs. ( 3.3.3)
RUNNING MODE Light
S
T
O
P
E
M
E
R
G
E
N
C
Y
Press to confirm the measurement
values, shutdown history, and
setting status. ( 3.4.1, 3.4.2)
To set the ECOMODE [Energy
saving mode] (Fixed speed type
only), hold down the
SELECT/WIDE
button for at least 7 seconds. The
light blinks and ECOMODE is set.
