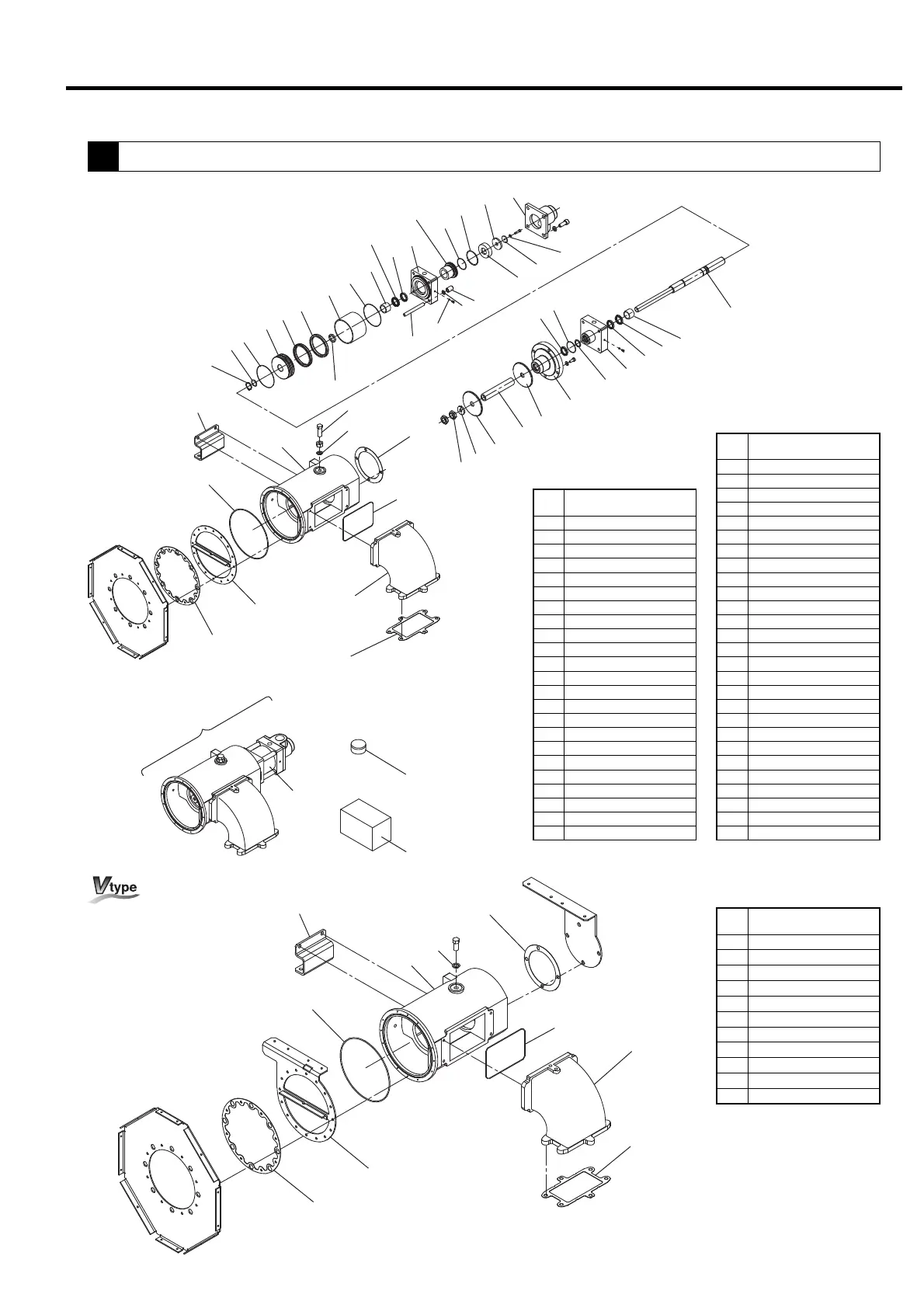

11. PARTS LIST
Ref.
No.
Description
500
Suction Throttle Valve Assembly
502 Body, STV
511 Gasket, air cylinder
512 Gasket, air end air intake
513 Gasket, STV cover
554 Unloader Cover (1)
555 O-Ring
559 Seal Washer
F42 Support Plate, unloader
F44 Air Intake Duct
F46 O-Ring
554
513
502
F44
511
512
F46
555
F42
559
522
509
516
504
515
F28
514
526
542
529
574
530
538
515
508
507
506
550
540
505
521
519
522
503
518
518
517
520
537
520
535
536
539
525
534
532
510
541
558
559
511
555
F44
512
502
F46
554
513
501
500
F42
569
F27
551
[Fixed speed type]
Ref.
No.
Description
525 Tying Rod, air cylinder
526 Cover, air cylinder
529 Spring Washer (SUS)
530 Rod Nut
532 Body, blowoff valve
534 Seal Washer, air cylinder
535 Nut
536 Wave Spring
537 O-Ring (piston)
538 O-Ring (spacer)
539 O-Ring (needle)
540 O-Ring (2), air cylinder
541 Holder, piston
542 Spacer
550 O-Ring (1), air cylinder
551
Set of Air Cylinder Consumable Parts
554 Unloader Cover (1)
555 O-Ring, unloader 1
558
Adjusting Bolt, suction bypass valve
559 Seal Washer, suction bypass valve
569 Grease, air cylinder
574 Valve Plate, STV
F27 C-type Snap Ring
F28 Backup Ring
F42 Support Plate, unloader
F44 Air Intake Duct
F46 O-Ring
Ref.
No.
Description
500
Suction Throttle Valve Assembly
501 Air Cylinder Assembly
502 Body, STV
503 Tube, air cylinder
504 Cover (1)
505 Cover (2)
506 Piston, blowoff valve
507
Valve Sheet, blowoff valve piston
508 Plate
509 Spindle, air cylinder
510 Rod Metal
511 Gasket, air cylinder
512
Gasket (1), air end air intake
513 Gasket, STV cover
514 Valve Plate, STV
515 Seal Gasket (1)
516 Seal Gasket (2)
517 Piston, air cylinder
518 Seal Gasket (3)
519 Seal Gasket (4)
520 O-Ring, air cylinder
521 Seal Gasket (5)
522 Bush, air cylinder
4
Suction
