Hitachi DSP-110A6N User Manual

95

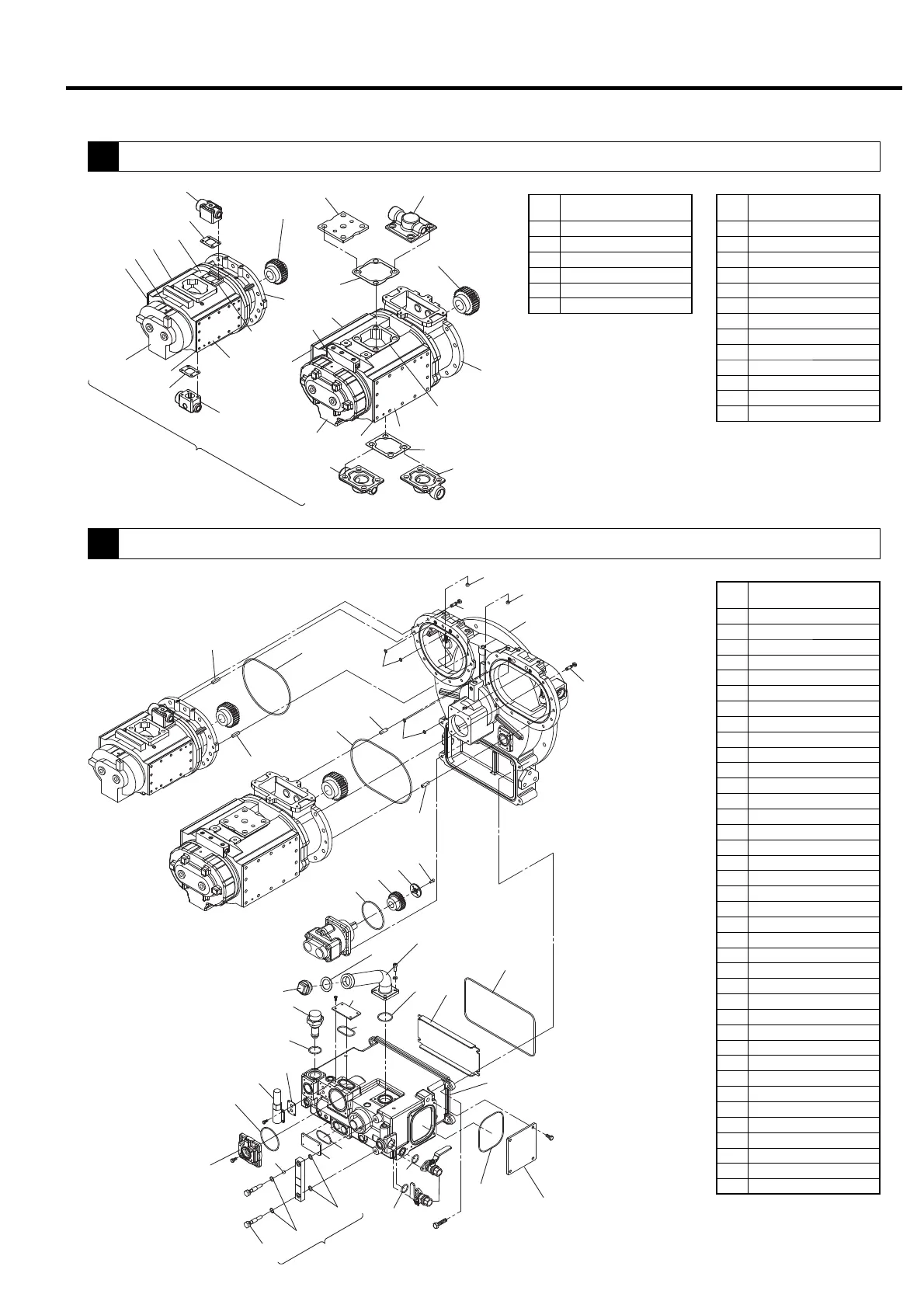

11. PARTS LIST
Ref.
No.
Description
301 Gear Case
307 Gear, oil pump
316 Gasket, oil filling port
317 Plug, oil filling port
318 Oil Piping
319 O-Ring
320 Oil Nozzle (1)
321 Oil Nozzle (2)
322
O-Ring, 1st-stage air end
323 O-Ring, cleaning cover
324 Cover, cleaning
326 O-Ring, oil pump
332 Stud Bolt (1)
333 Stud Bolt (2)
334 Parallel Pin (1)
336 Oil Level Gauge
338 Cover, inspection cover
339 O-Ring, cover
364 Bolt, oil level gauge
369 O-Ring, (strainer cover)
370 O-Ring, (Air end flange)
371
O-Ring, 2nd-stage air end
375 Parallel Pin (2)
383 Oil Relief Valve
388 M6 Flat Head Bolt
389 Gear Stopper
396 Strainer Cover
398 O-Ring
399 Packing, oil relief valve
883
Oil Temperature Control Valve
884 O-Ring
887 Oil Drain Valve
B32 Float
E83 O-Ring
G64 O-Ring 25
G65 O-Ring 30
F39 Oil Casing
H78 Closure Plate
H78
324
323
887
G65
398
398
364
B32
396
338
339
G64
F39
399
383
369
884
883
317
338
339
319
E83
326
307
389
388
334
370
375
322
334
332
301
320
321
333
370
371
316
318
336
375
277
277
243
278
233
278
235
232
233
234
235
277
278
※183
(Air Cooled)
※183
(Water Cooled)
184
133
135
132
133
134
135
178
143
178
※177 (Air Cooled) ※177
(Water Cooled)
299
200
100
Ref.
No.
Description
100 1st-Stage Air End (new)
132
1st-Stage Air End Discharge Cover
133 1st-Stage Air End Jacket Cover
134 Gasket, 1st-stage air end discharge cover
135 Gasket, 1st-stage air end jacket cover
143 Pinion Gear, 1st-stage air end
Ref.
No.
Description
177
Jacket Upper Cover, 1st-stage air end
178 Gasket, 1st-stage air end jacket upper cover
183 Jacket Lower Cover, 1st-stage air end
184 Gasket, 1st-stage air end jacket lower cover
200 2nd-stage Air End (new)
232
2nd-Stage Air End Discharge Cover
233 2nd-Stage Air End Jacket cover
234 Gasket, 2nd-stage air end jacket cover
235 Gasket, 2nd-stage air end jacket cover
243 Pinion Gear, 2nd-stage air end
277 Seat, 2nd-stage air end jacket
278 Seat Gasket, 2nd-stage air end jacket
299 1st stage or 2nd stage Air End Assembly (new)
1
Air End Assembly
2
Gear Case Assembly
