109

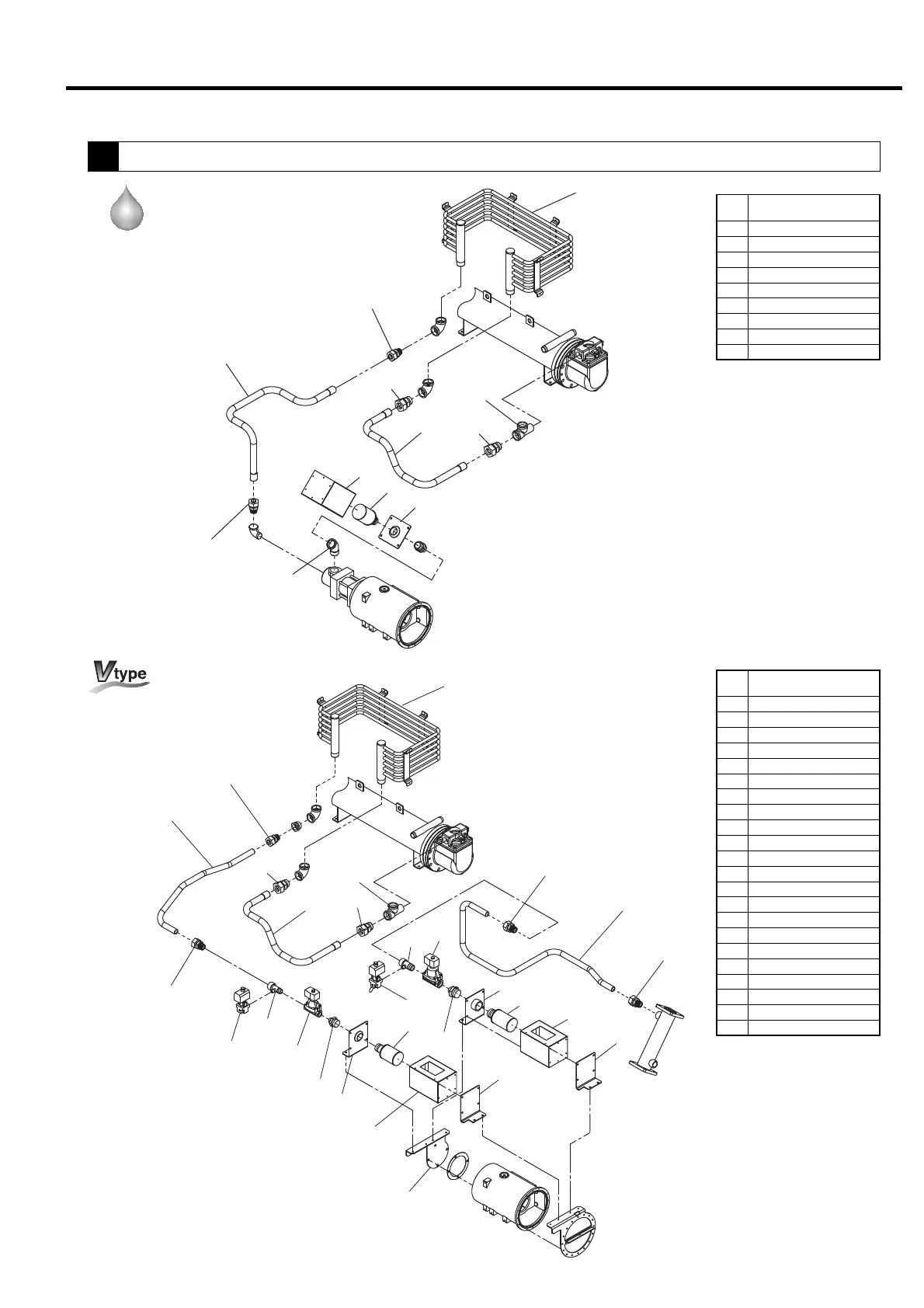

11. PARTS LIST
E94
E95
A86
E93
A86
A86
A86
901
902
900
A84
A90
Ref.
No.
Description
900 Blowoff Silencer
901 Seat, blowoff silencer
902 Cover, blowoff silencer
A84 Elbow
A86 Piping Fitting (φ35)
A90 Tee Fitting
E93 Blowoff Cooler
E94 Blowoff Air Piping (H1)
E95 Blowoff Air Piping (H2)
Water-Cooled
[Fixed speed type]
E94
E96
E95
G62
G62
G62
G62
A86
A86
D29
E68
E69
E79
E70
E34
902
901
E21
E23
E22
900
E22
A89
A87
A90
E80
E80
E93
Ref.
No.
Description
900 Blowoff Silencer (H)
901 Seat, blowoff silencer (H)
902
Cover, blowoff silencer (H)
A85 Joint, steel pipe (φ35)
A87 Nipple (H)
A89 Nipple (L)
A90 Tee Fitting
D29 Seat (L), blowoff piping
E21
Blowoff Solenoid Valve (1H)
E22
Blowoff Solenoid Valve (2)
E23 Seat (H), blowoff piping
E34 Closure Cover
E68
Blowoff Solenoid Valve (1L)
E69 Seat, blowoff silencer (L)
E70
Cover, blowoff silencer (L)
E79 Blowoff Silencer (L)
E80 Support, silencer cover
E93 Blowoff Cooler
E94 Blowoff Air Piping (H1)
E95 Blowoff Air Piping (H2)
E96 Blowoff Air Piping (L)
G62 Piping Fitting (φ28)
13
Blowoff Piping
