14
3. OPERATING PROCEDURE [Start/Stop Operation]
3.2.1 Connecting the Power

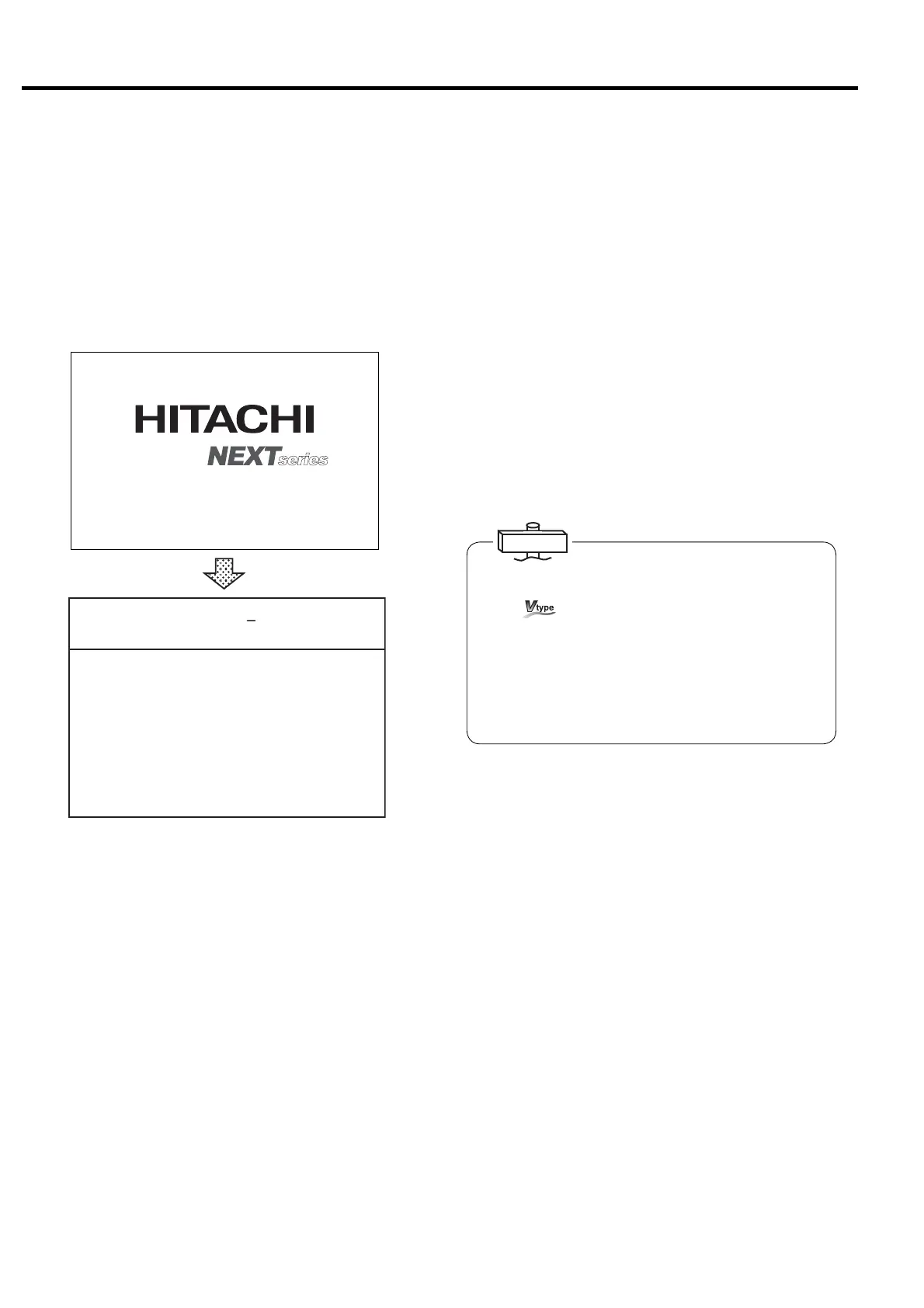

When the power is connected, the POWER light turns
ON and the following Hitachi logo display appears on
the LCD. After 5 seconds, monitoring display appears;
it shows operation type, discharge air pressure, total
operating hours, etc.
If phase is reversed, “Connection Error: Reverse
Phase” will be displayed on the LCD monitor as a
setting/connection check message. In this case,
exchange 2 out of the 3 main power cables. If the air
compressor has control transformer in the control
panel, Open Phase is indicated as Reverse Phase. So
check the power cable connection of T Phase.
In case of open phase, “Connection Error: Open
Phase” will be displayed on the LCD monitor. In this
case, check the power cables.
3.2 Start/Stop Operation
COMPRESSOR MONITOR
CONTROLLER
㻞㻜㻝㻞䠋㻜㻥䠋㻜㻝 㻝㻥䠖㻜㻞
㼀㼅㻼㻱䠖㼂㻿㻰㻭
㻰㻵㻿䠊㻼㻾㻱㻿㻿䠖 㻢㻣㼜㼟㼕
㻾㼁㻺 㻌㻴㻻㼁㻾䠖 㻝 㻞㻜䡄
㻸㻻㻭㻰 㻌 㻴㻻㼁㻾䠖 㻡 㻠䡄
㻸㻻㻭㻰 㼀 㻵 㻹㻱㻿䠖 㻝 㻞 㻟
㻸㻻㻭㻰 㻾㻭㼀㻱 䠖 㻝 㻝䠂
㻸㻻㻭㻰 㼀 㻵 㻹㻱 䠖 㻞 㻠䡏
㼁㻺㻸㻻㻭㻰 㻌 㼀 㻵 㻹㻱䠖 㻝䡏
㻯㼁㻾㻾㻱㻺㼀䠖 㻡 㻜䠝
㻲㻾㻱㻽㼁㻱㻺㻯㼅䠖 㻞㻟 㻚 㻤
䠤
䡖
㻻㼁㼀㻼㼁㼀 䠖 㻝 㻠 㻚 㻣 㻼
䠤
㻌㻌㻌㻌㻖
※ The asterisk blinks when the clock and total
running hours are active.
3.2.2 Start/Stop
When the START button is pressed, the START light
turns on and the compressor starts operating.
When the compressor starts running, the asterisk on
the right side of running hours blinks and running time
starts to be counted.
To stop the operation, press the UNLOAD STOP
button. Operation stops after 5-minute drying of air end
and air piping.
To stop the compressor immediately without
unloading, press the STOP button.
Note) If the STOP button is pressed during unloading,
the compressor stops immediately.
(1) The air compressor does not start for 10 second after
power on to secure the safety.
For
, if the START button is pressed within 10 to
15 seconds after power-on, the AUTO START light will
blink up to 10 seconds for operation preparation and
then the compressor starts running.
(2) Make sure that the door is closed before starting the
air compressor.
(3) Buttons, such as START/STOP/RESET function shall
be pressed for more than 0.3 seconds.
IMPORTANT
3.2.3 Emergency Stop
Pressing EMERGENCY STOP button, the DSP
compressor immediately stops.
This switch should only be pressed in emergency.
The compressor can not be restarted until the switch is
manually reset.
Turn the switch knob clockwise and press the RESET
button to reset.
5 seconds
