Hitachi DSP-110A6N User Manual

Oil Filling Port
Oil Level Gauge
● Indicates the operation control section.
(
3.1)
● Power ON → The Power light ON.
● Start: Press the START button. → Start light ON.
● Stop: Press the UNLOAD STOP button. →
The compressor unloads for 5 minutes and then
stops. → Start light OFF.
● Power OFF: → Power light OFF.

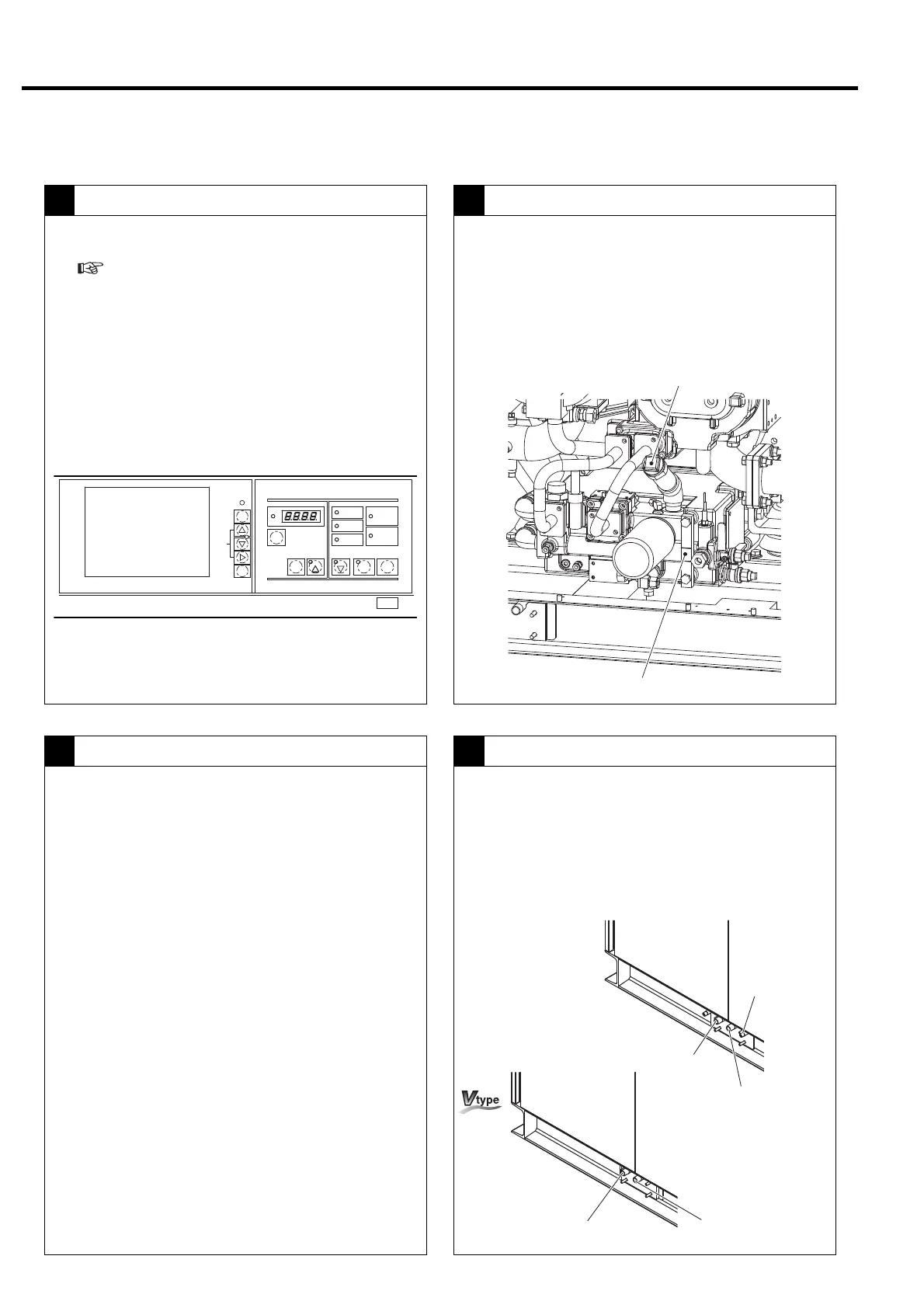

2.3 Daily Operating Components
Controls on the Instrument Panel
Aftercooler and Intercooler - Condensate Drain Valve Lubricating Oil
Oil Level Gauge
1 2
3 4
● Verify that air containing condensate is discharged
intermittently from the intercooler and aftercooler
drain ports.

The higher temperature and humidity, the more condensate
is produced. Condensate may not be produced on the
intercooler side during winter.
[Fixed speed type]
Intercooler
drain port
Aftercooler
drain port
Intercooler
drain port
Aftercooler
drain port
Control pipe filter
drain port
● Verify that the oil stays between the upper and
lower red lines of the oil level gauge during the
operation.

Oil level might be higher than upper line during air
compressor
stopping due to oil returning from the cooler
and pipings.
10
2. GENERAL DESCRIPTION [Daily Operating Components]
Oil: Use genuine Hitachi GL-68 DSP Compressor Oil.
Replace the oil every 8,000h operating hour or every
2-year, whichever comes earlier.
UP/
DOWN
＋／−
AUTO
MONITOR
MENU
SET
SELECT/WIDE
2
RUNNINGCONTROL
START
REMOTE
1
FUNC
［×10h］
ALARM
STR
REMOTE
RUNNINGMODE
AUTOSTART
POWER
LOAD
RESET
SHUTDOWN
STOP
MONITOR
UNLOAD STOP
