111

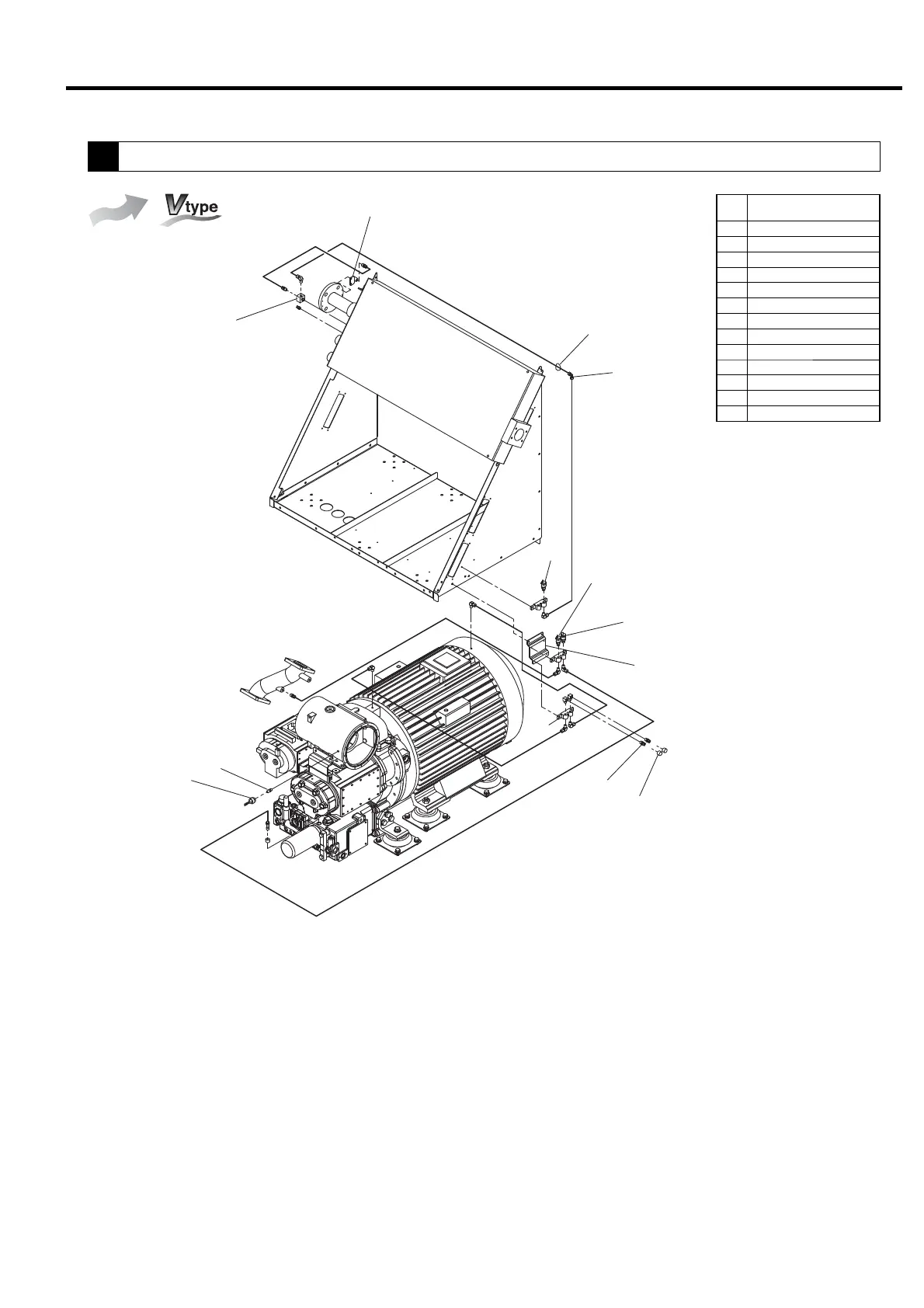

11. PARTS LIST

D26

D79

H83

898

D99

849

E40

H63

H91

H90

A96

A92

F61

Ref.

No.

Description

849

Support, pressure sensor

898

Pressure Differential Indicator

A92 Seat, sensor

A96 Elbow Union

D26

Pressure Sensor (discharge air)

D79 Filter Nipple

D99

Pressure Sensor (interstage)

E40

Seat (1), pressure detecting pipe

F61 Rubber Bush

H63

Seat (2), pressure detecting pipe

H83 Pressure Sensor (oil)

H90 Grease Cap

H91 Grease Nipple

Air-Cooled

Control Air Pipe
