Hitachi DSP-110A6N User Manual

116

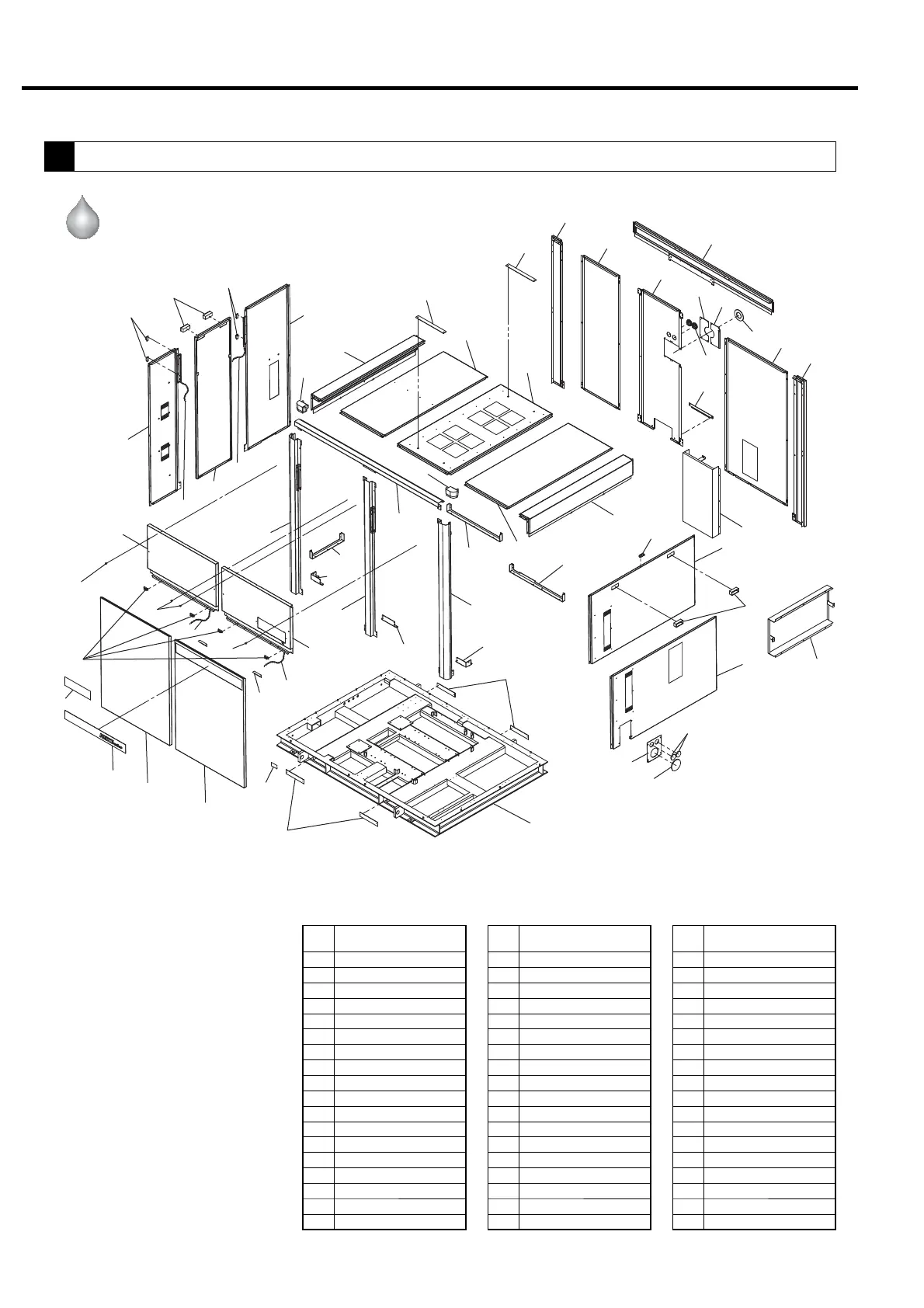

11. PARTS LIST
938
912
907
H59
951
910
D25
D25
E88
E88
D25
H70
H70
H70
D14
953
D25
905
904
A71
942
A71
945
983
982
986
941
984
981
H69
909
929
908
924
939
938
985
952
H61
H61
970
967
947
946
926
H71
911
969
D91
906
943
944
914
913
H60
914
925
H97
H98
A72
940
993
995
994
Water-Cooled
Ref.
No.
Description
904 Front Door
905 Front-Lower Panel
906 Front-Upper Panel
907 Left Panel (2)
908 Right-Upper Panel
909 Right-Lower Panel
910 Left Panel (1)
911 Rear Panel (2)
912 Left Door
913 Top Panel (1)
914 Top Panel (2)
924 Cover, power cord
925 Cover (1), piping
926 Cover (2), piping
929
Rubber Bush, control cable
938 Handle
939 Rubber Bush
940 Rubber Bush
Ref.
No.
Description
941 Top Frame
942 Common Base
943 Left-Corner Frame
944 Front Frame
945 Right-Corner Frame
946 Rear-Upper Frame
947 Rear-Center Frame
951 Left-Upper Frame
952 Right-Upper Frame
953 Instrument Panel
967 Rear Panel (1)
969 Right Frame
970 Left Frame
981 Support, Cover (1)
982 Support, Cover (2)
983 Support, Cover (3)
984 Support, Cover (4)
985 Support, Cover (5)
Ref.
No.
Description
986 Support, Cover (6)
993 Support
994 Duct (3), ventilating fan
995 Duct (4), ventilating fan
A71 Fork Slot Cover
A72 Weste Oil Cover
D14 Magnet
D25 Chain
D91 Cover
E88 Magnet
H59 Left-Corner Cap
H60 Right-Corner Cap
H61 Seal Plate
H69 Support
H70 M6 Exterior Screw
H71 Magnet Rubber (1)
H97 Name plate for model
H98 Name plate for NEXT
15
Enclosure (1)

Hitachi DSP-110A6N Specifications

General

Brand	Hitachi
Model	DSP-110A6N
Category	Air Compressor
Language	English
