Hitachi DSP-110A6N User Manual

Water-Cooled
DSP- 90/110W6N
90/110VW6N

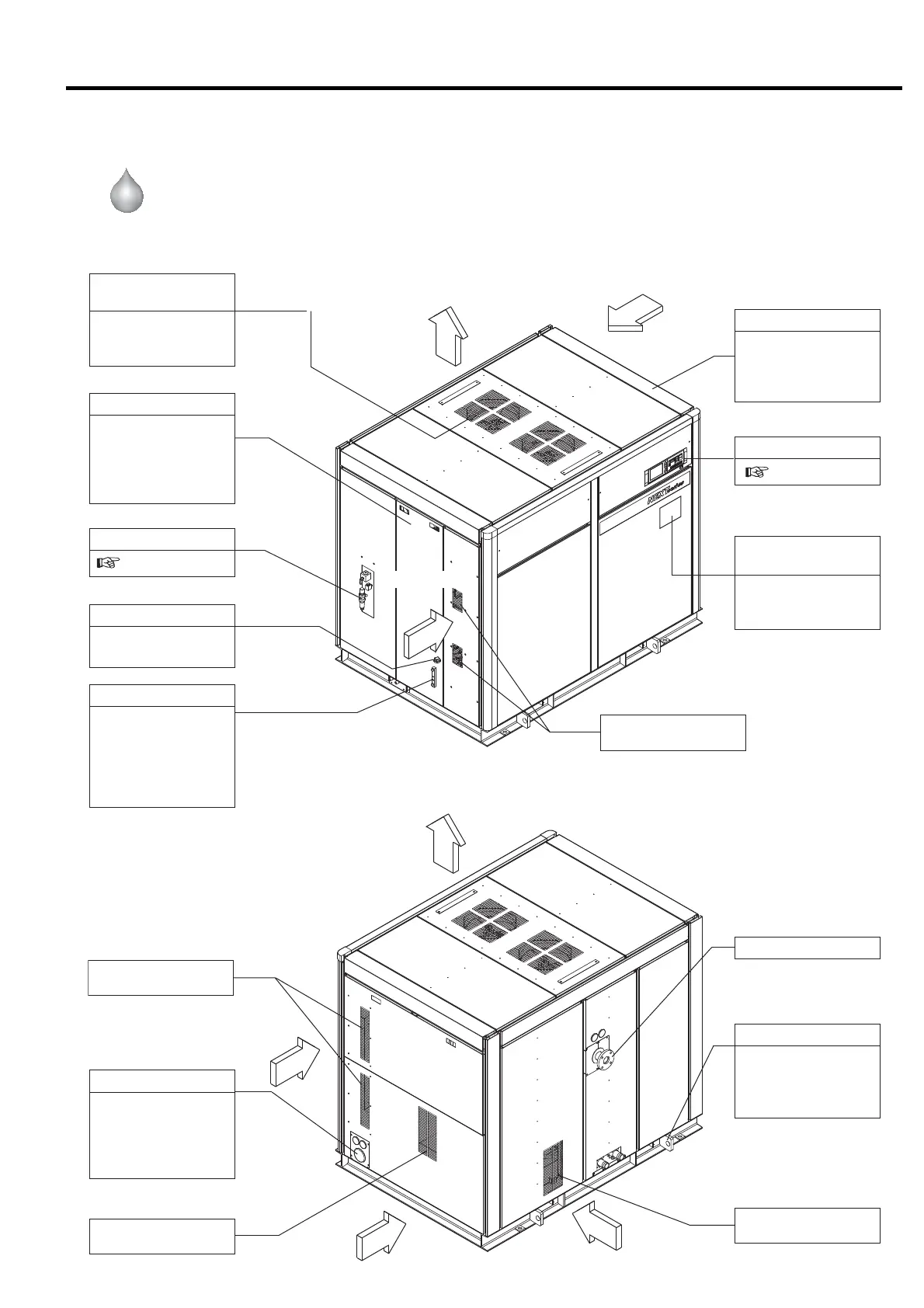

[Front View]
[Rear View]
7
2. GENERAL DESCRIPTION [Appearance]
Enclosure
Oil Filling Port
Air Intake
(Inlet to the Air End)
Oil Level Gauge
OMR
Sling Fitting
Instrument Panel
Left Door
Plate of Operating /
Servicing Instructions
Air Exhaust
(Air Compressor Package)
Compressed Air Discharge
Power Supply Port
Air Intake
(Air Compressor Package)
Air Exhaust
Air Intake
Enclosure panels
lower the sound level
of the air compressor
package.
Use the port to fill the
gear case with oil.
This indicates the
quantity of the oil in
the gear case. Check
the oil level before
starting the DSP and
when operating it.
Use the sling fitting
when moving and
installing the DSP air
compressor.
3.1
Read carefully the
plate before operating
and servicing the DSP.
Open the left door
only when servicing
the DSP air compres-
sor. Keep it closed
when operating the
DSP air compressor.
8.5 for the details
This panel discharges
the hot air generated
in the air compressor.
Check the specifica-
tions, power supply
and voltage before
connecting the power
supply.
Air Exhaust
Air Intake
Air Intake
Air Intake
Air Intake
Air Intake
(Air for inverter)
Air Intake
(Air for Package)
