HKC Quantum70 Installation Manual

RF-PIR - Continued

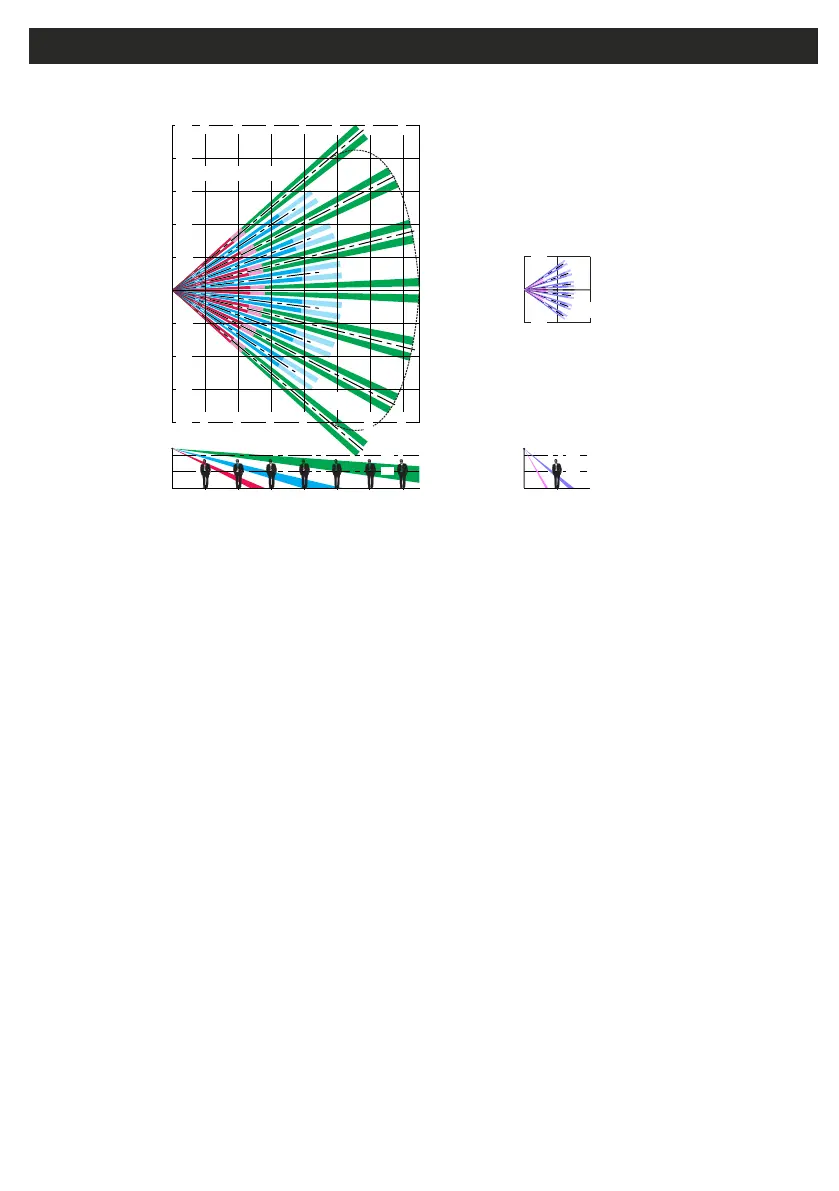

Range of Detection
Specifications
2m
2m
2.4m 2.4m
2m
4m
6m 8m
10m
14m
2m
4m
6m
8m
2m
4m
6m
8m
Vertical Coverage
Vertical Coverage
Horizontal Coverage
12m
1m
1m
2m
4m 6m 8m
10m 12m 14m
10m
2m
2m
4m
(close-in detection)
(close-in detection)
Horizontal Coverage
Note: mount the unit 2.4m from the ground
Current Consumption
Battery Life
Range
Frequency
Temperature
Mounting Height
Weight
Dimensions
EN 50131-2-2
3Vdc nom. • 1400mAh • size 2/3A
Standby: 8µA
Transmit: 40mA (peak)
Typically >4 years
868Mhz
2.4m
-10°C to +40°C
W=64mm H= 117mm D = 53mm
155g (including battery)
Grade 2 Class II
Line-of-sight > 400m
Battery
Default Eng. Code - 4567 Default User Code - 1111 (Irl) 1234 (UK)
