RF-PIRCAM - Continued
2 Wired Devices Menu
1 RF Devices Menu
• To remove an RF-PIRCAM go to the Devices Menu in engineer mode and follow menu path below.
• You will automatically be brought to either zone 1 or the first point (P50)
• Go to the zone or point you want to remove and press
1 Remove:RF Zones
2 Remove:RF Points
1 Add & ID RF Devices
2 Locate RF Devices
3 Remove RF Devices
REC
YES
Note: mount the unit 2.4m from the ground
2m
2m
2.4m 2.4m
2m
4m
6m
8m
10m
14m
2m
4m
6m
8m
2m
4m
6m
8m
Vertical Coverage
Vertical Coverage
Horizontal Coverage
12m
1m
1m
2m
4m
6m
8m
10m
12m
14m
10m
2m
2m
4m
(close-in detection)
(close-in detection)
Horizontal Coverage
User warning: Do not partially or completely obscure the detector’s field of view.
!

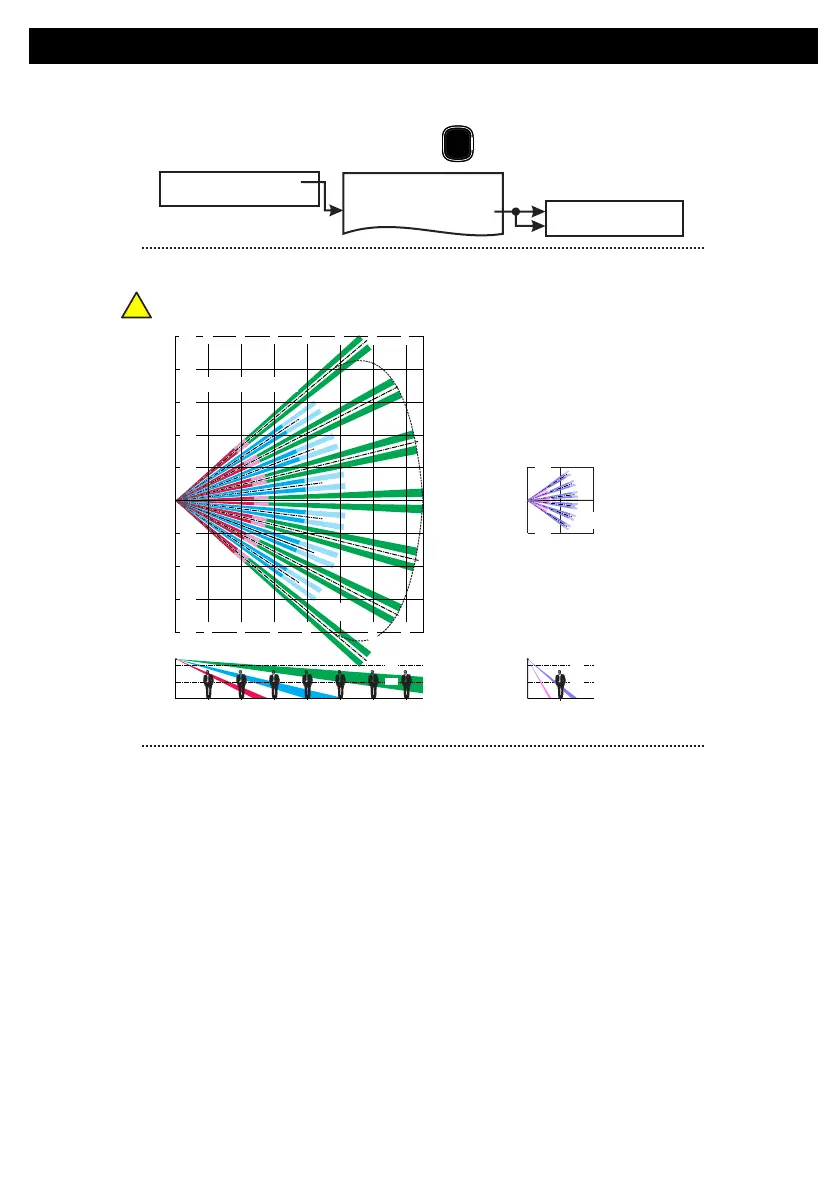

Range of Detection
Specifications
PIR Current Consumption
Camera Current Consumption
Battery Life
Camera
Radio Range
Frequency
Temperature
Mounting Height
Weight
Dimensions
Two Lithium 3Vdc (nom.) 1,400mAh
Standby: 8µA
Transmit: 55mA (peak)
Standby: 5µA
Active: 500mA (peak)
Typically up to 3 years
Full colour VGA
868Mhz
2.4m
-10°C to +40°C
W=64mm H= 136mm D = 53mm
210g (including batteries)
Grade 2 Class II
Line-of-sight > 400m
Battery
EN 50131-2-2
