3.7.4 Balancing system parameters

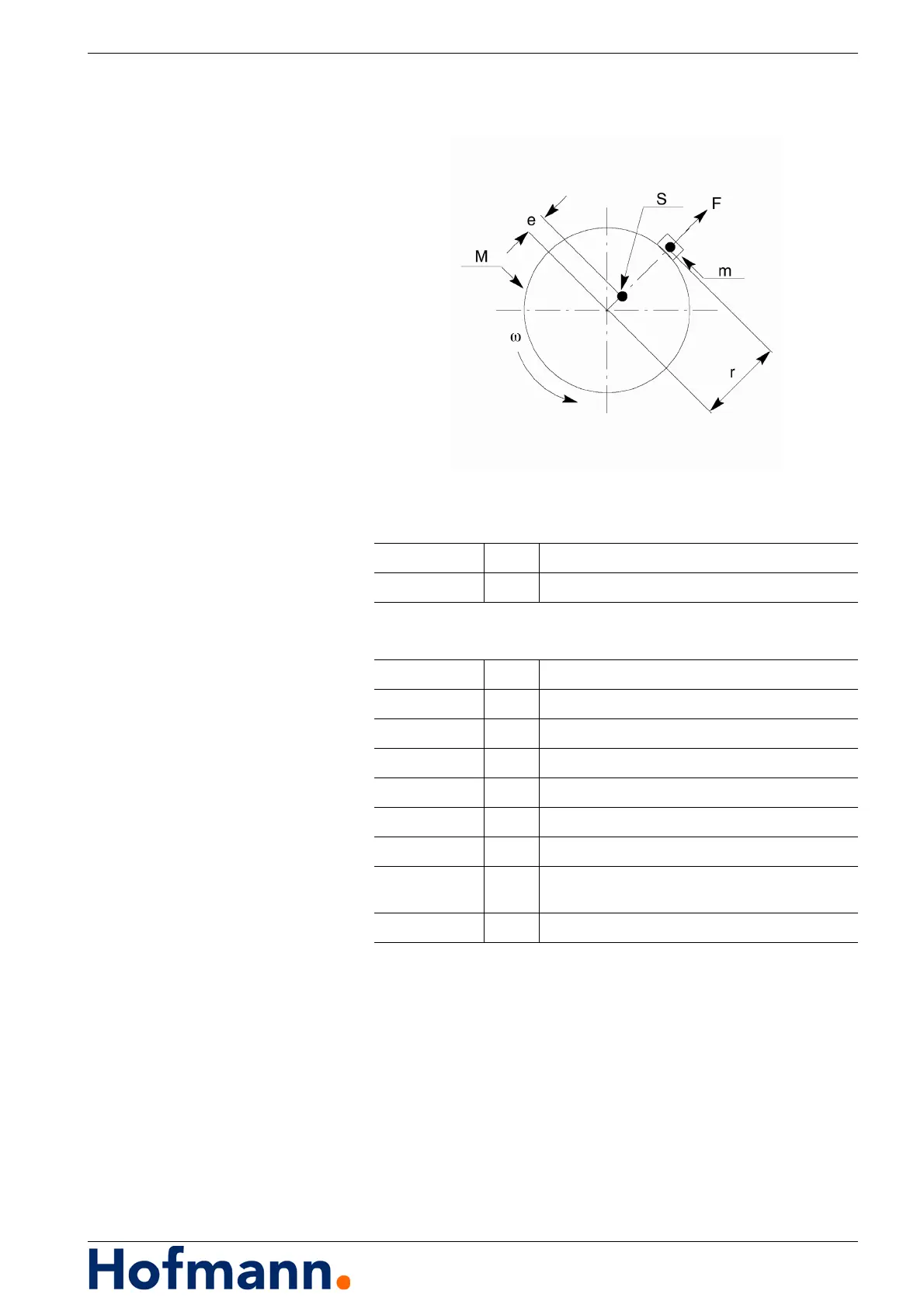

Fig. 3-6: Balancing system parameters
U = M * e or U = m * r
F = U *
2
= 2 * * n/60, n in [rpm]
e = Centre of gravity eccentricity
F = Centrifugal force
M = Rotor mass
m = Unbalanced mass
S = Centre of gravity of rotor mass
U = Unbalance
= Angular velocity
r=
Distance of the centre of gravity of
the unbalanced mass to the rotation axis
n = Speed
