10.1 Performing vibration measurements
Select measurement locations close to the bearing points.
Vibration sensors may be mounted in any direction on the bear-
ing or machine housing. Do not place sensors on elastic parts
(e.g. covers), as measured values will be falsified.
For machines with a horizontal axis, measurements are usually
taken in horizontal and vertical directions.

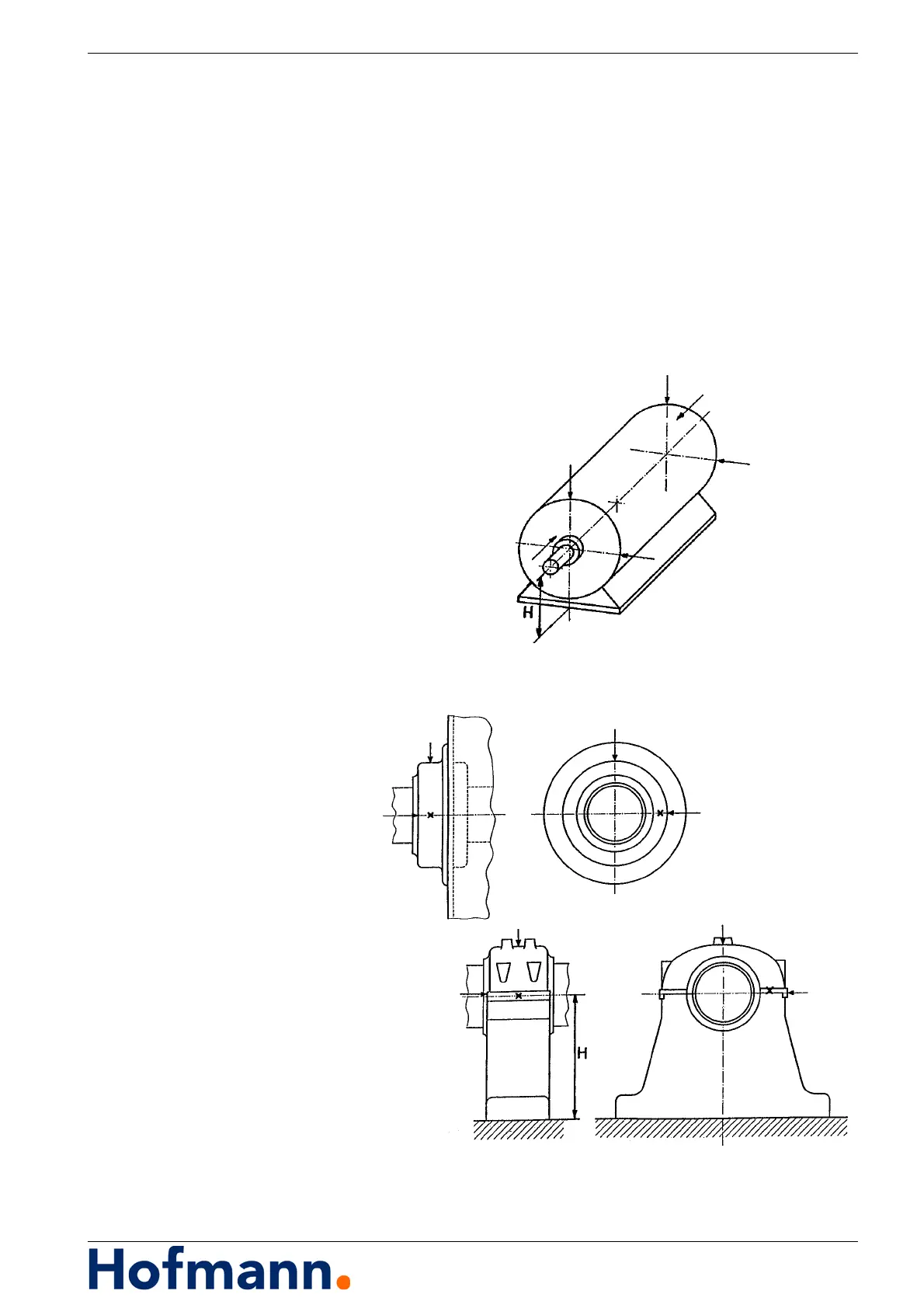

Fig. 10-14:
Measuring locations and directions for horizontal machine axis as per [7]
Fig. 10-15: Measuring locations and directions on a bearing housing
or pedestal as per [7]
