3.7.5 Direction of rotation and angular position
for unbalance correction
 Depending on the setting of the counting direction,
the degrees can be set against the direction of rotation
or in the direction of rotation of the rotor.

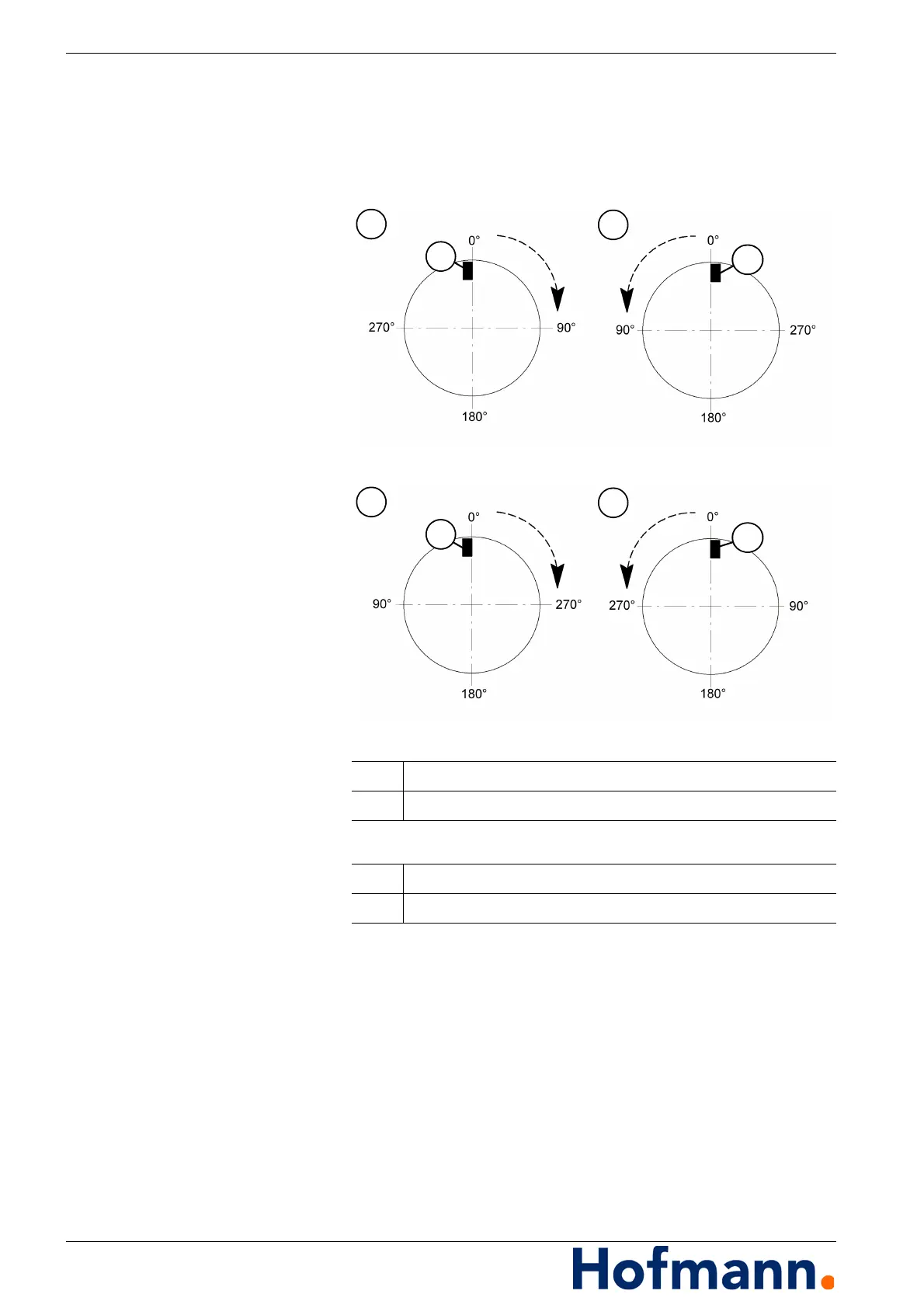

Fig. 3-7: Angle counting direction in direction of rotation
Fig. 3-8: Angle counting direction against direction of rotation
A Clockwise rotation
1 Scanning mark
B Anticlockwise rotation
1 Scanning mark
A
B
1
1
A
B
1
1
