Operation - Balancing EasyBalancer EB 3500
5 - 8

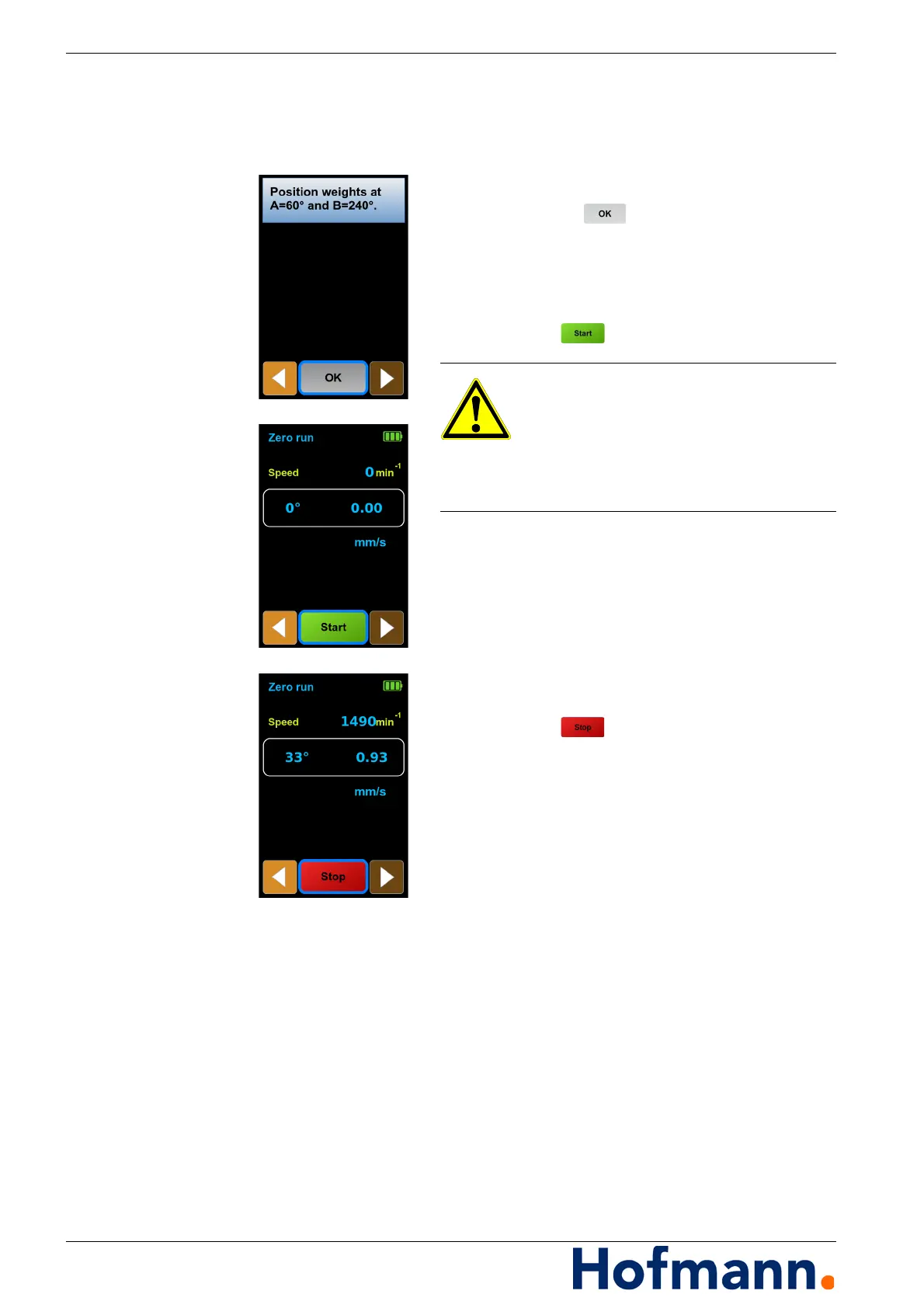

Zero run Position weights A and B at the specified an-
gles A = 60° and B = 240°.
The two weights are now in a neutral position.
Confirm with .
Starting a zero run
Switch on the machine and wait until the final
speed is reached.
Press the button.
The measurement starts.
The current speed appears on the display,
e.g. “n=1490” in rpm, the relative angular posi-
tion, e.g. “33°” and the vibration amplitude,
e.g. “0.93” in the selected physical unit: mm/s.
Wait until the measured value display is stable.
Stopping a zero run
Press the button (2).
The measurement ends.
Switch off the machine.
Risk of injury
When subsequently fixing the sliding
weights, make sure that they do not
come loose during rotation. Close the
protective devices on the machine.
