Automatic start/stop
Semiautomatic start/stop
Manual
+
Autoscan modes - used when performing a full slide review
The stage moves automatically
in discrete, overlapping fi elds of
view. The degree of overlap from
row to row and the speed of stage
movement are user-adjustable.
The user may pause and resume
stage motion.
The user prompts the stage to
advance to the next fi eld of view.
The degree of overlap from row
to row and the speed of stage
movement are user-adjustable.
The user manually moves the
stage within each row using the
stage control knob. The degree
of overlap from row to row is
user-adjustable. The stage moves
automatically between rows. No
speed setting is necessary.
AW-18070-001 Rev. 001
Refer to the ThinPrep
®
Integrated Imager operator’s manual for full operating instructions,
including any warnings, contraindications and safety information.
Hologic, Inc. • 250 Campus Drive • Marlborough, MA 01752 USA
1-800-442-9892 • 1-508-263-2900 • www.hologic.com
Review Controls
Previous
(roll back)
Next
(roll forward)
Mark
(press)
Touch Screen (example)Review Control with Scroll Wheel

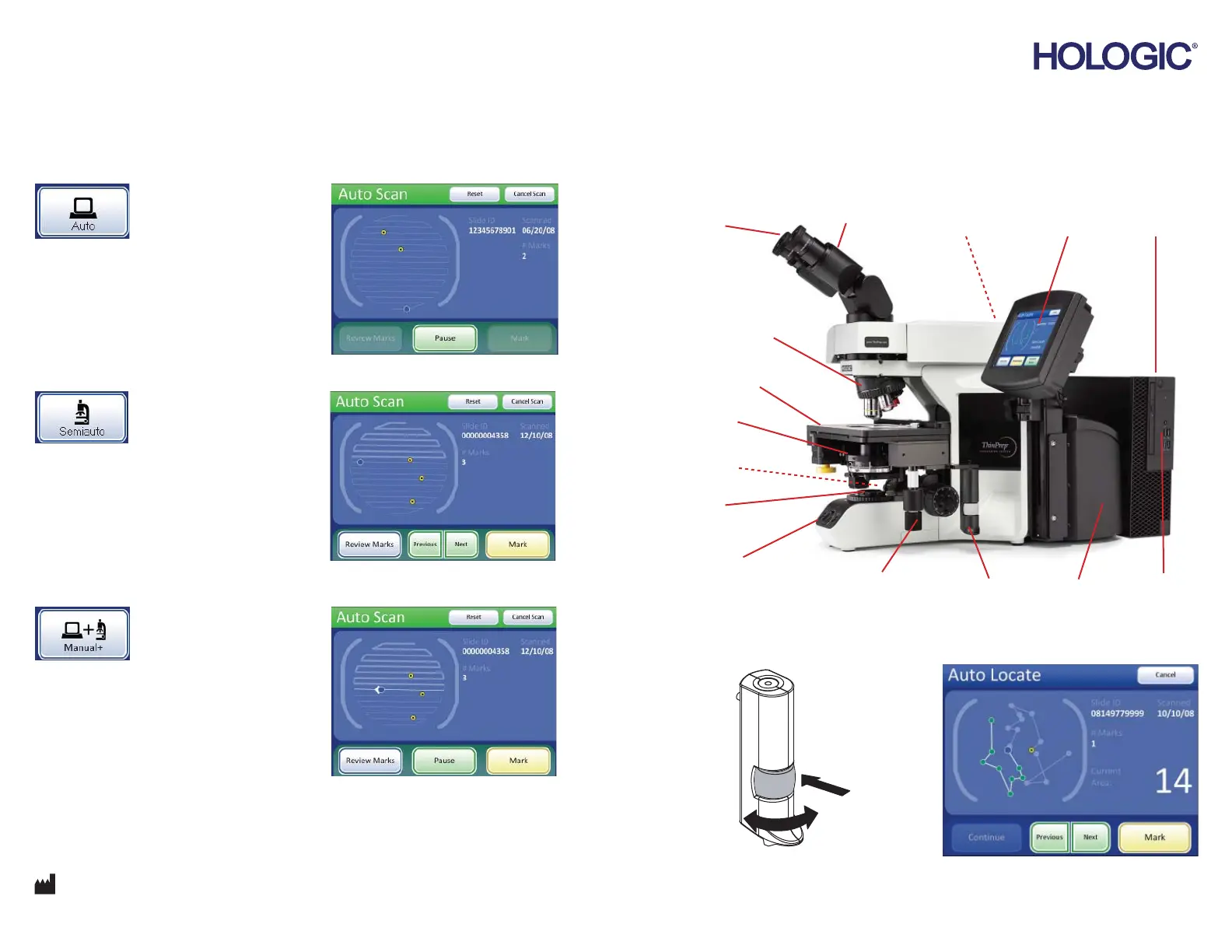

ThinPrep
®
Integrated Imager Quick Reference Guide
Integrated Imager Components
Eyepieces
Binocular Tube
Microscope
Power Switch
(on left side)
Touch Screen
Interface
Computer
Revolving Nosepiece
(4X, 10X, 40X, plus
position sensor)
Motorized Stage
Light Intensity
Adjustment
Knob
Review Control Controller
Collector
Condenser
(under stage)
Computer
Power Switch
X, Y Axis Stage Control Knobs
(Stage Control Knobs)
Coarse/Fine
Focus Knob
(on left side)
