USER INTERFACE
3.42
ThinPrep
®
Integrated Imager Operator’s Manual
Reset to Default

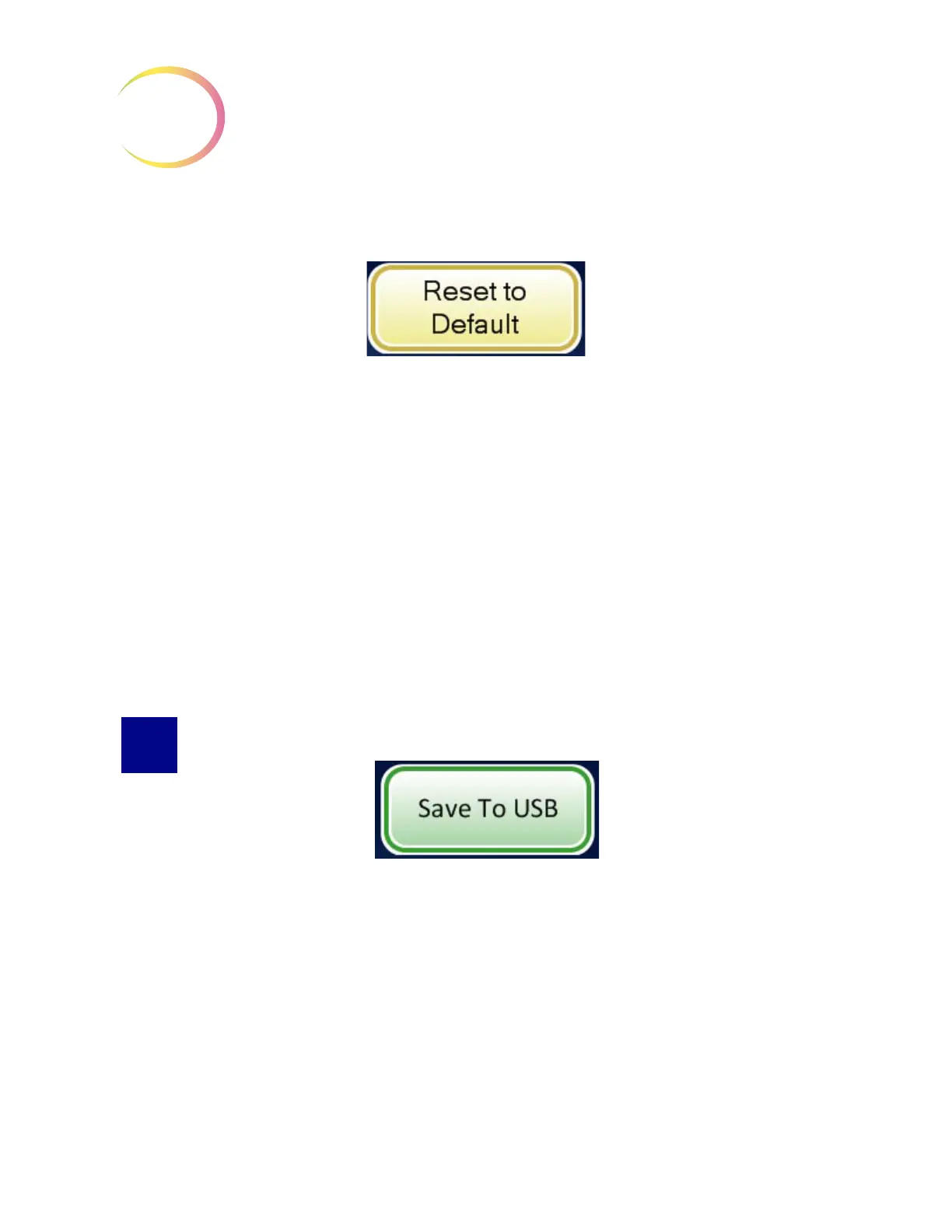

Figure 3-64 Reset to Default Button
User preferences may be reset to the factory defaults by pressing the
Reset to Default
button. System
defaults are:
• Direction - left/right
• Overlap - minimum
• Auto Scan type - Auto Start/Stop
• Auto Locate speed - 90% (of stage movement capability)
• Stage speed between fields of view - 50%
• Time spent at each field of view - 50%
• Sound - 50% of beep volume
• Mark Indicator - blink
SAVE TO USB
Figure 3-65 Save to USB Button
Any of the modules that report some kind of database query offer a
Save to USB
function, in order to
download the report to a USB key, if desired. These are:
• User Accounts
• System Events
• Usage Summary
• Slide Search
The Integrated Imager has two USB ports available for use. Either may be used. (See Figure 3-66.)
