INTRODUCTION
1.8
ThinPrep
®
Integrated Imager Operator’s Manual
ThinPrep
®
Microscope Slide for Use with the Imaging System
The ThinPrep microscope slide is used by the ThinPrep Processor in preparing the patient slide. The
slide utilizes fiducial marks, or fixed reference points, which are permanently printed features on the
slide that are used to register the slide position on the stage. A coordinate system is based on the
fiducial marks, for locating objects of interest on the cell spot.

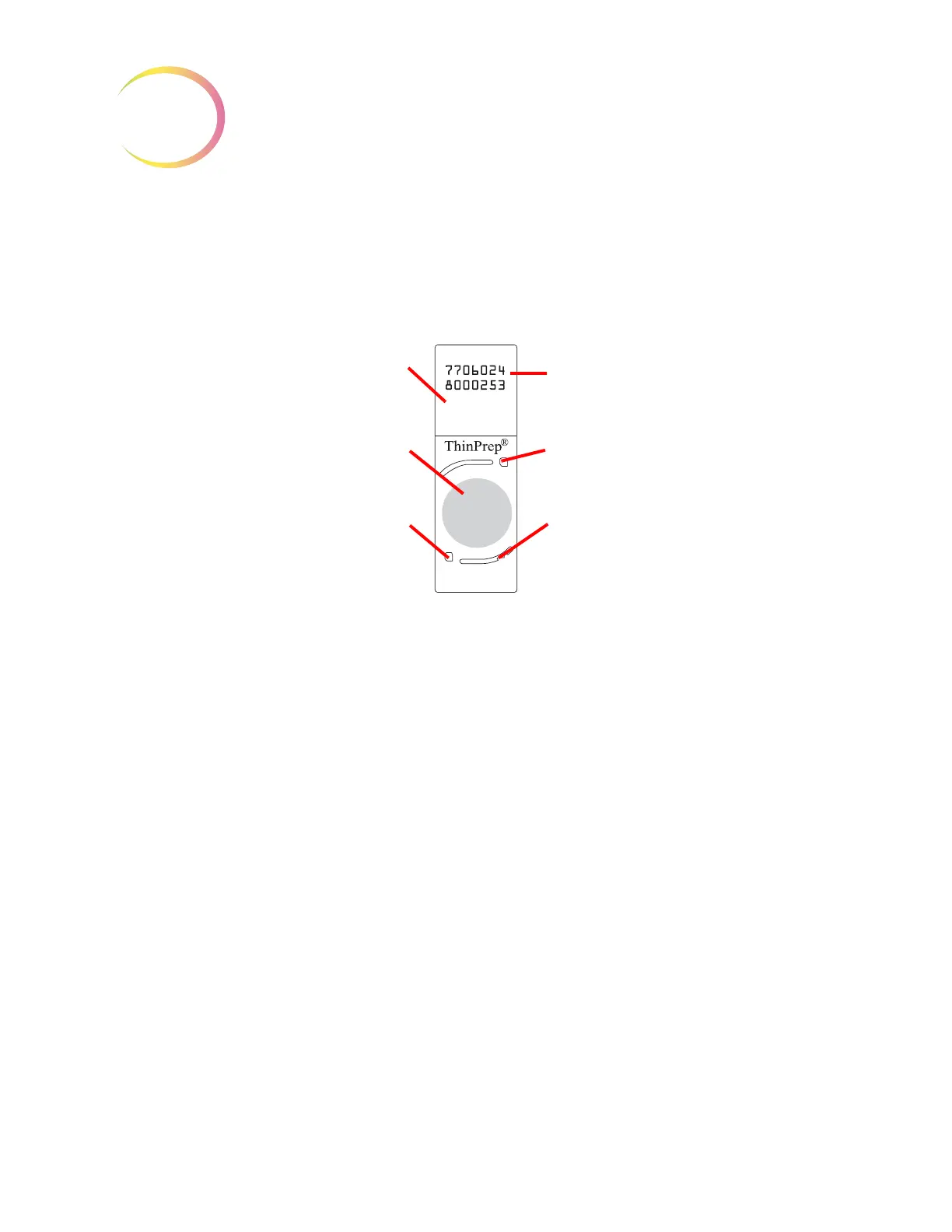

Figure 1-6 ThinPrep Microscope Slide
Weight
The Integrated Imager system - including the microscope, controller, computer and all cabling
weighs approximately 32
kg (70 lbs.).
Environmental
Operating temperature range
16°C to 32°C (60°F to 90°F)
Non-operating temperature range
-29°C to 50°C (-20°F to 122°F)
Operating humidity range
20% to 80% relative humidity, non-condensing
Non-operating humidity range
15% to 95% relative humidity, non-condensing
Pollution Degree II, in accordance with IEC 61010-1
Category II. The Integrated Imager is for indoor use only in an office or a clean laboratory
environment.
Altitude
0 meters (sea level) to 2000 meters
Slide Accession ID
(OCR format shown)
Fiducial mark
Fiducial mark
Frosted portion of the slide
Cell spot - contains patient
sample cells
Fiducial mark
