CONTROLS (R type)

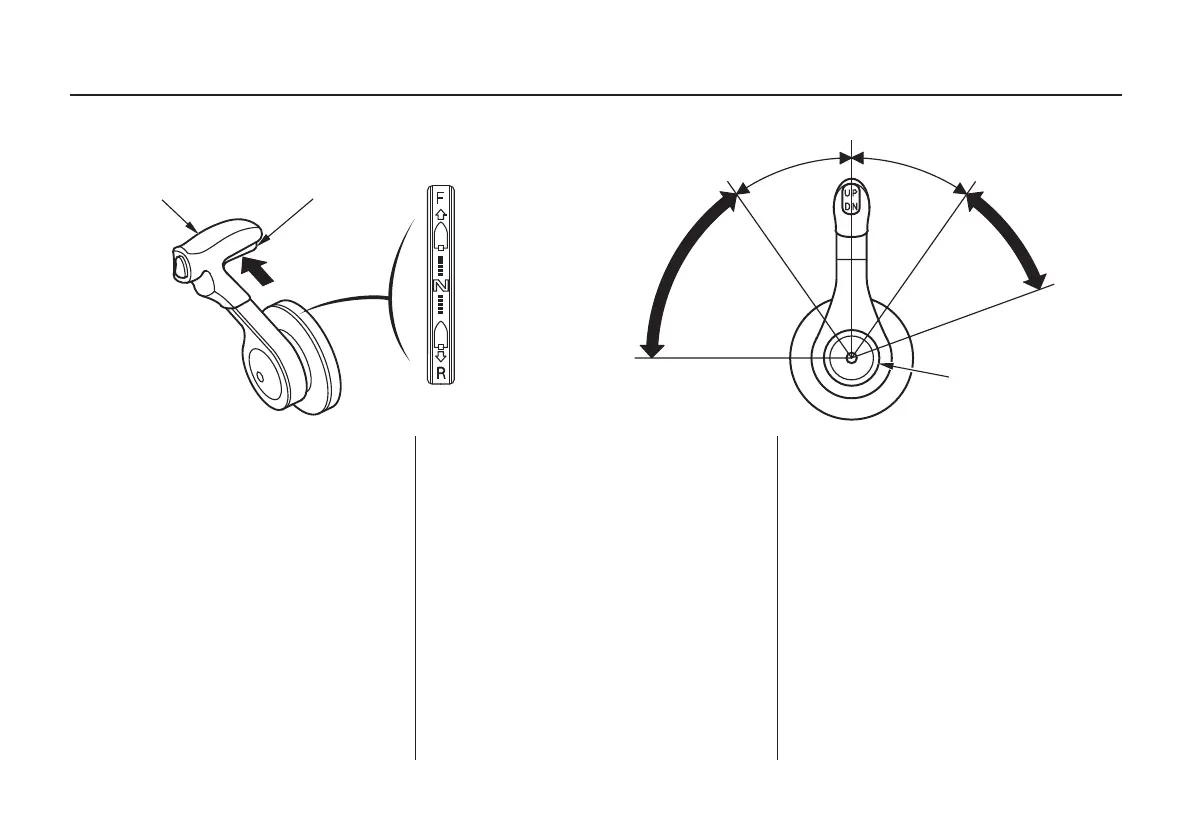

Remote Control Lever (R2 type)
NEUTRAL
FORWARD
REVERSE
NEUTRAL
RELEASE LEVER
N (NEUTRAL)
SHIFT SHIFT
35° 35°
REVERSE
FORWARD
MMIINNIIMMUUMM MMIINNIIMMUUMM
MAXIMUM
MAXIMUM
REMOTE
CONTROL LEVER
REMOTE
CONTROL LEVER
TTHHRROOTTTTLLEE
OOPPEENNIINNGG
TTHHRROOTTTTLLEE
OOPPEENNIINNGG
Shifting gear into forward, reverse,
or neutral and the engine speed
adjustment can be performed with
the remote control lever.
FORWARD: REVERSE:
It is necessary to pull up the neutral
release lever to operate the remote
control lever.
Moving the lever to the FORWARD
position (i.e. approximately 35° from
the NEUTRAL position) engages the
gear into forward. Moving the lever
further from the FORWARD
position will increase the throttle
opening and the boat forward speed.
Moving the lever to the REVERSE
position (i.e. approximately 35° from
the NEUTRAL position) engages the
gear into reverse. Moving the lever
further from the REVERSE position
will increase the throttle opening and
the boat reverse speed.
Engine power is cut off from the
propeller.
NEUTRAL:
