Honda BF75A - Engine Cover Fixing Lever; Transom Angle Adjusting Rod; Fuel Filler Cap (Equipped Type)

36

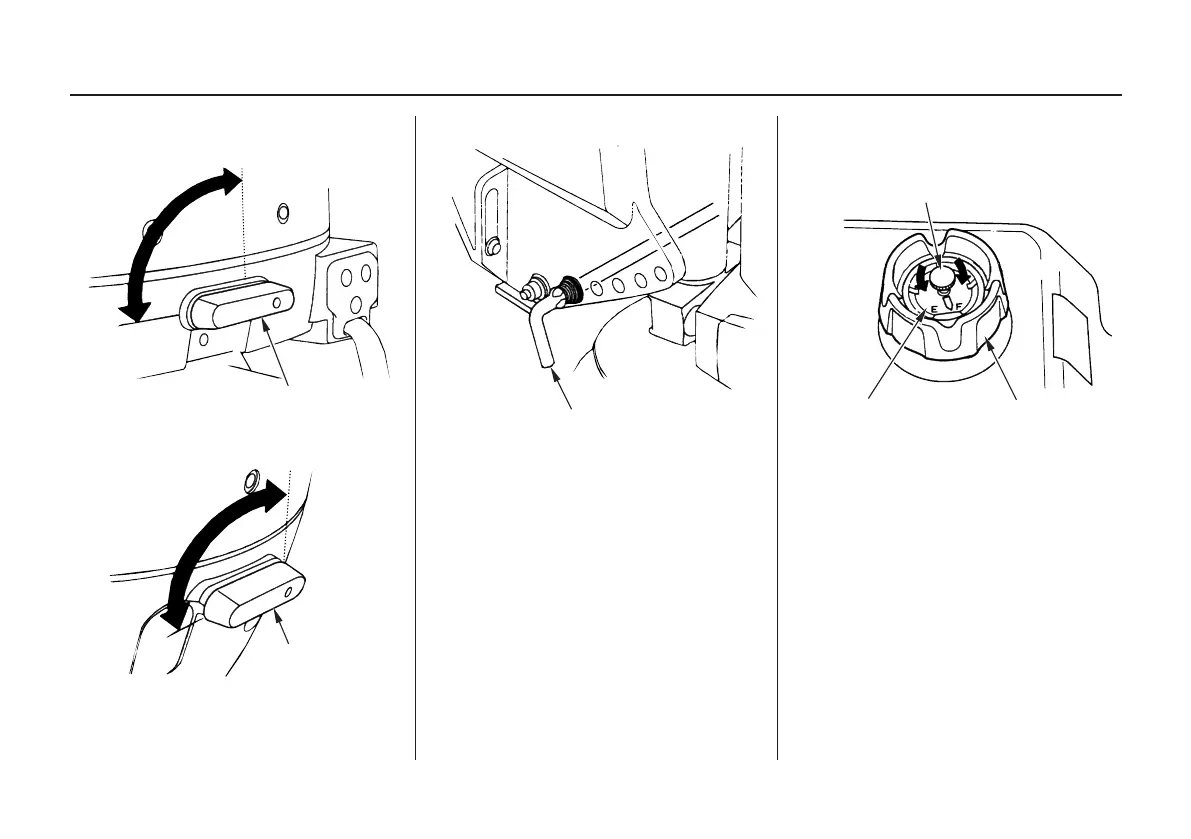

Engine Cover Fixing Lever Transom Angle Adjusting Rod Fuel Filler Cap (equipped type)
(with vent knob and Fuel Gauge)
CONTROLS
(Common)
REAR
FRONT
LLOOCCKK
LLOOCCKK
FUE
L GAUGE
VENT KNOB
OOPPEENN
CCLLOOSSEE
UNL
OCK
UNLOCK
ENGINE COVER
FIXING LEVER
ENGINE COVER
FIXING LEVER
FUEL FILLER CAP
TRANSOM ANGLE ADJUSTING ROD
Lock/unlock the engine cover fixing
lever to install or remove the engine
cover.
Use the transom angle adjusting rod
to adjust the motor angle properly.
The motor angle can be adjusted to
the five angles by changing the
adjusting rod position.
The fuel cap vent knob controls air
entering and leaving the fuel tank.
Turn the vent knob clockwise and
close it securely before transporting
or storing the fuel tank.
When refilling the fuel tank, turn the
vent knob counterclockwise to open
and remove the fuel filler cap.
The fuel gauge is part of the fuel
filler cap, and indicates the fuel level
in the tank.
