Honda BF75A - Cruising (H Type); (R Type)

84
Cruising
(R1 type)
(R3 type)
(R2 type)

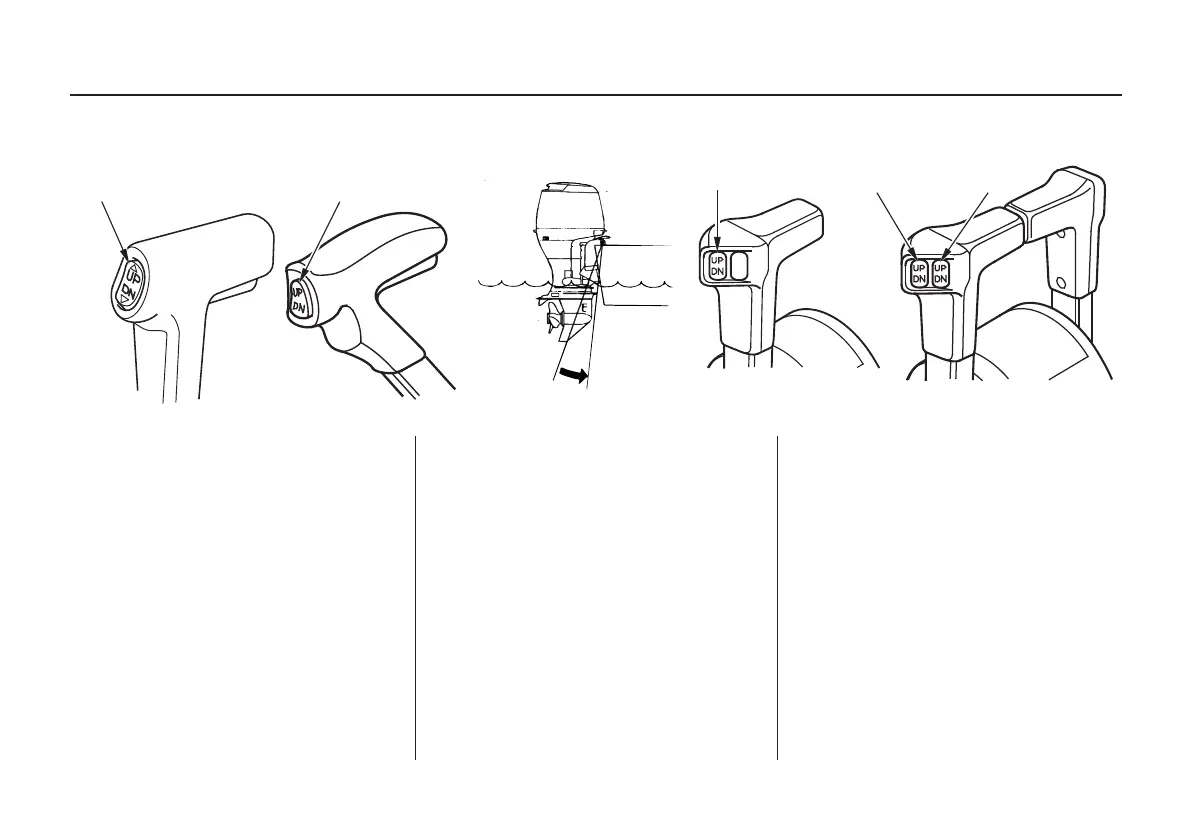

OPERATION(Rtype)
POWER TRIM/
TILT SWITCH
POWER TRIM/
TILT SWITCH
(single type)
LOWERMOST POSITION
POWER TRIM/TILT SWITCH
(LEFT) (RIGHT)
POWER TRIM/TILT
SWITCH
(dual type)
Press on the DN (down) of the
power trim/tilt switch and trim the
motor at the lowermost position.
When the two outboard motors are
mounted:
Press the DN (down) of the
power trim/tilt switch on the
control lever side and trim the
outboard motors at the
lowermost position.
With the outboard motors
trimmed at the lowermost
position, adjust the trim angle of
the right and left outboard
motors using the switch on the
control lever side separately.
1.
1.
1)
2)R3 type:
