CONTROLS (Common)

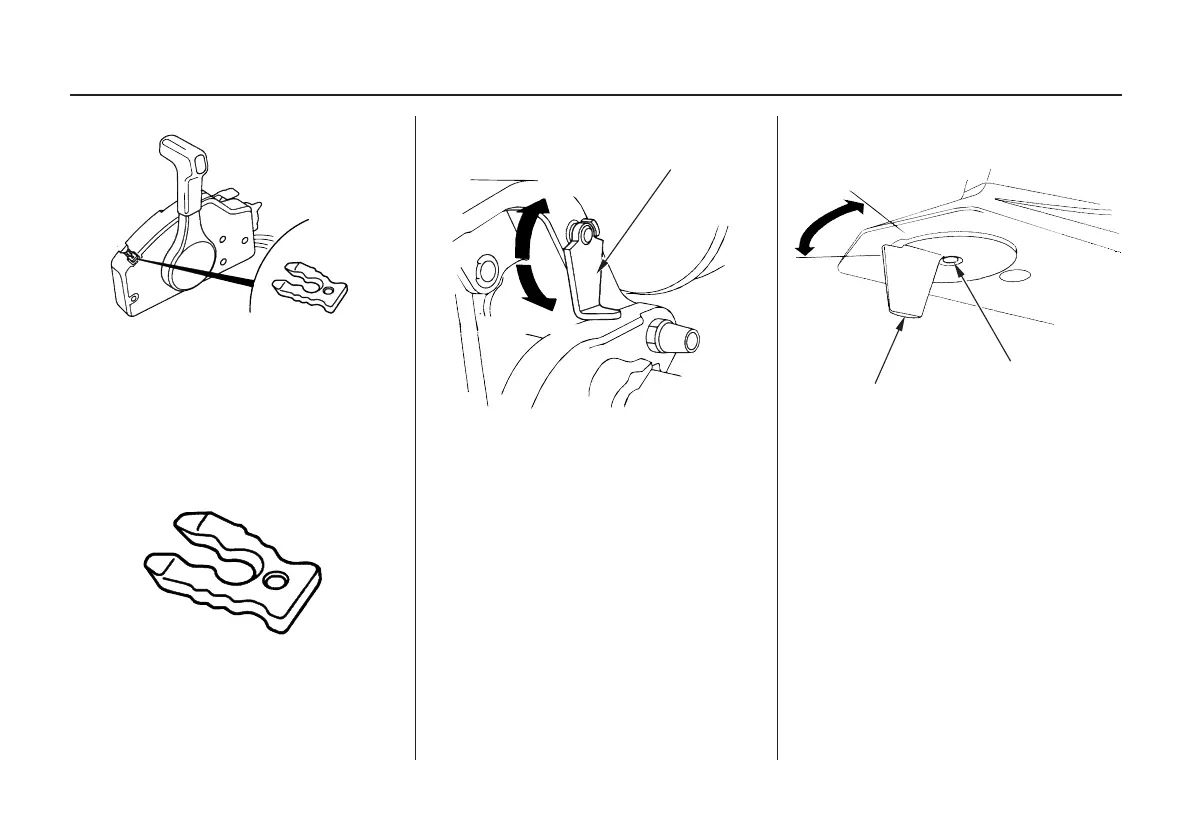

Trim TabTilt Lock Lever
(R2, R3 type)
(R1 type)
SPARE EMERGENCY
STOP SWITCH CLIP
TILT LOCK LEVER
TIGHTENING BOLT
TRIM TAB
FREE
LOCK
SPARE EMERGENCY
STOP SWITCH CLIP
If the steering wheel/handle is pulled
to the side while running at full speed,
adjust the trim tab so that the boat
runs straight ahead.
Loosen the tightening bolt and turn
the trim tab right or left to adjust.
A spare emergency stop switch clip is
provided on the remote control box.
A spare emergency stop switch clip is
provided in the tool bag.
Use the tilt lock lever to raise the
motor and lock it in the position
when the boat is moored or anchored
for a long time.
Tilt the motor as far as it goes and
move the lock lever in the locking
direction.
